# 概述

SpringCloud是一系列框架的有序集合，是一套简单易懂，易部署和易维护的分布式系统开发工具包。
将各家公司开发的比较成熟，经得起实际考验的服务框架组合起来，简化了分布式系统基础设施的开发。

# 组成

对现有成熟框架SpringBoot化的封装和抽象
一部分分布式系统的基础设施的实现

# 发展历程

微服务概念源于2014年3月Martin Fowler写的文章《Microservices》。
SpringCloud通过BOM(Bill of Materials)来管理每个版本的项目清单，为了避免与子项目发布号混淆，通过命名的方式进行版本管理，命名采用了伦敦地铁站的名称;

# 版本管理

采用伦敦地铁站命名，首字母越靠后，表示版本号越大

# 版本发布说明

BUILD-XXX: 开发版，开发团队内部使用，不稳定
GA: 稳定版,基本上可以使用
PRE(M1、M2): 里程碑版,修复了一些BUG的版本，一个GA后，通常有多个里程碑版
RC: 候选发布版，最终版的发行观察期，只修复比较严重的BUG
SR: 正式发布版

# 版本历程

版本号	发行时间	SpringCloud基础设施版本	springBoot版本
Angel.SR5	2016.01	1.0.4.RELEASE	1.2.8.REASE
Brixton.RELEASE	2016.05	1.1.0.RELEASE	1.3.4.RELEASE
Camden.RELEASE	2016.09	1.1.3.RELEASE	1.3.7.RELEASE
Dalston.RELEASE	2017.04	1.2.0.RELEASE	1.5.2.RELEASE
Edgware.RELEASE	2017.11	1.3.0.RELEASE	------
Finchley.RELEASE	2018.06	2.0.0.RELEASE	------
Greenwich.RELEASE	2019.01	2.1.0.RELEASE	------
Hoxton.RELEASE	2019.11	2.2.0.RELEASE	2.2.1.RELEASE
2020.0.0	2020.12	3.0.0	2.4.1
2021.0.0	2021.12	3.1.0	2.6.1

# 源码

springCloud采用了类似springBoot的依赖设计。SpringCloud环境，可以通过基座来分别构建。分别为:

spring-cloud-context模块
spring-cloud-commons模块本质上springCloud可以看作对SpringBoot的深度定制化

# 配置中心

# 原理

# 从springBoot说起

public class SpringApplication {

    public ConfigurableApplicationContext run(String... args) {
        //xxx: 省略其它抽象...
     	ConfigurableEnvironment environment = prepareEnvironment(listeners, bootstrapContext, applicationArguments);
        //xxx: 省略其它抽象...
    }

    private ConfigurableEnvironment prepareEnvironment(SpringApplicationRunListeners listeners,
			DefaultBootstrapContext bootstrapContext, ApplicationArguments applicationArguments) {

        //xxx: 省略其它抽象...

        /*xxx: 获取或创建环境 */
        ConfigurableEnvironment environment = getOrCreateEnvironment();

        /*xxx: 通知环境已经准备完成*/
        listeners.environmentPrepared(bootstrapContext, environment);

		//xxx: 省略其它抽象...

        return environment;
    }

}

public
 class SpringApplicationRunListeners {
  	   private final List<SpringApplicationRunListener> listeners;

     void environmentPrepared(ConfigurableBootstrapContext bootstrapContext, ConfigurableEnvironment environment) {
         //xxx: 委托 Listeners执行
     }

 }

/*xxx: springBoot默认情况下，仅提供了 一个监听器进行注册， EventPublishingRunListener*/
	/*xxx: 该接口为 run方法提供了各个阶段的监听事件处理功能 */
public interface SpringApplicationRunListener {

    /*xxx: 当environment准备完成，在 ApplicationContext创建之前，该方法被调用*/
	default void environmentPrepared(ConfigurableBootstrapContext bootstrapContext,
                                     ConfigurableEnvironment environment) {
		environmentPrepared(environment);
	}

    @Deprecated
	default void environmentPrepared(ConfigurableEnvironment environment) {
	}
}

/*xxx: 是 springBoot针对 SpringApplicationRunListener接口的唯一内建实现*/
public class EventPublishingRunListener implements SpringApplicationRunListener, Ordered {
 	/*xxx: 事件广播器 */
	private final SimpleApplicationEventMulticaster initialMulticaster;

    public EventPublishingRunListener(SpringApplication application, String[] args) {
     	/*xxx: 创建 SimpleApplicationEventMulticaster广播器*/
		this.initialMulticaster = new SimpleApplicationEventMulticaster();
		/*xxx: 遍历 ApplicationListener并关联 multicaster*/
		for (ApplicationListener<?> listener : application.getListeners()) {
			this.initialMulticaster.addApplicationListener(listener);
		}
    }

    @Override
	public void environmentPrepared(ConfigurableBootstrapContext bootstrapContext,
			ConfigurableEnvironment environment) {
		this.initialMulticaster.multicastEvent(
				new ApplicationEnvironmentPreparedEvent(bootstrapContext, this.application, this.args, environment));
	}
}

# 生效流程

/*xxx: 环境装配事件监听器 */
public class BootstrapApplicationListener implements ApplicationListener<ApplicationEnvironmentPreparedEvent>, Ordered {

     @Override
    /*xxx: bootstrap父类应用监听器，会以bootstrap为名称，实例化一个轻量级的容器 */
    public void onApplicationEvent(ApplicationEnvironmentPreparedEvent event) {
        context = bootstrapServiceContext(environment, event.getSpringApplication(), configName);

        /*xxx: 省略其他抽象...*/

        /*xxx: 将上下文定制器，添加到spring应用中进行缓存，略*/
        apply(context, event.getSpringApplication(), environment);
    }

    /*xxx: 配置并创建 bootstrap上下文容器 */
    private ConfigurableApplicationContext bootstrapServiceContext(ConfigurableEnvironment environment,
                                                                   final SpringApplication application, String configName) {
        /*xxx: 实例化父级上下文 */
        SpringApplicationBuilder builder = new SpringApplicationBuilder().profiles(environment.getActiveProfiles())
                .bannerMode(Mode.OFF).environment(bootstrapEnvironment)
                .registerShutdownHook(false).logStartupInfo(false).web(WebApplicationType.NONE);

        /*xxx: 该importer,实现加载bootstrap上下文的功能 */
        builder.sources(BootstrapImportSelectorConfiguration.class);

        /*xxx: 创建bootstrap上下文容器 */
        final ConfigurableApplicationContext context = builder.run();
        return context;
    }

}

@Configuration(proxyBeanMethods = false)
@Import(BootstrapImportSelector.class)
/*xxx: spring-cloud-context 自带了了配置生效功能*/
public class BootstrapImportSelectorConfiguration {

}

public class BootstrapImportSelector implements EnvironmentAware, DeferredImportSelector {
    @Override
    public String[] selectImports(AnnotationMetadata annotationMetadata) {
        List<String> names = new ArrayList<>(
                SpringFactoriesLoader.loadFactoryNames(BootstrapConfiguration.class, classLoader));
        /*xxx: 省略其它抽象...*/

        return names.toArray();
    }
}

org.springframework.cloud.bootstrap.BootstrapConfiguration=org.springframework.cloud.bootstrap.config.PropertySourceBootstrapConfiguration

/*xxx: springCloud的核心配置文件，其本质是基于 应用初始化器 生效*/
/*xxx: 需要注意到的是，该类是在bootstrap上下文阶段初始化的*/
@Configuration(proxyBeanMethods = false)
@EnableConfigurationProperties(PropertySourceBootstrapProperties.class)
public class PropertySourceBootstrapConfiguration
		implements ApplicationContextInitializer<ConfigurableApplicationContext>, Ordered {
 	 @Autowired(required = false)
    /*xxx: 属性源，该属性源 由 springCloud提供*/
    private List<PropertySourceLocator> propertySourceLocators = new ArrayList<>();

    @Override
    /*xxx: 核心初始化流程，其主要作用就是基于特定规则，将多个配置合并*/
    public void initialize(ConfigurableApplicationContext applicationContext) {
        List<PropertySource<?>> composite = new ArrayList<>();
        /*xxx: 对所有属性源进行排序*/
        AnnotationAwareOrderComparator.sort(this.propertySourceLocators);

        /*xxx: 筛选有效属性源配置，并收集*/
        for (PropertySourceLocator locator : this.propertySourceLocators) {
            Collection<PropertySource<?>> source = locator.locateCollection(environment);
            List<PropertySource<?>> sourceList = new ArrayList<>();
            for (PropertySource<?> p : source) {
                sourceList.add(new SimpleBootstrapPropertySource(p));
            }
            composite.addAll(sourceList);
            /*xxx: 存在有效的属性源，则进行进一步配置*/
            MutablePropertySources propertySources = environment.getPropertySources();
            /*xxx: 配置属性源*/
            insertPropertySources(propertySources, composite);
        }
    }

}

/*xxx: 定位属性源接口*/
public interface PropertySourceLocator {
 	PropertySource<?> locate(Environment environment);
}

# 常用组件

以Nacos为例

@Order(0)
public class NacosPropertySourceLocator implements PropertySourceLocator {

    @Override
	public PropertySource<?> locate(Environment env) {
     	loadApplicationConfiguration(composite, dataIdPrefix, nacosConfigProperties, env);
    }

    private void loadApplicationConfiguration(
			CompositePropertySource compositePropertySource, String dataIdPrefix,
			NacosConfigProperties properties, Environment environment) {

        loadNacosDataIfPresent(compositePropertySource,
				dataIdPrefix + DOT + fileExtension, nacosGroup, fileExtension, true);
    }

    private void loadNacosDataIfPresent(final CompositePropertySource composite,
			final String dataId, final String group, String fileExtension,
			boolean isRefreshable) {
     	//xxx: nacos内部的加载策略， 略....
    }
}

# 生效规则

引入了依赖后，默认开启，它是工厂级别的配置;
可通过配置手动关闭,如spring.cloud.nacos.config.enabled=false,但是早期的一些springBoot自动配置并不支持该选项,虽然该特性很简单;

# 注意事项

# 上下文默认名称配置

默认上下文的名称为application
可以通过spring.application.name进行更改
也可以通过context.setId()进行更改

public class ContextIdApplicationContextInitializer
		implements ApplicationContextInitializer<ConfigurableApplicationContext>, Ordered {
    @Override
	public void initialize(ConfigurableApplicationContext applicationContext) {
		ContextId contextId = getContextId(applicationContext);
		applicationContext.setId(contextId.getId());
		applicationContext.getBeanFactory().registerSingleton(ContextId.class.getName(), contextId);
	}

    /*xxx: 注意，springCloud环境下， 当前上下文的父级上下文名称依然为 application,这是因为cloud做了特别处理*/
	private ContextId getContextId(ConfigurableApplicationContext applicationContext) {
		ApplicationContext parent = applicationContext.getParent();
		if (parent != null && parent.containsBean(ContextId.class.getName())) {
			return parent.getBean(ContextId.class).createChildId();
		}
		return new ContextId(getApplicationId(applicationContext.getEnvironment()));
	}

 	private String getApplicationId(ConfigurableEnvironment environment) {
		String name = environment.getProperty("spring.application.name");
		return StringUtils.hasText(name) ? name : "application";
	}
}

# 上下文默认配置名称

spring.config.name用于读取默认配置文件的名称
目前比较常见的有:springboot为代表的application,springCloud为代表的bootstrap;

# 上下文默认配置路径

spring.conig.location用于配置配置路径
spring.config.additional-location可用于配置外部配置地址

# 配置实时刷新

# 原理

/*xxx: 上下文刷新器*/
public abstract class ContextRefresher {

    private RefreshScope scope;

    /*xxx: 核心方法，刷新*/
	public synchronized Set<String> refresh() {
		Set<String> keys = refreshEnvironment();
		this.scope.refreshAll();
		return keys;
	}

}

# 单例bean的生成方式及缓存

/*xxx: 抽象bean容器*/
public abstract class AbstractBeanFactory extends FactoryBeanRegistrySupport implements ConfigurableBeanFactory {
    protected <T> T doGetBean(
            String name, @Nullable Class<T> requiredType, @Nullable Object[] args, boolean typeCheckOnly)
            throws BeansException {
        /*xxx: 以给定的名称，获取 RootBeanDefinition,获取不到，则会直接抛错*/
        RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
        /*xxx: 创建本身的bean实例，如果是单例模式*/
        if (mbd.isSingleton()) {
            sharedInstance = getSingleton(beanName, () -> {
                /*xxx: 首次调用时，需要创建bean,创建后，即进行缓存 */
                return createBean(beanName, mbd, args);
            });
            /*xxx: 获取bean的对象实例，会自动处理工厂模式*/
            bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
        }
    }
}

/*xxx: 默认单例bean注册表*/
public class DefaultSingletonBeanRegistry extends SimpleAliasRegistry implements SingletonBeanRegistry {
    /*xxx: 该方法不仅会创建bean,还会将单例的bean进行缓存*/
    public Object getSingleton(String beanName, ObjectFactory<?> singletonFactory) {
        Object singletonObject = this.singletonObjects.get(beanName);

        if (singletonObject == null) {
            /*xxx: 从单例工厂，获取单例，也就是 createBean方法*/
            singletonObject = singletonFactory.getObject();
            newSingleton = true;
        }

        if (newSingleton) {
            /*xxx: 已经被创建的单例，需要被缓存起来*/
            addSingleton(beanName, singletonObject);
        }

        return singletonObject;
    }
}

# 原型bean的生成方式及缓存

/*xxx: 抽象bean容器*/
public abstract class AbstractBeanFactory extends FactoryBeanRegistrySupport implements ConfigurableBeanFactory {
    protected <T> T doGetBean(
            String name, @Nullable Class<T> requiredType, @Nullable Object[] args, boolean typeCheckOnly)
            throws BeansException {
        /*xxx: 原型模式，每次都会创建一个新的实例，该新实例也会自动处理工厂模式 */
        if (mbd.isPrototype()) {
            Object prototypeInstance = null;
            prototypeInstance = createBean(beanName, mbd, args);
            bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
        }
    }
}

# 自定义领域bean的生成及缓存

/*xxx: 抽象bean容器*/
public abstract class AbstractBeanFactory extends FactoryBeanRegistrySupport implements ConfigurableBeanFactory {
    protected <T> T doGetBean(
            String name, @Nullable Class<T> requiredType, @Nullable Object[] args, boolean typeCheckOnly)
            throws BeansException {
        /*xxx: 如果既非 单例模式，也非原型模式，则按照特定的领域规则进行处理*/
        /*xxx: 普通的领域跟原型差不多，每次都需要通过领域获取对象*/
        String scopeName = mbd.getScope();

        Scope scope = this.scopes.get(scopeName);

        /*xxx： 通过领域的 get方法获取对象 */
        Object scopedInstance = scope.get(beanName, () -> {
            beforePrototypeCreation(beanName);
            try {
                return createBean(beanName, mbd, args);
            }
            finally {
                afterPrototypeCreation(beanName);
            }
        });
        bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
    }

}

# refresh领域bean的生成及缓存

/*xxx: 通用作用域的实现*/
public class GenericScope
		implements Scope, BeanFactoryPostProcessor, BeanDefinitionRegistryPostProcessor, DisposableBean {
    private ConcurrentMap<String, ReadWriteLock> locks = new ConcurrentHashMap<>();

    /*xxx: 这里面缓存了所有 域为 refreshScope的bean的信息 */
    private BeanLifecycleWrapperCache cache = new BeanLifecycleWrapperCache(new StandardScopeCache());

    @Override
    public Object get(String name, ObjectFactory<?> objectFactory) {
        BeanLifecycleWrapper value = this.cache.put(name, new BeanLifecycleWrapper(name, objectFactory));
        this.locks.putIfAbsent(name, new ReentrantReadWriteLock());
        try {
            /*xxx: 更新上下文后，关键在于destroy方法*/
            /*xxx: destroy将旧有的包装器给干掉，再次获取时实际上就是最新的包装器*/
            /*xxx: 在没有更新上下文的情况下，实际上调用上一次缓存的对象*/
            /*xxx: 总体达到的效果是，在配置没有更新的情况下，使用的是单例。 在配置更新后，则刷新所有scope为当前scope的bean*/
            return value.getBean();
        }
        catch (RuntimeException e) {
            this.errors.put(name, e);
            throw e;
        }
    }

    private static class BeanLifecycleWrapper {
        /*xxx: 先看本地缓存有没有bean，如果有则直接返回，如果没有，则通过对象工厂重新创建新的bean*/
        /*xxx: 这个对象工厂，实际也就是 spring核心工厂*/
        public Object getBean() {
            if (this.bean == null) {
                synchronized (this.name) {
                    if (this.bean == null) {
                        this.bean = this.objectFactory.getObject();
                    }
                }
            }
            return this.bean;
        }
    }
}

# 重新装载bean的执行流程及并发安全设计

public class RefreshScope extends GenericScope
		implements ApplicationContextAware, ApplicationListener<ContextRefreshedEvent>, Ordered {
    public void refreshAll() {
        super.destroy();
        this.context.publishEvent(new RefreshScopeRefreshedEvent());
    }
}

/*xxx: 通用作用域的实现*/
public class GenericScope
        implements Scope, BeanFactoryPostProcessor, BeanDefinitionRegistryPostProcessor, DisposableBean {
    @Override
    public void destroy() {
        Collection<BeanLifecycleWrapper> wrappers = this.cache.clear();
        /*xxx：要销毁对象的时候，需要获取所在对象的写锁，然后才能执行销毁动作 */
        for (BeanLifecycleWrapper wrapper : wrappers) {
            try {
                Lock lock = this.locks.get(wrapper.getName()).writeLock();
                lock.lock();
                try {
                    wrapper.destroy();
                }
                finally {
                    lock.unlock();
                }
            }
            catch (RuntimeException e) {
                errors.add(e);
            }
        }
    }
}

# bean依赖关系同步更新设计(难点)

@Target({ ElementType.TYPE, ElementType.METHOD })
@Retention(RetentionPolicy.RUNTIME)
@Scope("refresh")
@Documented
/*xxx: 注释了该注解后，允许运行时更新*/
public @interface RefreshScope {
    /*xxx: proxyMode 为 target_class时，引用的是一个代理对象*/
    /*xxx: 并且，此时上下文中，会写入两个该类型的 bean,默认情况下，引用的是代理对象 */
    ScopedProxyMode proxyMode() default ScopedProxyMode.TARGET_CLASS;
}

/*xxx: 注解配置工具类*/
public abstract class AnnotationConfigUtils {
    /*xxx: 执行scope代理 */
    static BeanDefinitionHolder applyScopedProxyMode(
            ScopeMetadata metadata, BeanDefinitionHolder definition, BeanDefinitionRegistry registry) {
        ScopedProxyMode scopedProxyMode = metadata.getScopedProxyMode();
        if (scopedProxyMode.equals(ScopedProxyMode.NO)) {
            return definition;
        }
        /*xxx: 是否需要cglib代理*/
        boolean proxyTargetClass = scopedProxyMode.equals(ScopedProxyMode.TARGET_CLASS);
        return ScopedProxyCreator.createScopedProxy(definition, registry, proxyTargetClass);
    }
}

final class ScopedProxyCreator {
    public static BeanDefinitionHolder createScopedProxy(
            BeanDefinitionHolder definitionHolder, BeanDefinitionRegistry registry, boolean proxyTargetClass) {

        return ScopedProxyUtils.createScopedProxy(definitionHolder, registry, proxyTargetClass);
    }
}

public abstract class ScopedProxyUtils {
    private static final String TARGET_NAME_PREFIX = "scopedTarget.";

    /*xxx: beanDefinition劫持 */
    public static BeanDefinitionHolder createScopedProxy(BeanDefinitionHolder definition,
                                                         BeanDefinitionRegistry registry, boolean proxyTargetClass) {
        BeanDefinition targetDefinition = definition.getBeanDefinition();
        /*xxx: 实际的代理对象载体：ScopedProxyFactoryBean */
        RootBeanDefinition proxyDefinition = new RootBeanDefinition(ScopedProxyFactoryBean.class);

        String targetBeanName = getTargetBeanName(originalBeanName);
        targetDefinition.setAutowireCandidate(false);
        targetDefinition.setPrimary(false);
        /*xxx: 注册原始对象*/
        registry.registerBeanDefinition(targetBeanName, targetDefinition);

        return new BeanDefinitionHolder(proxyDefinition, originalBeanName, definition.getAliases());
    }
}

/*xxx: 通用作用域的实现*/
public class GenericScope
		implements Scope, BeanFactoryPostProcessor, BeanDefinitionRegistryPostProcessor, DisposableBean {
    @Override
    public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) throws BeansException {
        /*xxx: 对于已经被 @scope(proxyMode)劫持过的 beanDefinition，继续进行改写*/
        for (String name : registry.getBeanDefinitionNames()) {
            BeanDefinition definition = registry.getBeanDefinition(name);
            if (definition instanceof RootBeanDefinition) {
                RootBeanDefinition root = (RootBeanDefinition) definition;
                /*xxx: 原始劫持对象 */
                if (root.getDecoratedDefinition() != null && root.hasBeanClass()
                        && root.getBeanClass() == ScopedProxyFactoryBean.class) {
                    if (getName().equals(root.getDecoratedDefinition().getBeanDefinition().getScope())) {
                        /*xxx: 改写为自定义的 bean*/
                        root.setBeanClass(LockedScopedProxyFactoryBean.class);
                        root.getConstructorArgumentValues().addGenericArgumentValue(this);
                        // surprising that a scoped proxy bean definition is not already
                        // marked as synthetic?
                        root.setSynthetic(true);
                    }
                }
            }
        }
    }

    /*xxx: 该类实现了 单例对象引用时的代理对象，为其提供实际的代理拦截器方法 */
    /*xxx: 内部持有一个读写锁，当实际的bean的方法正在被调用时，会加上读锁，方法调用完成后，释放读锁  */
    public static class LockedScopedProxyFactoryBean<S extends GenericScope> extends ScopedProxyFactoryBean
            implements MethodInterceptor {
        @Override
        public void setBeanFactory(BeanFactory beanFactory) {
            super.setBeanFactory(beanFactory);
            Object proxy = getObject();
            if (proxy instanceof Advised) {
                /*xxx: 将自身织入，进行代理*/
                Advised advised = (Advised) proxy;
                advised.addAdvice(0, this);
            }
        }

        @Override
        public Object invoke(MethodInvocation invocation) throws Throwable {
            Object proxy = getObject();
            ReadWriteLock readWriteLock = this.scope.getLock(this.targetBeanName);
            Lock lock = readWriteLock.readLock();
            lock.lock();

            try {
                if (proxy instanceof Advised) {
                    Advised advised = (Advised) proxy;
                    ReflectionUtils.makeAccessible(method);
                    return ReflectionUtils.invokeMethod(method, advised.getTargetSource().getTarget(),
                            invocation.getArguments());
                }
                return invocation.proceed();
            }finally {
                lock.unlock();
            }
        }
    }
}

# 常用组件

以nacos为例
需要注意，nacos的ContextRefresher与springCloud的ContextRefresher不是一个东西;

public class NacosContextRefresher
		implements ApplicationListener<ApplicationReadyEvent>, ApplicationContextAware {

    private void registerNacosListener(final String group, final String dataId) {
        Listener listener = listenerMap.computeIfAbsent(dataId, i -> new Listener() {
            @Override
            public void receiveConfigInfo(String configInfo) {
                applicationContext.publishEvent(
                        new RefreshEvent(this, null, "Refresh Nacos config"));
            }
        });
    }
}

public class RefreshEventListener implements SmartApplicationListener {
    private ContextRefresher refresh;

 	@Override
	public void onApplicationEvent(ApplicationEvent event) {
		if (event instanceof ApplicationReadyEvent) {
			handle((ApplicationReadyEvent) event);
		}
		else if (event instanceof RefreshEvent) {
			handle((RefreshEvent) event);
		}
	}

    /*xxx: 该监听器收到合法消息后，调用上下文刷新器进行刷新*/
	public void handle(RefreshEvent event) {
		if (this.ready.get()) { // don't handle events before app is ready
			log.debug("Event received " + event.getEventDesc());
			Set<String> keys = this.refresh.refresh();
			log.info("Refresh keys changed: " + keys);
		}
	}
}

/*xxx: 上下文刷新器*/
public abstract class ContextRefresher {
    /*xxx: 核心方法，刷新*/
    public synchronized Set<String> refresh() {
        Set<String> keys = refreshEnvironment();
        this.scope.refreshAll();
        return keys;
    }

    public synchronized Set<String> refreshEnvironment() {
        Map<String, Object> before = extract(this.context.getEnvironment().getPropertySources());
        updateEnvironment();
        Set<String> keys = changes(before, extract(this.context.getEnvironment().getPropertySources())).keySet();
        /*xxx: 更新环境后，通知监听器  重新绑定bean对象*/
        this.context.publishEvent(new EnvironmentChangeEvent(this.context, keys));
        return keys;
    }


}

public class ConfigDataContextRefresher extends ContextRefresher {
    @Override
    protected void updateEnvironment() {
        /*xxx: 更新environment数据，略*/
    }
}

# 注册中心

# 服务注册原理

# 自动配置定义

@Import(AutoServiceRegistrationConfiguration.class)
@ConditionalOnProperty(value = "spring.cloud.service-registry.auto-registration.enabled", matchIfMissing = true)
/*xxx: 服务注册自动配置*/
public class AutoServiceRegistrationAutoConfiguration {

 	 @Autowired(required = false)
    //xxx: 服务自动注册 顶级接口
    private AutoServiceRegistration autoServiceRegistration;

    @PostConstruct
    protected void init() {
        /*xxx: 在需要自动服务注册的环境下，没有自动服务注册的定义,并且配置了failFast，则会报错*/
        if (this.autoServiceRegistration == null && this.properties.isFailFast()) {
            throw new IllegalStateException(
                    "Auto Service Registration has " + "been requested, but there is no AutoServiceRegistration bean");
        }
    }
}

@EnableConfigurationProperties(AutoServiceRegistrationProperties.class)
@ConditionalOnProperty(value = "spring.cloud.service-registry.auto-registration.enabled", matchIfMissing = true)
public class AutoServiceRegistrationConfiguration {
}

@Configuration(proxyBeanMethods = false)
public class ServiceRegistryAutoConfiguration {

    /*xxx: 有服务注册表定义的环境，定义该管理端口*/
    @ConditionalOnBean(ServiceRegistry.class)
    @ConditionalOnClass(Endpoint.class)
    protected class ServiceRegistryEndpointConfiguration {

        @Autowired(required = false)
        /*xxx: 服务实例,由于springCloud环境是以应用粒度注册服务的，因此一个应用代表一个服务实例*/
        private Registration registration;

        @Bean
        @ConditionalOnAvailableEndpoint
        /*xxx: 服务状态管理端口*/
        public ServiceRegistryEndpoint serviceRegistryEndpoint(ServiceRegistry serviceRegistry) {
            ServiceRegistryEndpoint endpoint = new ServiceRegistryEndpoint(serviceRegistry);
            endpoint.setRegistration(this.registration);
            return endpoint;
        }

    }
}

# 顶级接口定义

服务实例

public interface ServiceInstance {
 	default String getInstanceId() {
		return null;
	}

    String getServiceId();

    String getHost();

    int getPort();

    Map<String, String> getMetadata();

    URI getUri();
}

/*xxx: 注册的服务实例*/
public interface Registration extends ServiceInstance {
}

服务注册表

/*xxx: 服务注册表*/
public interface ServiceRegistry<R extends Registration> {

 	void register(R registration);
    void deregister(R registration);

    void setStatus(R registration, String status);
    <T> T getStatus(R registration);

    /*xxx: 生命周期方法*/
	void close();
}

服务自动注册

/*xxx: 服务自动注册定义*/
public interface AutoServiceRegistration {
}

/*xxx: 抽象自动服务注册 */
public abstract class AbstractAutoServiceRegistration<R extends Registration>
		implements AutoServiceRegistration, ApplicationContextAware, ApplicationListener<WebServerInitializedEvent> {

    /*xxx: 服务注册表*/
	private final ServiceRegistry<R> serviceRegistry;

    //xxx: 服务自动注册，必须有服务注册表的定义
	protected AbstractAutoServiceRegistration(ServiceRegistry<R> serviceRegistry,
			AutoServiceRegistrationProperties properties) {
		this.serviceRegistry = serviceRegistry;
		this.properties = properties;
	}

    /*xxx: 当 webServer初始化事件完成后，开始进行服务注册 */
	/*xxx: 得知： 服务实例通常是一个web服务，web服务就有 ip,端口,上下文,路径等信息*/
	public void onApplicationEvent(WebServerInitializedEvent event) {
		bind(event);
	}

    @Deprecated
	public void bind(WebServerInitializedEvent event) {
		ApplicationContext context = event.getApplicationContext();

        this.port.compareAndSet(0, event.getWebServer().getPort());
		this.start();
    }

    public void start() {
     	this.context.publishEvent(new InstancePreRegisteredEvent(this, getRegistration()));
        //xxx: 服务自动注册
		register();
		this.context.publishEvent(new InstanceRegisteredEvent<>(this, getConfiguration()));
    }

    protected void register() {
		this.serviceRegistry.register(getRegistration());
	}

}

# 服务注册-生效规则

springCloud环境下,存在服务自动注册组件定义时，自动生效，同时支持属性关闭,它是应用级别的配置.

# 服务注册-常用组件

nacos为例

@ConditionalOnNacosDiscoveryEnabled /*xxx: 是否满足nacos自动注册的条件,通过配置项 spring.cloud.nacos.discovery.enabled控制，默认都是满足的 */
@ConditionalOnProperty(value = "spring.cloud.service-registry.auto-registration.enabled", matchIfMissing = true)
/*xxx: 是否允许springCloud环境的服务注册，通过配置项 spring.cloud.service-registry.auto-registration.enabled进行控制 */
@AutoConfigureAfter({ AutoServiceRegistrationConfiguration.class,
		AutoServiceRegistrationAutoConfiguration.class })
public class NacosDiscoveryAutoConfiguration {

 	@Bean
	/*xxx: 服务注册表*/
	public NacosServiceRegistry nacosServiceRegistry(
			NacosDiscoveryProperties nacosDiscoveryProperties) {
		return new NacosServiceRegistry(nacosDiscoveryProperties);
	}

	@Bean
	@ConditionalOnBean(AutoServiceRegistrationProperties.class)
	/*xxx: 服务实例*/
	public NacosRegistration nacosRegistration(
			NacosDiscoveryProperties nacosDiscoveryProperties,
			ApplicationContext context) {
		return new NacosRegistration(nacosDiscoveryProperties, context);
	}

	@Bean
	@ConditionalOnBean(AutoServiceRegistrationProperties.class)
	/*xxx: 自动服务注册*/
	public NacosAutoServiceRegistration nacosAutoServiceRegistration(
			NacosServiceRegistry registry,
			AutoServiceRegistrationProperties autoServiceRegistrationProperties,
			NacosRegistration registration) {
		return new NacosAutoServiceRegistration(registry,
				autoServiceRegistrationProperties, registration);
	}

}

# 服务发现原理

# 自动配置定义

/*xxx: 服务发现自动配置*/
public class SimpleDiscoveryClientAutoConfiguration implements ApplicationListener<WebServerInitializedEvent> {
    @Override
	public void onApplicationEvent(WebServerInitializedEvent webServerInitializedEvent) {
		port = webServerInitializedEvent.getWebServer().getPort();
		if (port > 0) {
			simple.getLocal().setHost(inet.findFirstNonLoopbackHostInfo().getHostname());
			simple.getLocal().setPort(port);
		}
	}

    @Bean
	@Order
	/*xxx: springCloud环境，默认会定义一个服务发现客户端，指向本机.其优先级比较低*/
	public DiscoveryClient simpleDiscoveryClient(SimpleDiscoveryProperties properties) {
		return new SimpleDiscoveryClient(properties);
	}
}

@Configuration(proxyBeanMethods = false)
@AutoConfigureBefore(SimpleDiscoveryClientAutoConfiguration.class)
/*xxx: 服务发现客户端收集*/
public class CompositeDiscoveryClientAutoConfiguration {
    @Bean
    @Primary
    public CompositeDiscoveryClient compositeDiscoveryClient(List<DiscoveryClient> discoveryClients) {
        return new CompositeDiscoveryClient(discoveryClients);
    }
}

# 顶级接口配置

/*xxx: 服务注册与发现*/
public interface DiscoveryClient extends Ordered {

    int DEFAULT_ORDER = 0;

 	/*xxx: 服务实例集群*/
	List<ServiceInstance> getInstances(String serviceId);

    /*xxx: 获取所有的服务id列表*/
	List<String> getServices();

    @Override
	default int getOrder() {
		return DEFAULT_ORDER;
	}
}

# 服务发现-生效规则

无条件自动生效，且无法通过配置关闭(因为是兼容的);
它是基于应用层面的应用;

# 服务发现-常用组件

以nacos为例

@ConditionalOnNacosDiscoveryEnabled
@AutoConfigureBefore({ SimpleDiscoveryClientAutoConfiguration.class,
		CommonsClientAutoConfiguration.class })
public class NacosDiscoveryClientAutoConfiguration {

 	@Bean
	@ConditionalOnMissingBean
	/*xxx: 服务发现中心(注册表)*/
	public NacosDiscoveryProperties nacosProperties() {
		return new NacosDiscoveryProperties();
	}

	@Bean
	/*xxx: 服务发现客户端*/
	public DiscoveryClient nacosDiscoveryClient(
			NacosDiscoveryProperties discoveryProperties) {
		return new NacosDiscoveryClient(discoveryProperties);
	}

    @Bean
	@ConditionalOnMissingBean
	@ConditionalOnProperty(value = "spring.cloud.nacos.discovery.watch.enabled", matchIfMissing = true)
	/*xxx: 服务监控,由于nacos注册中心是中心化的，因此服务状态应该都是实时的*/
    /*xxx: 这个配置应该是用于注册中心服务变动后，需要自动完成的动作*/
	public NacosWatch nacosWatch(NacosDiscoveryProperties nacosDiscoveryProperties) {
		return new NacosWatch(nacosDiscoveryProperties);
	}
}

public class NacosDiscoveryClient implements DiscoveryClient {

    /*xxx: 获取服务实例*/
    public List<ServiceInstance> getInstances(String serviceId) {
     	List<Instance> instances = discoveryProperties.namingServiceInstance()
                    .selectInstances(serviceId, true);
        return hostToServiceInstanceList(instances, serviceId);
    }
}

public class NacosWatch implements ApplicationEventPublisherAware, SmartLifecycle {
    private final TaskScheduler taskScheduler;

    private static ThreadPoolTaskScheduler getTaskScheduler() {
        ThreadPoolTaskScheduler taskScheduler = new ThreadPoolTaskScheduler();
        taskScheduler.initialize();
        return taskScheduler;
    }

    @Override
    public void start() {
        if (this.running.compareAndSet(false, true)) {
            /*xxx: 默认情况下，每隔30秒会进行服务查询*/
            this.watchFuture = this.taskScheduler.scheduleWithFixedDelay(
                    this::nacosServicesWatch, this.properties.getWatchDelay());
        }
    }

    public void nacosServicesWatch() {
		this.publisher.publishEvent(
				new HeartbeatEvent(this, nacosWatchIndex.getAndIncrement()));

	}
}

# 服务发现注意事项

服务发现在没有主动使用的情况下，它只是一个基础设施，并没有实际发挥功效;
服务发现作为一项特性，在springCloud环境，始终生效,但正常的应用无感知;

# 客户端负载均衡

# 原理

# 自动配置定义

@ConditionalOnClass(RestTemplate.class)
@ConditionalOnBean(LoadBalancerClient.class)
@EnableConfigurationProperties(LoadBalancerProperties.class)
/*xxx: 负载均衡 自动配置项*/
public class LoadBalancerAutoConfiguration {

    @LoadBalanced
    @Autowired(required = false)
	/*xxx: 将所有的 restTemplate进行收集,并注入负载均衡功能 */
	private List<RestTemplate> restTemplates = Collections.emptyList();

    @Bean
	/*xxx: 加载 restTemplate拦截器，相当于插件*/
	/*xxx: 其最大的特性 是 重试  */
	public SmartInitializingSingleton loadBalancedRestTemplateInitializerDeprecated(
			final ObjectProvider<List<RestTemplateCustomizer>> restTemplateCustomizers) {
		return () -> restTemplateCustomizers.ifAvailable(customizers -> {
			for (RestTemplate restTemplate : LoadBalancerAutoConfiguration.this.restTemplates) {
				for (RestTemplateCustomizer customizer : customizers) {
					customizer.customize(restTemplate);
				}
			}
		});
	}

    @Bean
	@ConditionalOnMissingBean
	/*xxx: 负载均衡客户端重试相关的特性，依赖工厂生成 */
	public LoadBalancerRequestFactory loadBalancerRequestFactory(LoadBalancerClient loadBalancerClient) {
		return new LoadBalancerRequestFactory(loadBalancerClient, this.transformers);
	}
    @Configuration(proxyBeanMethods = false)
	@Conditional(RetryMissingOrDisabledCondition.class)
	static class LoadBalancerInterceptorConfig {

		@Bean
		/*xxx: 负载均衡拦截器 */
		public LoadBalancerInterceptor loadBalancerInterceptor(LoadBalancerClient loadBalancerClient,
				LoadBalancerRequestFactory requestFactory) {
			return new LoadBalancerInterceptor(loadBalancerClient, requestFactory);
		}

		@Bean
		@ConditionalOnMissingBean
		/*xxx: 负载均衡 负载均衡拦截器装载 */
		public RestTemplateCustomizer restTemplateCustomizer(final LoadBalancerInterceptor loadBalancerInterceptor) {
			return restTemplate -> {
				List<ClientHttpRequestInterceptor> list = new ArrayList<>(restTemplate.getInterceptors());
				list.add(loadBalancerInterceptor);
				restTemplate.setInterceptors(list);
			};
		}

	}

    //xxx: 省略其它抽象...
}

# 顶级接口定义

/*xxx: 服务实例选择器 */
public interface ServiceInstanceChooser {
 	/*xxx: 选择服务实例*/
	ServiceInstance choose(String serviceId);

    /*xxx: 选择服务实例*/
	<T> ServiceInstance choose(String serviceId, Request<T> request);
}

/*xxx: 负载均衡客户端 */
public interface LoadBalancerClient extends ServiceInstanceChooser {
 	/*xxx: 执行请求 */
	<T> T execute(String serviceId, LoadBalancerRequest<T> request) throws IOException;

    /*xxx: 重构uri*/
	URI reconstructURI(ServiceInstance instance, URI original);
}

# 生效条件

配置了负载均衡客户端后自动生效
从源码来看，@LoadBalanced不设置时，也会自动生效(与检索的资料有出入，暂时存放在这);

# 常用组件

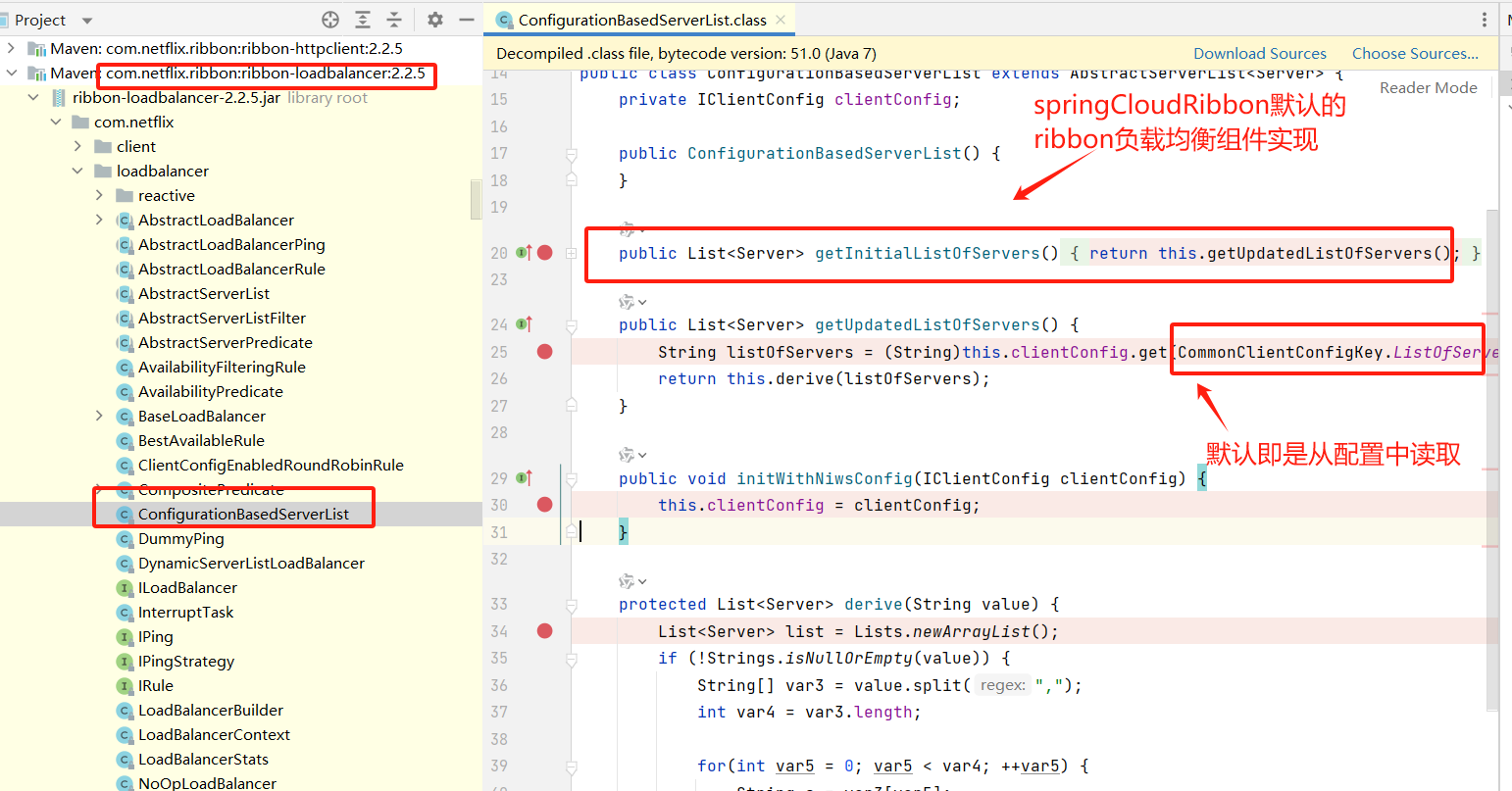

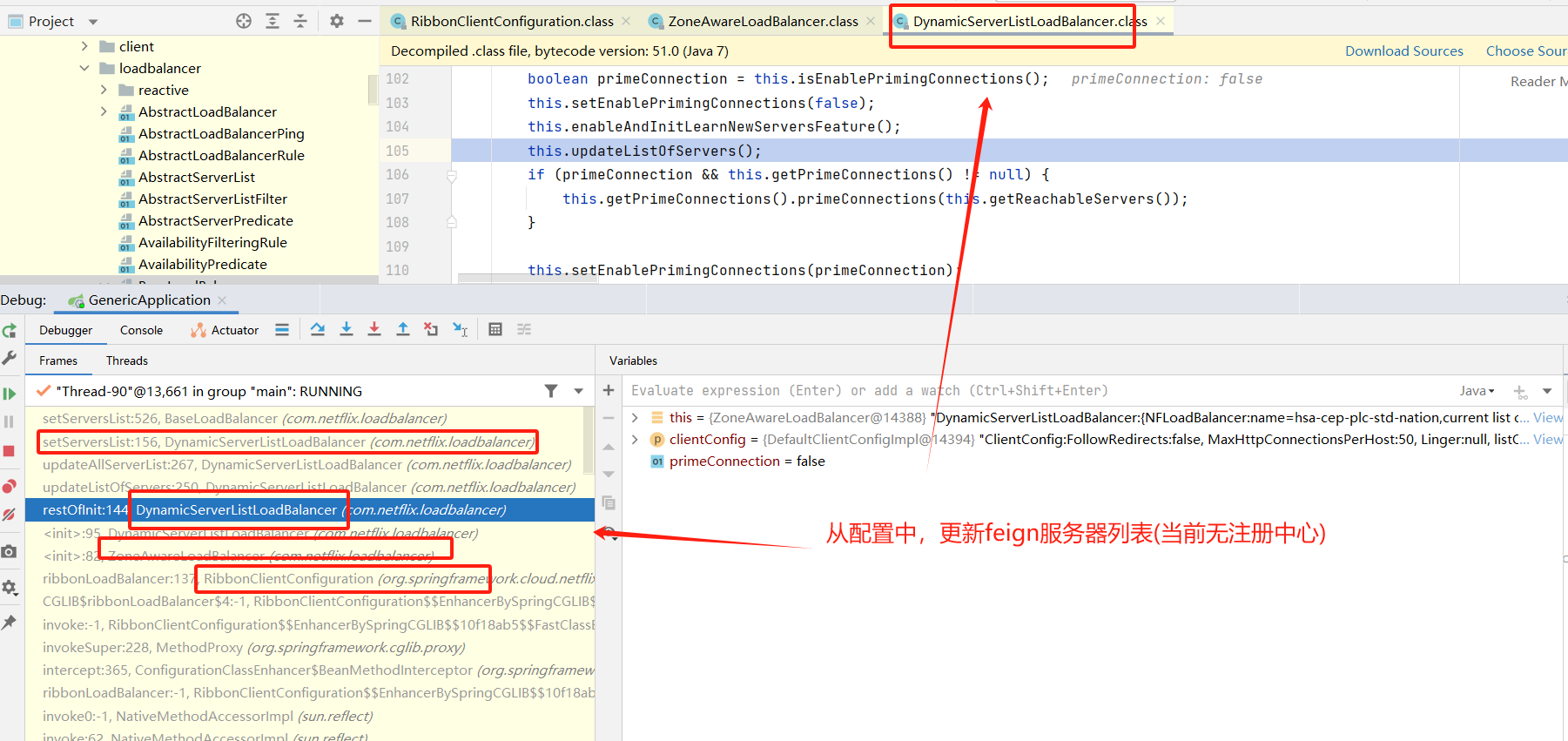

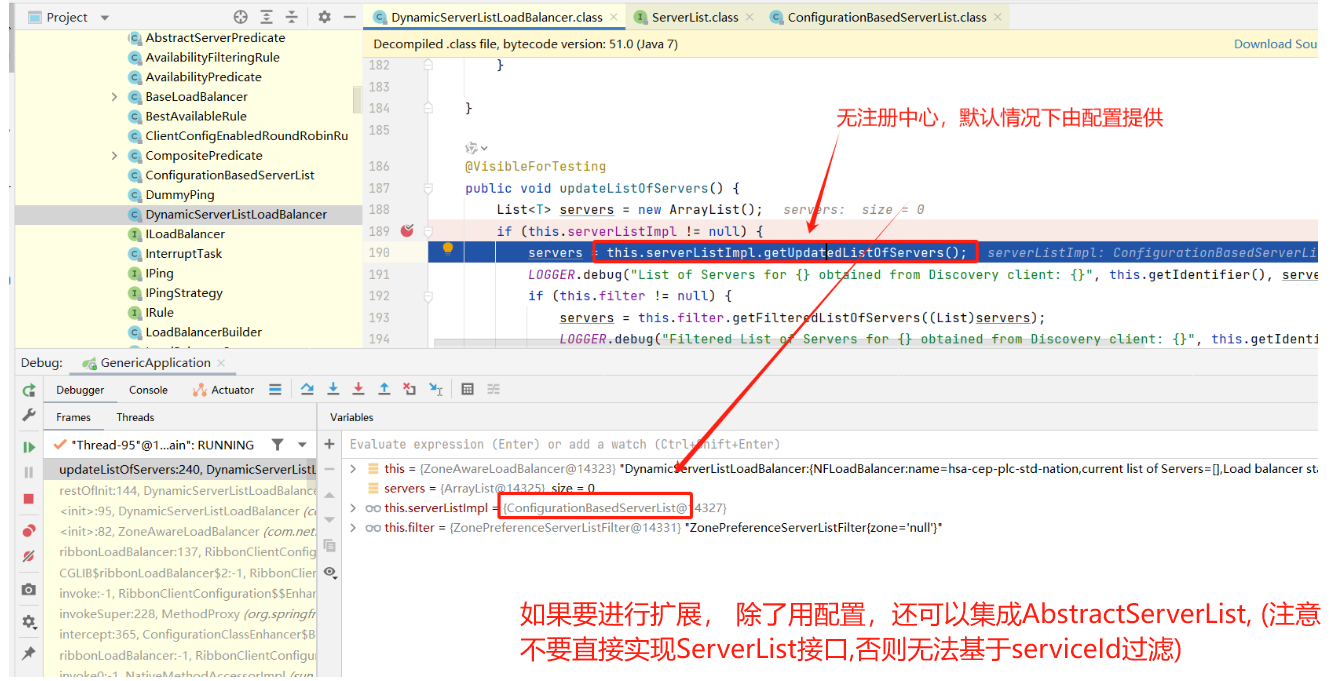

以ribbon为例,以nacos作为注册中心

@RibbonClients(defaultConfiguration = NacosRibbonClientConfiguration.class)
/*xxx: 与ribbon的结合，主要是提供了一个 服务列表，其他就是ribbon自身的事情了 */
public class RibbonNacosAutoConfiguration {
}

@Configuration
@ConditionalOnRibbonNacos
/*xxx: nacos与ribbon的结合，实现负载均衡，为naocs的客户端提供服务  */
public class NacosRibbonClientConfiguration {

	@Bean
	@ConditionalOnMissingBean
	/*xxx: 服务列表，返回nacos服务列表 */
	public ServerList<?> ribbonServerList(IClientConfig config,
			NacosDiscoveryProperties nacosDiscoveryProperties) {
		NacosServerList serverList = new NacosServerList(nacosDiscoveryProperties);
		serverList.initWithNiwsConfig(config);
		return serverList;
	}

	@Bean
	@ConditionalOnMissingBean
	public NacosServerIntrospector nacosServerIntrospector() {
		return new NacosServerIntrospector();
	}
}

/*xxx: nacos服务列表 */
public class NacosServerList extends AbstractServerList<NacosServer> {
    /*xxx: 获取nacos服务列表 */
    private List<NacosServer> getServers() {
        /*xxx: 通过名字服务获取 nacos的服务列表 */
        List<Instance> instances = discoveryProperties.namingServiceInstance()
                .selectInstances(serviceId, true);
        return instancesToServerList(instances);
    }
}

以loadbalancer为例

/*xxx: 组赛式获取负载均衡实例*/
public class BlockingLoadBalancerClient implements LoadBalancerClient {

 	/*xxx: 获取服务实例*/
	public <T> T execute(String serviceId, LoadBalancerRequest<T> request) throws IOException {
     	/*xxx: 请求适配器 */
		LoadBalancerRequestAdapter<T, DefaultRequestContext> lbRequest = new LoadBalancerRequestAdapter<>(request,
				new DefaultRequestContext(request, hint));

        /*xxx: 选择服务实例 */
		ServiceInstance serviceInstance = choose(serviceId, lbRequest);

        /*xxx: 执行实际的请求*/
		return execute(serviceId, serviceInstance, lbRequest);
    }

    /*xxx: 选择服务实例*/
	public <T> ServiceInstance choose(String serviceId, Request<T> request) {
     	/*xxx: 通过工厂获取服务实例 */
		ReactiveLoadBalancer<ServiceInstance> loadBalancer = loadBalancerClientFactory.getInstance(serviceId);

        /*xxx: 阻塞获取服务实例响应 */
		Response<ServiceInstance> loadBalancerResponse = Mono.from(loadBalancer.choose(request)).block();

        return loadBalancerResponse.getServer();
    }

    /*xxx: 对服务实例进行调用,包装适配,获取实际的执行结果  */
	public <T> T execute(String serviceId, ServiceInstance serviceInstance, LoadBalancerRequest<T> request)
			throws IOException {
     	/*xxx: 包装服务实例 */
		DefaultResponse defaultResponse = new DefaultResponse(serviceInstance);

        /*xxx: 执行请求*/
		T response = request.apply(serviceInstance);

        return response;
    }
}

自动配置

org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
org.springframework.cloud.loadbalancer.config.LoadBalancerAutoConfiguration,\
org.springframework.cloud.loadbalancer.config.BlockingLoadBalancerClientAutoConfiguration,\
org.springframework.cloud.loadbalancer.config.LoadBalancerCacheAutoConfiguration

public class LoadBalancerAutoConfiguration {
 	@Bean
	@ConditionalOnMissingBean
	/*xxx： 负载均衡 zone 配置 */
	public LoadBalancerZoneConfig zoneConfig(Environment environment) {
		return new LoadBalancerZoneConfig(environment.getProperty("spring.cloud.loadbalancer.zone"));
	}

    @ConditionalOnMissingBean
	@Bean
	/*xxx: 负载均衡客户端 工厂定义 */
	public LoadBalancerClientFactory loadBalancerClientFactory() {
		LoadBalancerClientFactory clientFactory = new LoadBalancerClientFactory();
		clientFactory.setConfigurations(this.configurations.getIfAvailable(Collections::emptyList));
		return clientFactory;
	}
}

@ConditionalOnClass(RestTemplate.class)
/*xxx: 负载均衡客户端配置 */
public class BlockingLoadBalancerClientAutoConfiguration {
 	@Bean
	@ConditionalOnBean(LoadBalancerClientFactory.class)
	@ConditionalOnMissingBean
	/*xxx: 负载均衡客户端配置 */
	public LoadBalancerClient blockingLoadBalancerClient(LoadBalancerClientFactory loadBalancerClientFactory,
			LoadBalancerProperties properties) {
		return new BlockingLoadBalancerClient(loadBalancerClientFactory, properties);
	}

    @Configuration
	@ConditionalOnClass(RetryTemplate.class)
	@EnableConfigurationProperties(LoadBalancerProperties.class)
	/*xxx: 负载均衡 重试配置*/
	protected static class BlockingLoadBalancerRetryConfig {

		@Bean
		@ConditionalOnMissingBean
		/*xxx: 重试工厂 */
		LoadBalancedRetryFactory loadBalancedRetryFactory(LoadBalancerProperties properties) {
			return new BlockingLoadBalancedRetryFactory(properties);
		}

	}
}

# 负载均衡流程

public class LoadBalancerAutoConfiguration {
 	@ConditionalOnMissingBean
	@Bean
	/*xxx: 负载均衡客户端 工厂定义 */
	public LoadBalancerClientFactory loadBalancerClientFactory() {
		LoadBalancerClientFactory clientFactory = new LoadBalancerClientFactory();
		clientFactory.setConfigurations(this.configurations.getIfAvailable(Collections::emptyList));
		return clientFactory;
	}
}

/*xxx: 负载均衡客户端工厂， 属于reactive风格 */
public class LoadBalancerClientFactory extends NamedContextFactory<LoadBalancerClientSpecification>
		implements ReactiveLoadBalancer.Factory<ServiceInstance> {

 	public LoadBalancerClientFactory() {
		/*xxx: 默认的负载均衡客户端配置*/
		super(LoadBalancerClientConfiguration.class, NAMESPACE, PROPERTY_NAME);
	}
}

@ConditionalOnDiscoveryEnabled
/*xxx: 默认的负载均衡客户端配置 */
public class LoadBalancerClientConfiguration {

    @Bean
	@ConditionalOnMissingBean
	/*xxx: 默认的负载均衡策略: roundRobin */
	public ReactorLoadBalancer<ServiceInstance> reactorServiceInstanceLoadBalancer(Environment environment,
			LoadBalancerClientFactory loadBalancerClientFactory) {
		String name = environment.getProperty(LoadBalancerClientFactory.PROPERTY_NAME);
		return new RoundRobinLoadBalancer(
				/*xxx:  服务实例 提供者 充当 服务注册表*/
				loadBalancerClientFactory.getLazyProvider(name, ServiceInstanceListSupplier.class), name);
	}


    @ConditionalOnReactiveDiscoveryEnabled
	@Order(REACTIVE_SERVICE_INSTANCE_SUPPLIER_ORDER)
	/*xxx: 基于reactive的策略*/
	public static class ReactiveSupportConfiguration {
     	@Bean
		@ConditionalOnBean(ReactiveDiscoveryClient.class)
		@ConditionalOnMissingBean
		@ConditionalOnProperty(value = "spring.cloud.loadbalancer.configurations", havingValue = "default",
				matchIfMissing = true)

		/*xxx: 基于服务发现 的 服务注册表 ， 默认选项 */
		public ServiceInstanceListSupplier discoveryClientServiceInstanceListSupplier(
				ConfigurableApplicationContext context) {
			return ServiceInstanceListSupplier.builder().withDiscoveryClient().withCaching().build(context);
		}

        /*xxx: 基于服务发现 ，且 搭配 zone 区域 过滤特性， 配置  zone-preference时生效 */
        /*xxx: 基于服务发现，且 搭配 健康检查特性， 配置 health-check时生效 */
        /*xxx: 基于服务发现，且搭配 session使用， 配置 request-based-sticky-session后生效 */
        /*xxx: 基于服务发现，且使用同一个实例， 配置 same-instance-preference 后生效 */
    }

    @ConditionalOnBlockingDiscoveryEnabled
	@Order(REACTIVE_SERVICE_INSTANCE_SUPPLIER_ORDER + 1)
	/*xxx: 基于blocking的策略 */
	public static class BlockingSupportConfiguration {
     	//xxx: 同上，略
    }
}

/*xxx: 基于服务发现的负载均衡注册表 */
public class DiscoveryClientServiceInstanceListSupplier implements ServiceInstanceListSupplier {
    private final String serviceId;

	/*xxx: 服务实例列表 */
	private final Flux<List<ServiceInstance>> serviceInstances;

	public DiscoveryClientServiceInstanceListSupplier(DiscoveryClient delegate, Environment environment) {
		this.serviceId = environment.getProperty(PROPERTY_NAME);
		/*xxx: 在初始化时， 即用服务发现客户端，获取所有的服务实例 */
		this.serviceInstances = Flux.defer(() -> Flux.just(delegate.getInstances(serviceId)))
				.subscribeOn(Schedulers.boundedElastic()).timeout(timeout, Flux.defer(() -> {
					logTimeout();
					return Flux.just(new ArrayList<>());
				})).onErrorResume(error -> {
					logException(error);
					return Flux.just(new ArrayList<>());
				});

	}

    @Override
	public Flux<List<ServiceInstance>> get() {
		return serviceInstances;
	}

}

# 使用示例

@RestController
public class NacosController{
    @Autowired
    private LoadBalancerClient loadBalancerClient;

    @Autowired
    private RestTemplate restTemplate;

    @GetMapping("/echo/{param}")
    public String echoParam(@PathVariable String param){
        ServiceInstance serviceInstance = loadBalancerClient.choose("nacos-provider");
        String path =  String.format("http://%s:%s/echo/%s",serviceInstance.getHost(),serviceInstance.getPort(),param);
        System.out.println(" request path: "+ path);

        //return restTemplate.getForObject(path,String.class);
        return restTemplate.getForObject("nacos-provider"+"/echo/test",String.class);
    }
}

# 服务调用

# 从openFeign说起

# openFeign的发展

openFeign时一个基于netflix的feign开源项目的重构版本,是一个声明式的web服务客户端;
最初的feign项目，由netflix开源
由于feign代码比较老旧，netflix决定对其重构，形成了openFeign项目
openFeign由于使用方式简单，逐渐成为一个活跃的开源项目

# openFeign的使用(纯净版)

添加openFeign依赖

<dependencies>
    <dependency>
        <groupId>io.github.openfeign</groupId>
        <artifactId>feign-core</artifactId>
        <version>11.1</version>
    </dependency>
    <dependency>
        <groupId>io.github.openfeign</groupId>
        <artifactId>feign-httpclient</artifactId>
        <version>11.1</version>
    </dependency>
</dependencies>

创建客户端接口

public interface UserServiceClient {
    @RequestMapping("/users/{id}")
    @Headers("Content-Type: application/json")
    User getUserById(@Param("id") Long id);
}

创建feign客户端

class Test{

    void test(){
        HttpClient httpClient = HttpClient.newBuilder().build();
UserServiceClient userServiceClient = Feign.builder()
        .client(new feign.httpclient.ApacheHttpClient(httpClient))
        .encoder(new GsonEncoder())
        .decoder(new GsonDecoder())
        .target(UserServiceClient.class, "http://localhost:8080");
    }
}
//xxx: 使用GsonEncoder和GsonDecoder实现JSON序列化和反序列化

声明式调用服务

class Test{
    void test(){
        User user = userServiceClient.getUserById(1L);
    }
}

# 原理

# 自动配置定义

@ConditionalOnClass(Feign.class)
@Import(DefaultGzipDecoderConfiguration.class)
/*xxx: feign的自动配置 */
public class FeignAutoConfiguration {
 	@Bean
	/*xxx: feign的上下文配置 */
	public FeignContext feignContext() {
		FeignContext context = new FeignContext();
		context.setConfigurations(this.configurations);
		return context;
	}

    @Configuration(proxyBeanMethods = false)
	@ConditionalOnClass(CircuitBreaker.class)
	@ConditionalOnProperty("feign.circuitbreaker.enabled")
	/*xxx: feign的断路器配置 */
	protected static class CircuitBreakerPresentFeignTargeterConfiguration {

		@Bean
		@ConditionalOnMissingBean(CircuitBreakerFactory.class)
		/*xxx: 根据是否由断路器工厂，进行选配*/
		public Targeter defaultFeignTargeter() {
			return new DefaultTargeter();
		}

		@Bean
		@ConditionalOnMissingBean
		@ConditionalOnBean(CircuitBreakerFactory.class)
		/*xxx: 根据是否由断路器工厂，进行选配*/
		public Targeter circuitBreakerFeignTargeter(CircuitBreakerFactory circuitBreakerFactory) {
			return new FeignCircuitBreakerTargeter(circuitBreakerFactory);
		}

	}

    @ConditionalOnClass(ApacheHttpClient.class)
	/*xxx: 如果系统已经定义过 CloseableHttpClient，则不会再次配置*/
	@ConditionalOnMissingBean(CloseableHttpClient.class)
	@ConditionalOnProperty(value = "feign.httpclient.enabled", matchIfMissing = true)
	/*xxx: feign的客户端配置 */
	protected static class HttpClientFeignConfiguration {
     	@Bean
		@ConditionalOnMissingBean(HttpClientConnectionManager.class)
		/*xxx: 连接管理器*/
		public HttpClientConnectionManager connectionManager(
				ApacheHttpClientConnectionManagerFactory connectionManagerFactory,
				FeignHttpClientProperties httpClientProperties) {
			final HttpClientConnectionManager connectionManager = connectionManagerFactory.newConnectionManager(
					httpClientProperties.isDisableSslValidation(), httpClientProperties.getMaxConnections(),
					httpClientProperties.getMaxConnectionsPerRoute(), httpClientProperties.getTimeToLive(),
					httpClientProperties.getTimeToLiveUnit(), this.registryBuilder);
			this.connectionManagerTimer.schedule(new TimerTask() {
				@Override
				public void run() {
					connectionManager.closeExpiredConnections();
				}
			}, 30000, httpClientProperties.getConnectionTimerRepeat());
			return connectionManager;
		}

        @Bean
		/*xxx: http客户端配置 */
		public CloseableHttpClient httpClient(ApacheHttpClientFactory httpClientFactory,
				HttpClientConnectionManager httpClientConnectionManager,
				FeignHttpClientProperties httpClientProperties) {
			RequestConfig defaultRequestConfig = RequestConfig.custom()
					.setConnectTimeout(httpClientProperties.getConnectionTimeout())
					.setRedirectsEnabled(httpClientProperties.isFollowRedirects()).build();
			this.httpClient = httpClientFactory.createBuilder().setConnectionManager(httpClientConnectionManager)
					.setDefaultRequestConfig(defaultRequestConfig).build();
			return this.httpClient;
		}

        @Bean
		@ConditionalOnMissingBean(Client.class)
		/*xxx: feign客户端配置 */
		public Client feignClient(HttpClient httpClient) {
			return new ApacheHttpClient(httpClient);
		}
    }
}

@Import({ HttpClientFeignLoadBalancerConfiguration.class, OkHttpFeignLoadBalancerConfiguration.class,
		DefaultFeignLoadBalancerConfiguration.class })
/*xxx: feign的负载均衡配置 */
public class FeignLoadBalancerAutoConfiguration {

}

/*xxx: 基于 apacheClient的 feign的负载均衡配置 */
class HttpClientFeignLoadBalancerConfiguration {
 	@Bean
	@ConditionalOnMissingBean
	@Conditional(OnRetryNotEnabledCondition.class)
	/*xxx: 负载均衡客户端配置 */
	public Client feignClient(LoadBalancerClient loadBalancerClient, HttpClient httpClient,
			LoadBalancerProperties properties, LoadBalancerClientFactory loadBalancerClientFactory) {
		ApacheHttpClient delegate = new ApacheHttpClient(httpClient);
		return new FeignBlockingLoadBalancerClient(delegate, loadBalancerClient, properties, loadBalancerClientFactory);
	}
}

# 基础设施定义

/*xxx: 注解当前服务为 feign的客户端 */
public @interface FeignClient {
    @AliasFor("value")
	String name() default "";

    //xxx: 指定路径，优先级高于 name
    String url() default "";

    /*xxx: 指定配置装配时的配置文件*/
	Class<?>[] configuration() default {};

    /*xxx: 服务降级接口*/
	Class<?> fallback() default void.class;
}

@Import(FeignClientsRegistrar.class)
/*xxx: 开启feign客户端处理特性  */
public @interface EnableFeignClients {
	/*xxx: 扫描路径 */
	String[] basePackages() default {};

    /*xxx: 指定具体的client配置接口*/
	Class<?>[] clients() default {};
}

/*xxx: feign基础设施的装配 */
class FeignClientsRegistrar implements ImportBeanDefinitionRegistrar, ResourceLoaderAware, EnvironmentAware {

 	@Override
	/*xxx: 注册配置 */
	public void registerBeanDefinitions(AnnotationMetadata metadata, BeanDefinitionRegistry registry) {
		/*xxx: 注册默认配置*/
		registerDefaultConfiguration(metadata, registry);
		/*xxx: 注册 feign客户端 */
		registerFeignClients(metadata, registry);
	}

    private void registerClientConfiguration(BeanDefinitionRegistry registry, Object name, Object configuration) {
		/*xxx: 通用 feign客户端定义 */
		BeanDefinitionBuilder builder = BeanDefinitionBuilder.genericBeanDefinition(FeignClientSpecification.class);
		builder.addConstructorArgValue(name);
		builder.addConstructorArgValue(configuration);
		/*xxx: 注册为模板 */
		registry.registerBeanDefinition(name + "." + FeignClientSpecification.class.getSimpleName(),
				builder.getBeanDefinition());
	}

    /*xxx: 注册feign客户端 */
	public void registerFeignClients(AnnotationMetadata metadata, BeanDefinitionRegistry registry) {
     	/*xxx: 保存所有预处理的 bean*/
		LinkedHashSet<BeanDefinition> candidateComponents = new LinkedHashSet<>();
        Map<String, Object> attrs = metadata.getAnnotationAttributes(EnableFeignClients.class.getName());
		/*xxx: 指定方式 与 扫描方式，二选一*/
		final Class<?>[] clients = attrs == null ? null : (Class<?>[]) attrs.get("clients");

        /*xxx: 没有指定，则进行扫描*/
		if (clients == null || clients.length == 0) {
         	ClassPathScanningCandidateComponentProvider scanner = getScanner();
			scanner.setResourceLoader(this.resourceLoader);
			/*xxx: 扫描bean容器中，带有 @FeignClient的bean*/
			scanner.addIncludeFilter(new AnnotationTypeFilter(FeignClient.class));
            Set<String> basePackages = getBasePackages(metadata);
			for (String basePackage : basePackages) {
				candidateComponents.addAll(scanner.findCandidateComponents(basePackage));
			}
        }

        /*xxx: 遍历预处理的bean  */
		for (BeanDefinition candidateComponent : candidateComponents) {
			/*xxx: 预处理的bean, 需要时 注解定义的 才能被处理. 防止手动注入错误的bean  */
			if (candidateComponent instanceof AnnotatedBeanDefinition) {
         		/*xxx: @FeignClient 注解，必须注解在接口上才能够生效，否则 阻断当前进程 */
				Assert.isTrue(annotationMetadata.isInterface(), "@FeignClient can only be specified on an interface");

                /*xxx: 获取客户端名称 */
				String name = getClientName(attributes);
				/*xxx: 注册 客户端配置 */
				registerClientConfiguration(registry, name, attributes.get("configuration"));

				/*xxx: 注册 feign客户端 */
				registerFeignClient(registry, annotationMetadata, attributes);
            }
        }
    }

    /*xxx: 注册feign客户端  */
	private void registerFeignClient(BeanDefinitionRegistry registry, AnnotationMetadata annotationMetadata,
			Map<String, Object> attributes) {
     	/*xxx: feignClient 工厂代理类，作为 实际的实现， 类似于 mybatis 实现机制 */
		FeignClientFactoryBean factoryBean = new FeignClientFactoryBean();

        factoryBean.setBeanFactory(beanFactory);
		factoryBean.setName(name);
		factoryBean.setContextId(contextId);
		factoryBean.setType(clazz);

        BeanDefinitionBuilder definition = BeanDefinitionBuilder.genericBeanDefinition(clazz, () -> {
           	/*xxx: 为代理类设置url,path等属性， 没设置的话， 为空  */
			factoryBean.setUrl(getUrl(beanFactory, attributes));
			factoryBean.setPath(getPath(beanFactory, attributes));

            if (fallback != null) {
				/*xxx: 设置 降级接口 */
				factoryBean.setFallback(fallback instanceof Class ? (Class<?>) fallback
						: ClassUtils.resolveClassName(fallback.toString(), null));
			}

            /*xxx: 通过工厂获取代理bean*/
			return factoryBean.getObject();
        });

        /*xxx: 将当前的代理类 ，注入bean容器  */
		BeanDefinitionHolder holder = new BeanDefinitionHolder(beanDefinition, className, new String[] { alias });
		BeanDefinitionReaderUtils.registerBeanDefinition(holder, registry);

    }
}

/*xxx: feign客户端代理工厂*/
public class FeignClientFactoryBean
		implements FactoryBean<Object>, InitializingBean, ApplicationContextAware, BeanFactoryAware {

 	@Override
	/*xxx: 获取实际的bean */
	public Object getObject() {
		return getTarget();
	}

    /*xxx: 获取feign客户端代理 */
	<T> T getTarget() {
     	/*xxx: 获取feign上下文 */
		FeignContext context = beanFactory != null ? beanFactory.getBean(FeignContext.class)
				: applicationContext.getBean(FeignContext.class);
		/*xxx: 从feign，上下文中，获取 feign的 builder */
		Feign.Builder builder = feign(context);

        /*xxx: 如果没有配置 url属性，则对 url进行规整 */
		if (!StringUtils.hasText(url)) {
			/*xxx: 如果名称不是以 http开头，则为拼接上协议 */
			if (!name.startsWith("http")) {
				url = "http://" + name;
			}
			else {
				url = name;
			}
			url += cleanPath();
			/*xxx: 通过负载均衡选取服务实例 */
			return (T) loadBalance(builder, context, new HardCodedTarget<>(type, name, url));
		}

        /*xxx: 如果配置了url, 则为url进行规整 */
		if (StringUtils.hasText(url) && !url.startsWith("http")) {
			url = "http://" + url;
		}
		String url = this.url + cleanPath();
		/*xxx: 获取feign客户端 */
		Client client = getOptional(context, Client.class);

        Targeter targeter = get(context, Targeter.class);
		/*xxx: 通过 targeter进行代理,返回某个接口的代理类  */
		return (T) targeter.target(this, builder, context, new HardCodedTarget<>(type, name, url));
    }

    protected <T> T get(FeignContext context, Class<T> type) {
		/*xxx: 从feign上下文中，获取相应的实例 */
		T instance = context.getInstance(contextId, type);
		if (instance == null) {
			throw new IllegalStateException("No bean found of type " + type + " for " + contextId);
		}
		return instance;
	}
}

/*xxx: 目标转换器，用于将Feign客户端接口的方法和注解转换成目标URI和HTTP请求参数等信息*/
public interface Targeter {

	/*xxx: 获取动态代理类 */
	<T> T target(FeignClientFactoryBean factory, Feign.Builder feign, FeignContext context,
			Target.HardCodedTarget<T> target);

}

class DefaultTargeter implements Targeter {

	@Override
	/*xxx: 默认实现 */
	public <T> T target(FeignClientFactoryBean factory, Feign.Builder feign, FeignContext context,
			Target.HardCodedTarget<T> target) {
		/*xxx: 本质上通过 feign的builder 获取代理类  */
		return feign.target(target);
	}

}

class FeignCircuitBreakerTargeter implements Targeter {
 	@Override
	/*xxx: 具有断路器功能的代理获取 */
	public <T> T target(FeignClientFactoryBean factory, Feign.Builder feign, FeignContext context,
			Target.HardCodedTarget<T> target) {
     	FeignCircuitBreaker.Builder builder = (FeignCircuitBreaker.Builder) feign;

        return builder(name, builder).target(target);
    }

    private FeignCircuitBreaker.Builder builder(String feignClientName, FeignCircuitBreaker.Builder builder) {
		return builder.circuitBreakerFactory(this.circuitBreakerFactory).feignClientName(feignClientName);
	}
}

/*xxx: 基于feign的断路器 */
public final class FeignCircuitBreaker {

    public static Builder builder() {
		return new Builder();
	}

 	public static final class Builder extends Feign.Builder {
     	//xxx: 内容略...
    }
}

# Feign负载均衡流程

@Import({ HttpClientFeignLoadBalancerConfiguration.class, OkHttpFeignLoadBalancerConfiguration.class,
		DefaultFeignLoadBalancerConfiguration.class })
/*xxx: feign的负载均衡配置 */
public class FeignLoadBalancerAutoConfiguration {
}

@ConditionalOnBean({ LoadBalancerClient.class, LoadBalancerClientFactory.class })
@ConditionalOnProperty(value = "feign.httpclient.enabled", matchIfMissing = true)
@Import(HttpClientFeignConfiguration.class)
@EnableConfigurationProperties(LoadBalancerProperties.class)
/*xxx: 基于 apacheClient的 feign的负载均衡配置 */
class HttpClientFeignLoadBalancerConfiguration {

 	@Bean
	@ConditionalOnMissingBean
	@Conditional(OnRetryNotEnabledCondition.class)
	/*xxx: 负载均衡客户端配置 */
	public Client feignClient(LoadBalancerClient loadBalancerClient, HttpClient httpClient,
			LoadBalancerProperties properties, LoadBalancerClientFactory loadBalancerClientFactory) {
		ApacheHttpClient delegate = new ApacheHttpClient(httpClient);
		return new FeignBlockingLoadBalancerClient(delegate, loadBalancerClient, properties, loadBalancerClientFactory);
	}

	@Bean
	@ConditionalOnMissingBean
	@ConditionalOnClass(name = "org.springframework.retry.support.RetryTemplate")
	@ConditionalOnBean(LoadBalancedRetryFactory.class)
	@ConditionalOnProperty(value = "spring.cloud.loadbalancer.retry.enabled", havingValue = "true",
			matchIfMissing = true)
	/*xxx: 具有负载均衡功能的feign, 它的优先级低于 ribbon, 将优先使用ribbon的负载均衡 */
	public Client feignRetryClient(LoadBalancerClient loadBalancerClient, HttpClient httpClient,
			LoadBalancedRetryFactory loadBalancedRetryFactory, LoadBalancerProperties properties,
			LoadBalancerClientFactory loadBalancerClientFactory) {
		ApacheHttpClient delegate = new ApacheHttpClient(httpClient);
		return new RetryableFeignBlockingLoadBalancerClient(delegate, loadBalancerClient, loadBalancedRetryFactory,
				properties, loadBalancerClientFactory);
	}
}

/*xxx: 负载均衡客户端 */
public class RetryableFeignBlockingLoadBalancerClient implements Client {

    /*xxx: 负载均衡客户端 */
	private final LoadBalancerClient loadBalancerClient;

    /*xxx: 负载均衡客户端工厂 */
	private final LoadBalancerClientFactory loadBalancerClientFactory;

    @Override
	/*xxx: feign的负载均衡*/
	public Response execute(Request request, Request.Options options) throws IOException {
     	//通过负载均衡，获取响应..  略
    }
}

# feign断路器流程

需要显示配置属性后生效，属性名称为feign.circuitbreaker.enabled=true

@Configuration(proxyBeanMethods = false)
/*xxx: 默认的feign客户端配置类 */
public class FeignClientsConfiguration {

 	@Configuration(proxyBeanMethods = false)
	@ConditionalOnClass(CircuitBreaker.class)
	@ConditionalOnProperty("feign.circuitbreaker.enabled")
	/*xxx: feign的断路器配置,需要主动配置 */
	protected static class CircuitBreakerPresentFeignBuilderConfiguration {
     	@Bean
		@Scope("prototype")
		@ConditionalOnMissingBean
		@ConditionalOnBean(CircuitBreakerFactory.class)
		/*xxx: 带有断路器工厂的feign*/
		public Feign.Builder circuitBreakerFeignBuilder() {
			return FeignCircuitBreaker.builder();
		}
    }
}

/*xxx: 基于feign的断路器 */
public final class FeignCircuitBreaker {

    /*xxx: 断路器工厂 */
	private CircuitBreakerFactory circuitBreakerFactory;

    /*xxx: 带有断路器功能的feign*/
	public static final class Builder extends Feign.Builder {
     	@Override
		/*xxx: 构建目标*/
		public <T> T target(Target<T> target) {
			return build(null).newInstance(target);
		}

        /*xxx: 将断路器功能，包装为一个 拦截器，实现基于断路器功能， 断路器的实现，有具体的组件实现*/
		/*xxx: 传入 fallback工厂，用于后续的操作 */
		public Feign build(final FallbackFactory<?> nullableFallbackFactory) {
			super.invocationHandlerFactory((target, dispatch) -> new FeignCircuitBreakerInvocationHandler(
					circuitBreakerFactory, feignClientName, target, dispatch, nullableFallbackFactory));
			return super.build();
		}

    }
}

/*xxx 断路器代理 */
class FeignCircuitBreakerInvocationHandler implements InvocationHandler {

    /*xxx: 断路器工厂 */
	private final CircuitBreakerFactory factory;

    @Override
	/*xxx: 执行代理 */
	public Object invoke(final Object proxy, final Method method, final Object[] args) throws Throwable {
     	/*xxx: 短路的名称 */
		String circuitName = this.feignClientName + "_" + method.getName();
		/*xxx: 通过 短路名称， 创建断路器 */
		CircuitBreaker circuitBreaker = this.factory.create(circuitName);

        /*xxx: 执行断路器, 正常的执行逻辑，也会经过断路器 */
		return circuitBreaker.run(supplier);
    }
}

# 生效条件

存在feign的环境，自动生效;

# 服务熔断

# 原理

# 自动配置定义

@ConditionalOnProperty(name = { "spring.cloud.circuitbreaker.resilience4j.enabled",
		"spring.cloud.circuitbreaker.resilience4j.blocking.enabled" }, matchIfMissing = true)
/*xxx: resilience4j自动配置*/
public class Resilience4JAutoConfiguration {

 	@Bean
	@ConditionalOnMissingBean(CircuitBreakerFactory.class)
	/*xxx: 断路器工厂 */
	public Resilience4JCircuitBreakerFactory resilience4jCircuitBreakerFactory(
			CircuitBreakerRegistry circuitBreakerRegistry, TimeLimiterRegistry timeLimiterRegistry,
			@Autowired(required = false) Resilience4jBulkheadProvider bulkheadProvider) {
		/*xxx: 依赖断路器注册表，resilience本身会装载*/
		Resilience4JCircuitBreakerFactory factory = new Resilience4JCircuitBreakerFactory(circuitBreakerRegistry,
				timeLimiterRegistry, bulkheadProvider);
		customizers.forEach(customizer -> customizer.customize(factory));
		return factory;
	}

    @Configuration(proxyBeanMethods = false)
	@ConditionalOnClass(Bulkhead.class)
	@ConditionalOnProperty(value = "spring.cloud.circuitbreaker.bulkhead.resilience4j.enabled", matchIfMissing = true)
	/*xxx: 断路器 bulkhead 配置 */
	public static class Resilience4jBulkheadConfiguration {

		@Autowired(required = false)
		private List<Customizer<Resilience4jBulkheadProvider>> bulkheadCustomizers = new ArrayList<>();

		@Bean
		public Resilience4jBulkheadProvider bulkheadProvider(ThreadPoolBulkheadRegistry threadPoolBulkheadRegistry,
				BulkheadRegistry bulkheadRegistry) {
			Resilience4jBulkheadProvider resilience4jBulkheadProvider = new Resilience4jBulkheadProvider(
					threadPoolBulkheadRegistry, bulkheadRegistry);
			bulkheadCustomizers.forEach(customizer -> customizer.customize(resilience4jBulkheadProvider));
			return resilience4jBulkheadProvider;
		}

	}
}

# 基础设施定义

断路器

/*xxx: 断路器 */
public interface CircuitBreaker {
 	default <T> T run(Supplier<T> toRun) {
		return run(toRun, throwable -> {
			throw new NoFallbackAvailableException("No fallback available.", throwable);
		});
	};

	/*xxx: 回调接口 */
	<T> T run(Supplier<T> toRun, Function<Throwable, T> fallback);
}

断路器工厂

/*xxx: 断路器工厂*/
public abstract class CircuitBreakerFactory<CONF, CONFB extends ConfigBuilder<CONF>>
		extends AbstractCircuitBreakerFactory<CONF, CONFB> {

	/*xxx: 生成断路器*/
	public abstract CircuitBreaker create(String id);

}

/*xxx: 断路器工厂 */
public abstract class AbstractCircuitBreakerFactory<CONF, CONFB extends ConfigBuilder<CONF>> {

 	/*xxx: 断路器配置 */
	private final ConcurrentHashMap<String, CONF> configurations = new ConcurrentHashMap<>();
}

# resilience4j断路器

# 纯净版使用

定义断路器配置

class Test{
    public void test(){
        CircuitBreakerConfig circuitBreakerConfig = CircuitBreakerConfig.custom()
    .failureRateThreshold(50)
    .waitDurationInOpenState(Duration.ofMillis(1000))
    .ringBufferSizeInHalfOpenState(2)
    .ringBufferSizeInClosedState(2)
    .build();
    }
}

创建断路器

class Test{
    public void test(){
        CircuitBreaker circuitBreaker = CircuitBreaker.of("myCircuitBreaker", circuitBreakerConfig);
    }
}

使用断路器包装容错的方法

class Test{
    public void test(){
        String result = CircuitBreaker.decorateFunction(circuitBreaker, () -> myService.doSomething());
    }
}

# 原理

/*xxx: resilience4j 实现的 断路器 */
public class Resilience4JCircuitBreaker implements CircuitBreaker {

 	/*xxx: 用来实现服务降级*/
	public <T> T run(Supplier<T> toRun, Function<Throwable, T> fallback) {
     	  /*xxx: 提交异步线程执行， toRun代表实际要执行的方法*/
		Supplier<Future<T>> futureSupplier = () -> executorService.submit(toRun::get);

        /*xxx: 从断路器注册表中，获取断路器*/
		io.github.resilience4j.circuitbreaker.CircuitBreaker defaultCircuitBreaker = registry.circuitBreaker(id,
				circuitBreakerConfig);
		circuitBreakerCustomizer.ifPresent(customizer -> customizer.customize(defaultCircuitBreaker));

		/*xxx: 本质上，都是通过 装饰器模式，对原有的方法进行增强*/

		if (bulkheadProvider != null) {
			/*xxx: 实际是该方法执行的*/
			return bulkheadProvider.run(id, toRun, fallback, defaultCircuitBreaker, timeLimiter);
		}
		else {
			/*xxx: 执行断路器逻辑，执行失败，或者 执行超时，则通过调用回调接口，实现熔断效果*/
			Callable<T> callable = io.github.resilience4j.circuitbreaker.CircuitBreaker
					.decorateCallable(defaultCircuitBreaker, restrictedCall);
			return Try.of(callable::call).recover(fallback).get();
		}
    }
}

# 生效条件

通过服务调用环境的代理实现
有组件实现的环境自动生效，同时支持配置进行关闭;

# 常用组件

openFeign为例

@Configuration(proxyBeanMethods = false)
/*xxx: 默认的feign客户端配置类 */
public class FeignClientsConfiguration {

 	@Configuration(proxyBeanMethods = false)
	@ConditionalOnClass(CircuitBreaker.class)
	@ConditionalOnProperty("feign.circuitbreaker.enabled")
	/*xxx: feign的断路器配置,需要主动配置 */
	protected static class CircuitBreakerPresentFeignBuilderConfiguration {

		@Bean
		@Scope("prototype")
		@ConditionalOnMissingBean({ Feign.Builder.class, CircuitBreakerFactory.class })
		public Feign.Builder defaultFeignBuilder(Retryer retryer) {
			return Feign.builder().retryer(retryer);
		}

		@Bean
		@Scope("prototype")
		@ConditionalOnMissingBean
		@ConditionalOnBean(CircuitBreakerFactory.class)
		/*xxx: 带有断路器工厂的feign*/
		public Feign.Builder circuitBreakerFeignBuilder() {
			return FeignCircuitBreaker.builder();
		}

	}
}

/*xxx: 基于feign的断路器 */
public final class FeignCircuitBreaker {

    /*xxx: 带有断路器功能的feign*/
	public static final class Builder extends Feign.Builder {
     	@Override
		/*xxx: 构建目标*/
		public <T> T target(Target<T> target) {
			return build(null).newInstance(target);
		}

		/*xxx: 将断路器功能，包装为一个 拦截器，实现基于断路器功能， 断路器的实现，有具体的组件实现*/
		public Feign build(final FallbackFactory<?> nullableFallbackFactory) {
			super.invocationHandlerFactory((target, dispatch) -> new FeignCircuitBreakerInvocationHandler(
					circuitBreakerFactory, feignClientName, target, dispatch, nullableFallbackFactory));
			return super.build();
		}
    }
}

# 微服务网关

由于设计的背景知识太多,详见springWebflux章节
