Spring框架(百度百科)

概述

• Spring框架是由于软件开发的复杂性而创建的。

• Spring使用的是基本的JavaBean来完成以前只可能由EJB完成的事情。

• 然而，Spring的用途不仅仅限于服务器端的开发。

• 从简单性、可测试性和松耦合性角度而言，绝大部分Java应用都可以从Spring中受益。

起源

• j2EE应用程序开发的复杂性:

  • J2EE应用程序的广泛实现是在1999年和2000年开始的，它的出现带来了诸如事务管理之类的核心中间层概念的标准化，但是在实践中并没有获得绝对的成功，因为开发效率，开发难度和实际的性能都令人失望。

• EJB学习的复杂性：

  • 在EJB开始的学习和应用非常的艰苦，很多东西都不能一下子就很容易的理解。
  • 学习EJB的高昂代价，和极低的开发效率，极高的资源消耗，都造成了EJB的使用困难。

• Spring的一个最大的目的就是使JAVA EE开发更加容易。Spring是一个提供了更完善开发环境的一个框架，可以为POJO(Plain Ordinary Java Object)对象提供企业级的服务。

• Spring的形成，最初来自Rod Jahnson所著的一本很有影响力的书籍《Expert One-on-One J2EE Design and Development》，就是在这本书中第一次出现了Spring的一些核心思想，该书出版于2002年。

核心特点

• 轻量： 大小与开销两方面都是轻量的。完整的Spring框架可以在一个大小只有1MB多的JAR文件里发布。并且Spring所需的处理开销也是微不足道的。

• 控制反转： Spring通过一种称作控制反转（IoC）的技术促进了松耦合。一个对象依赖的其它对象会通过被动的方式传递进来，而不是这个对象自己创建或者查找依赖对象。不是对象从容器中查找依赖，而是容器在对象初始化时不等对象请求就主动将依赖传递给它。

• 面向切面： Spring提供了面向切面编程的丰富支持，允许通过分离应用的业务逻辑与系统级服务（例如审计（auditing）和事务（transaction）管理）进行内聚性的开发。

• 容器： Spring包含并管理应用对象的配置和生命周期，在这个意义上它是一种容器，你可以配置你的每个bean如何被创建——基于一个可配置原型（prototype），你的bean可以创建一个单独的实例或者每次需要时都生成一个新的实例——以及它们是如何相互关联的。

• 框架： Spring可以将简单的组件配置、组合成为复杂的应用。

模块组成(7个模块)

1. 核心容器(Spring-Core): 最基本的概念是： BeanFactory. 它使得Spring成为了一个容器;

2. 应用上下文模块(Spring-Context): 它使得Spring成为了一个框架. 扩展成为了ApplicationContext,增加了对 国际化，消息，事件传播及验证的支持;同时，他也提供了很多企业服务,如邮件，JNDI,调度等;

3. 面向切面模块(Spring-AOP): 这个模块是在Spring应用中实现切面编程的基础。为了确保Spring与其它AOP框架的互用性，Spring的AOP支持基于AOP联盟定义的API。Spring的AOP模块也将元数据编程引入了Spring。

4. JDBC抽象和DAO模块(Spring-DAO): Spring的JDBC和DAO模块抽取了这些重复代码，因此你可以保持你的数据库访问代码干净简洁，并且可以防止因关闭数据库资源失败而引起的问题。这个模块还使用了Spring的AOP模块为Spring应用中的对象提供了事务管理服务。

5. 对象/关系映射集成模块(Spring-ORM): Spring并不试图实现它自己的ORM解决方案，而是为几种流行的ORM框架提供了集成方案，包括Hibernate、JDO和iBATIS SQL映射。

6. Web模块(Spring-Web): Web上下文模块建立于应用上下文模块之上，提供了一个适合于Web应用的上下文。另外，这个模块还提供了一些面向服务支持。

7. MVC模块(Spring-WebMVC): Spring为构建Web应用提供了一个功能全面的MVC框架。虽然Spring可以很容易地与其它MVC框架集成，例如Struts，但Spring的MVC框架使用IoC对控制逻辑和业务对象提供了完全的分离。

spring核心容器

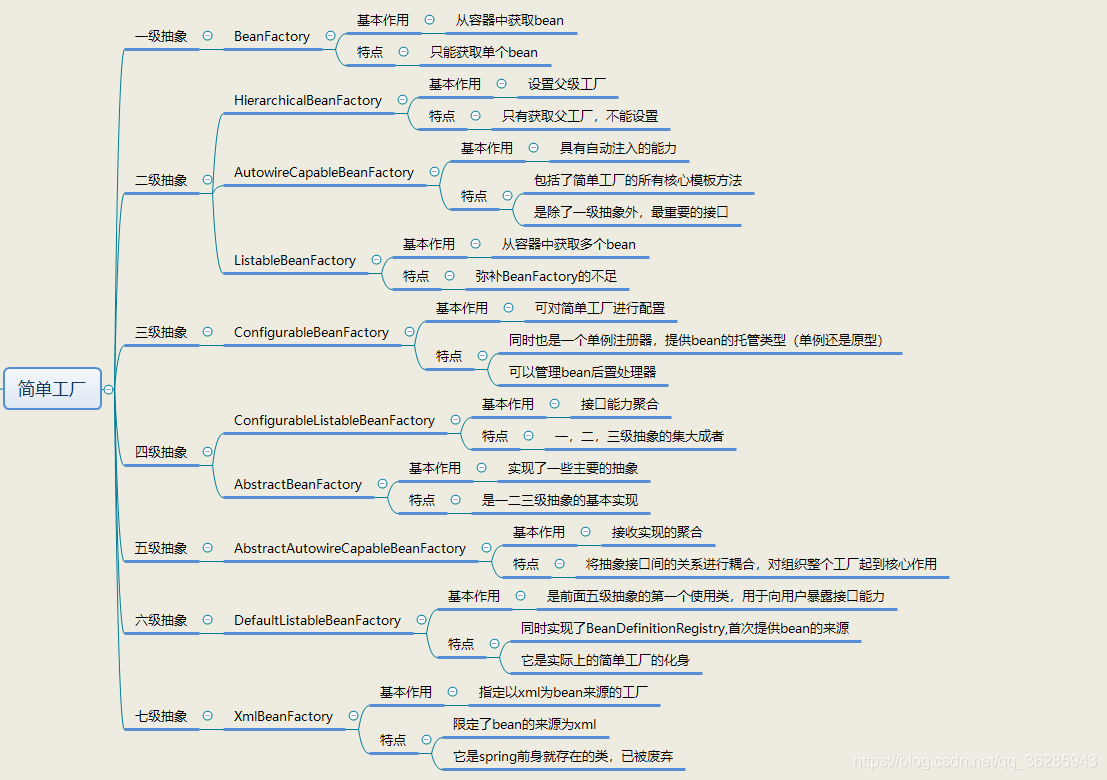

核心容器抽象结构

public interface BeanFactory {

    /*xxx: 根据指定的名称，从bean容器获取bean*/
    Object getBean(String name) throws BeansException;

    /*xxx: 根据指定的类型获取bean */
    <T> T getBean(Class<T> requiredType) throws BeansException;

    /*xxx: 检测指定名称的bean是否是单例*/
    boolean isSingleton(String name) throws NoSuchBeanDefinitionException;

    /*xxx: 检测指定名称的bean是否是原型模式*/
    boolean isPrototype(String name) throws NoSuchBeanDefinitionException;

    //省略其它抽象...
}

public interface HierarchicalBeanFactory extends BeanFactory {

    /*xxx: 获取父容器*/
    BeanFactory getParentBeanFactory();

    /*xxx: 本层容器是否包含指定名称的bean */
    boolean containsLocalBean(String name);

}

public interface AutowireCapableBeanFactory extends BeanFactory {

    /*xxx: 创建bean实例*/
    <T> T createBean(Class<T> beanClass) throws BeansException;

    /*xxx: 注入已经存在的bean*/
    void autowireBean(Object existingBean) throws BeansException;

    /*xxx: 容器层面初始化bean*/
    Object initializeBean(Object existingBean, String beanName) throws BeansException;

    /*xxx: bean后置处理器，在容器层面的初始化前，调用*/
    Object applyBeanPostProcessorsBeforeInitialization(Object existingBean, String beanName)
    			throws BeansException;

    /*xxx: bean后置处理器，在容器层面的初始化后，调用*/
    Object applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName)
    			throws BeansException;

    //省略其它抽象...
}

public interface ListableBeanFactory extends BeanFactory {

    /*xxx: 获取容器中 beanDefinition的数量*/
    int getBeanDefinitionCount();

    /*xxx: 获取容器中 beanDefinition的名称数组*/
    String[] getBeanDefinitionNames();

    /*xxx: 获取指定注解的bean */
    Map<String, Object> getBeansWithAnnotation(Class<? extends Annotation> annotationType) throws BeansException;

    /*xxx: 获取指定bean的注解集合*/
    <A extends Annotation> A findAnnotationOnBean(String beanName, Class<A> annotationType)
    			throws NoSuchBeanDefinitionException;

    //省略其它抽象...
}

public interface ConfigurableBeanFactory extends HierarchicalBeanFactory, SingletonBeanRegistry {

    /*xxx: 设置父容器*/
    void setParentBeanFactory(BeanFactory parentBeanFactory) throws IllegalStateException;

    /*xxx: 添加bean的后置处理器*/
    void addBeanPostProcessor(BeanPostProcessor beanPostProcessor);

    /*xxx: 注册指定的领域*/
    void registerScope(String scopeName, Scope scope);

    /*xxx: 为给定的bean，注册依赖的bean*/
    void registerDependentBean(String beanName, String dependentBeanName);

    //省略其它抽象...
}

public interface SingletonBeanRegistry {

    /*xxx: 根据名称，注册单例对象*/
    void registerSingleton(String beanName, Object singletonObject);

    /*xxx: 根据名称，获取单例对象*/
    Object getSingleton(String beanName);

    /*xxx: 获取单例锁*/
    Object getSingletonMutex();

    //省略其它抽象...
}

public interface ConfigurableListableBeanFactory
		extends ListableBeanFactory, AutowireCapableBeanFactory, ConfigurableBeanFactory {

    	/*xxx: 自动注入时，忽略给定的类*/
    	void ignoreDependencyType(Class<?> type);

        /*xxx: 自动注入时，忽略给定的接口*/
        void ignoreDependencyInterface(Class<?> ifc);

        /*xxx: 冻结所有的bean定义信息，不允许被修改*/
        void freezeConfiguration();

        //省略其它抽象...
}

public abstract class AbstractBeanFactory extends FactoryBeanRegistrySupport implements ConfigurableBeanFactory {

    protected <T> T doGetBean(
    			String name, @Nullable Class<T> requiredType, @Nullable Object[] args, boolean typeCheckOnly)
    			throws BeansException {
    		/*xxx: 如果是别名的话，就转为实际的名称*/
    		String beanName = transformedBeanName(name);
    		Object bean;
    		// Eagerly check singleton cache for manually registered singletons.
    		/*xxx: 先从手动注册的单例缓存中，进行查找*/
    		Object sharedInstance = getSingleton(beanName);
    		if (sharedInstance != null && args == null) {
    			if (logger.isTraceEnabled()) {
    				if (isSingletonCurrentlyInCreation(beanName)) {
    					logger.trace("Returning eagerly cached instance of singleton bean '" + beanName +
    							"' that is not fully initialized yet - a consequence of a circular reference");
    				}
    				else {
    					logger.trace("Returning cached instance of singleton bean '" + beanName + "'");
    				}
    			}/*xxx: 实例是手动注册的，并且没有指定初始化参数*/
    			bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
    		}

    		else {
    			// Fail if we're already creating this bean instance:
    			// We're assumably within a circular reference.
    			/*xxx: 如果当前的bean正在创建中，则抛错*/
    			if (isPrototypeCurrentlyInCreation(beanName)) {
    				throw new BeanCurrentlyInCreationException(beanName);
    			}

    			// Check if bean definition exists in this factory.
    			/*xxx: 获取父容器*/
    			BeanFactory parentBeanFactory = getParentBeanFactory();
    			/*xxx: 如果当前的容器没有找到bean,并且父容器存在，则从父容器中找*/
    			if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
    				// Not found -> check parent.
    				String nameToLookup = originalBeanName(name);
    				/*xxx: 如果父容器是抽象容器的子类，则通过调用全参的方式进行获取*/
    				if (parentBeanFactory instanceof AbstractBeanFactory) {
    					return ((AbstractBeanFactory) parentBeanFactory).doGetBean(
    							nameToLookup, requiredType, args, typeCheckOnly);
    				}
    				/*xxx： 否则，通过顶级容器的参数进行获取*/
    				else if (args != null) {
    					// Delegation to parent with explicit args.
    					return (T) parentBeanFactory.getBean(nameToLookup, args);
    				}
    				else if (requiredType != null) {
    					// No args -> delegate to standard getBean method.
    					return parentBeanFactory.getBean(nameToLookup, requiredType);
    				}
    				else {
    					return (T) parentBeanFactory.getBean(nameToLookup);
    				}
    			}
    			/*xxx: 如果父容器和子容器都没有找到相应的bean，并且没有指定类型检查*/
    			if (!typeCheckOnly) {
    				/*xxx: 则标记当前的bean名称已经被创建过*/
    				markBeanAsCreated(beanName);
    			}
    			/*xxx: 实例化钩子*/
    			StartupStep beanCreation = this.applicationStartup.start("spring.beans.instantiate")
    					.tag("beanName", name);
    			try {
    				if (requiredType != null) {
    					beanCreation.tag("beanType", requiredType::toString);
    				}
    				/*xxx: 以给定的名称，获取 RootBeanDefinition,获取不到，则会直接抛错*/
    				RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
    				checkMergedBeanDefinition(mbd, beanName, args);

    				// Guarantee initialization of beans that the current bean depends on.
    				/*xxx: 获取beanDefinition的所有依赖项的bean的名称 */
    				String[] dependsOn = mbd.getDependsOn();
    				if (dependsOn != null) {
    						/*xxx: 遍历依赖项*/
    					for (String dep : dependsOn) {
    						if (isDependent(beanName, dep)) {
    							/*xxx: 如果不是依赖项，则抛错*/
    							throw new BeanCreationException(mbd.getResourceDescription(), beanName,
    									"Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
    						}
    						/*xxx: 是依赖项，则进行注册*/
    						registerDependentBean(dep, beanName);
    						try {
    							/*xxx: 同时，初始化依赖项，如果依赖的bean有问题，则进行抛错*/
    							getBean(dep);
    						}
    						catch (NoSuchBeanDefinitionException ex) {
    							throw new BeanCreationException(mbd.getResourceDescription(), beanName,
    									"'" + beanName + "' depends on missing bean '" + dep + "'", ex);
    						}
    					}
    				}

    				// Create bean instance.
    				/*xxx: 创建本身的bean实例，如果是单例模式*/
    				if (mbd.isSingleton()) {
    					sharedInstance = getSingleton(beanName, () -> {
    						try {
    							/*xxx: 首次调用时，需要创建bean,创建后，即进行缓存 */
    							return createBean(beanName, mbd, args);
    						}
    						catch (BeansException ex) {
    							// Explicitly remove instance from singleton cache: It might have been put there
    							// eagerly by the creation process, to allow for circular reference resolution.
    							// Also remove any beans that received a temporary reference to the bean.
    							destroySingleton(beanName);
    							throw ex;
    						}
    					}); /*xxx: 获取bean的对象实例，会自动处理工厂模式*/
    					bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
    				}
    				/*xxx: 原型模式，每次都会创建一个新的实例，该新实例也会自动处理工厂模式 */
    				else if (mbd.isPrototype()) {
    					// It's a prototype -> create a new instance.
    					Object prototypeInstance = null;
    					try {
    						beforePrototypeCreation(beanName);
    						prototypeInstance = createBean(beanName, mbd, args);
    					}
    					finally {
    						afterPrototypeCreation(beanName);
    					}
    					bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
    				}

    				else {  /*xxx: 如果既非 单例模式，也非原型模式，则按照特定的领域规则进行处理*/
    					String scopeName = mbd.getScope();
    					if (!StringUtils.hasLength(scopeName)) {
    						throw new IllegalStateException("No scope name defined for bean ´" + beanName + "'");
    					}
    					Scope scope = this.scopes.get(scopeName);
    					if (scope == null) {
    						throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
    					}
    					try {
    						Object scopedInstance = scope.get(beanName, () -> {
    							beforePrototypeCreation(beanName);
    							try {
    								return createBean(beanName, mbd, args);
    							}
    							finally {
    								afterPrototypeCreation(beanName);
    							}
    						});
    						bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
    					}
    					catch (IllegalStateException ex) {
    						throw new ScopeNotActiveException(beanName, scopeName, ex);
    					}
    				}
    			}
    			catch (BeansException ex) {
    				beanCreation.tag("exception", ex.getClass().toString());
    				beanCreation.tag("message", String.valueOf(ex.getMessage()));
    				cleanupAfterBeanCreationFailure(beanName);
    				throw ex;
    			}
    			finally {
    				beanCreation.end();
    			}
    		}
    		// Check if required type matches the type of the actual bean instance.
    		/*xxx: 如果有指定bean的类型，则对其类型进行检查，如果不匹配，则*/
    		if (requiredType != null && !requiredType.isInstance(bean)) {
    			try {/*xxx: 调用类型转换服务，转换成指定的实例类型*/
    				T convertedBean = getTypeConverter().convertIfNecessary(bean, requiredType);
    				if (convertedBean == null) {
    					throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
    				}
    				return convertedBean;
    			}
    			catch (TypeMismatchException ex) {
    				if (logger.isTraceEnabled()) {
    					logger.trace("Failed to convert bean '" + name + "' to required type '" +
    							ClassUtils.getQualifiedName(requiredType) + "'", ex);
    				}
    				throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
    			}
    		}
    		return (T) bean;
    	}

    protected abstract boolean containsBeanDefinition(String beanName);

    protected abstract BeanDefinition getBeanDefinition(String beanName) throws BeansException;

    protected abstract Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
    			throws BeanCreationException;

    //省略其它抽象...
}

public abstract class AbstractAutowireCapableBeanFactory extends AbstractBeanFactory
		implements AutowireCapableBeanFactory {

        /*xxx: 初始化bean的时候，会自动调用生成bean的相关回调操作*/
        protected Object initializeBean(String beanName, Object bean, @Nullable RootBeanDefinition mbd) {
        		/*xxx: 在实例化bean的时候，调用了 bean后置处理器*/
        		if (System.getSecurityManager() != null) {
        			AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
        				invokeAwareMethods(beanName, bean);
        				return null;
        			}, getAccessControlContext());
        		}
        		else {
        			/*xxx: 1.首先执行特定的感知器，默认情况下，指挥处理  beanName,classLoader,beanFactory.
        			   其它已经存在的核心感知器(边缘感知器通过其它bean后置处理器实现)是通过 bean后置处理器完成的，具体而言，是由  ApplicationContextAwareProcessor 完成的（并且是 前置处理）。 它们默认情况下会在高级容器中生效  */
        			invokeAwareMethods(beanName, bean);
        		}

        		Object wrappedBean = bean;
        		if (mbd == null || !mbd.isSynthetic()) {
        			/*xxx: 2。执行bean后置处理器的初始化前置方法*/
        			wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
        		}

        		try {
        			/*xxx: 3.执行初始化方法： InitializingBean接口方法  或者 用户自定义的 init方法*/
        			invokeInitMethods(beanName, wrappedBean, mbd);
        		}
        		catch (Throwable ex) {
        			throw new BeanCreationException(
        					(mbd != null ? mbd.getResourceDescription() : null),
        					beanName, "Invocation of init method failed", ex);
        		}
        		if (mbd == null || !mbd.isSynthetic()) {
        			/*xxx: 4.执行bean后置处理器的后置方法*/
        			wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
        		}

        		return wrappedBean;
        	}

        @Override
        public Object applyBeanPostProcessorsBeforeInitialization(Object existingBean, String beanName)
        			throws BeansException {

        		Object result = existingBean;
        		for (BeanPostProcessor processor : getBeanPostProcessors()) {
        			Object current = processor.postProcessBeforeInitialization(result, beanName);
        			/*xxx: bean后置处理器前置方法，如果返回空，意味着前置处理中断*/
        			if (current == null) {
        				return result;
        			}
        			result = current;
        		}
        		return result;
        	}

        @Override
        /*xxx: 该方法是应用于所有的后置处理器*/
        public Object applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName)
        			throws BeansException {

        		Object result = existingBean;
        		for (BeanPostProcessor processor : getBeanPostProcessors()) {
        			Object current = processor.postProcessAfterInitialization(result, beanName);
        			/*xxx: bean实例后置处理，如果返回空，也意味着中断后置处理*/
        			if (current == null) {
        				return result;
        			}
        			result = current;
        		}
        		return result;
        	}

        @Override
        	/*xxx: 创建bean实例*/
        protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
        			throws BeanCreationException {

        		if (logger.isTraceEnabled()) {
        			logger.trace("Creating instance of bean '" + beanName + "'");
        		}
        		RootBeanDefinition mbdToUse = mbd;

        		// Make sure bean class is actually resolved at this point, and
        		// clone the bean definition in case of a dynamically resolved Class
        		// which cannot be stored in the shared merged bean definition.
        		Class<?> resolvedClass = resolveBeanClass(mbd, beanName);
        		if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
        			mbdToUse = new RootBeanDefinition(mbd);
        			mbdToUse.setBeanClass(resolvedClass);
        		}

        		// Prepare method overrides.
        		try {
        			mbdToUse.prepareMethodOverrides();
        		}
        		catch (BeanDefinitionValidationException ex) {
        			throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(),
        					beanName, "Validation of method overrides failed", ex);
        		}

        		try {
        			// Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
        			/*xxx: 如果bean的实例后置处理器存在，则bean实例的实例化是通过 bean实例后置处理器实现的*/
        			Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
        			if (bean != null) {
        				return bean;
        			}
        		}
        		catch (Throwable ex) {
        			throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName,
        					"BeanPostProcessor before instantiation of bean failed", ex);
        		}

        		try {
        			/*xxx: 实际创建bean的方法*/
        			Object beanInstance = doCreateBean(beanName, mbdToUse, args);
        			if (logger.isTraceEnabled()) {
        				logger.trace("Finished creating instance of bean '" + beanName + "'");
        			}
        			return beanInstance;
        		}
        		catch (BeanCreationException | ImplicitlyAppearedSingletonException ex) {
        			// A previously detected exception with proper bean creation context already,
        			// or illegal singleton state to be communicated up to DefaultSingletonBeanRegistry.
        			throw ex;
        		}
        		catch (Throwable ex) {
        			throw new BeanCreationException(
        					mbdToUse.getResourceDescription(), beanName, "Unexpected exception during bean creation", ex);
        		}
        	}

        //省略其它抽象...

}
public class DefaultListableBeanFactory extends AbstractAutowireCapableBeanFactory
		implements ConfigurableListableBeanFactory, BeanDefinitionRegistry, Serializable {

    @Override
    public BeanDefinition getBeanDefinition(String beanName) throws NoSuchBeanDefinitionException {
    		/*xxx: 从beanDefinitionMap缓存中进行获取，获取不到则直接报错*/
    		BeanDefinition bd = this.beanDefinitionMap.get(beanName);
    		if (bd == null) {
    			if (logger.isTraceEnabled()) {
    				logger.trace("No bean named '" + beanName + "' found in " + this);
    			}
    			throw new NoSuchBeanDefinitionException(beanName);
    		}
    		return bd;
    	}

    @Override
    public void preInstantiateSingletons() throws BeansException {
    		if (logger.isTraceEnabled()) {
    			logger.trace("Pre-instantiating singletons in " + this);
    		}

    		// Iterate over a copy to allow for init methods which in turn register new bean definitions.
    		// While this may not be part of the regular factory bootstrap, it does otherwise work fine.
    		List<String> beanNames = new ArrayList<>(this.beanDefinitionNames);

    		// Trigger initialization of all non-lazy singleton beans...
    		/*xxx: 所有不是lazy-init的单例，都会在这里进行实例化*/
    		/*xxx: 这里的代码经过 编译优化后，会成为一个 需要维护 7层的循环*/

    		/*xxx: 遍历所有的bean名称 */
    		for (String beanName : beanNames) {
    			RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
    			/*xxx: 如果被遍历的元素bean，不是抽象的，并且是单例，同时不是 lazyInit的时候*/
    			if (!bd.isAbstract() && bd.isSingleton() && !bd.isLazyInit()) {
    				/*xxx: 如果是工厂bean，通过getObject获取实际的bean*/
    				if (isFactoryBean(beanName)) {
    					/*xxx: 如果是工厂bean,则先将该工厂bean拿到，工厂bean的名称 为&+ bean的名称*/
    					Object bean = getBean(FACTORY_BEAN_PREFIX + beanName);
    					/*xxx: 拿到工厂bean后，进一步验证确保代码稳健*/
    					if (bean instanceof FactoryBean) {
    						/*xxx: 强转为 FactoryBean,这个在多层级抽象体系里特别重要，
    						   在强转之前，前面通常有一个instanceof操作符，确保稳健性*/
    						FactoryBean<?> factory = (FactoryBean<?>) bean;
    						boolean isEagerInit;
    						if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {
    							isEagerInit = AccessController.doPrivileged(
    									(PrivilegedAction<Boolean>) ((SmartFactoryBean<?>) factory)::isEagerInit,
    									getAccessControlContext());
    						}
    						else {
    							/*xxx: 当该工厂bean为智能工厂bean，同时它的属性为 eagerInit时，才能进行进行 实例化*/
    							isEagerInit = (factory instanceof SmartFactoryBean &&
    									((SmartFactoryBean<?>) factory).isEagerInit());
    						}
    						if (isEagerInit) {
    							getBean(beanName);
    						}
    						/*xxx: 否则，则只实例化 工厂bean，而不获取实际的bean*/
    					}
    				}
    				else {
    					/*xxx: 否则直接调用getBean触发实例化*/
    					getBean(beanName);
    				}
    			}
    		}

    		// Trigger post-initialization callback for all applicable beans...
    		/*xxx: 触发所有的后置实例化回调为所有匹配的bean*/
    		for (String beanName : beanNames) {
    			Object singletonInstance = getSingleton(beanName);
    			/*xxx: 对所有单例，进行实例化后置检测*/
    			/*xxx: 当该单例为 智能实例化单例时*/
    			if (singletonInstance instanceof SmartInitializingSingleton) {
    				StartupStep smartInitialize = this.getApplicationStartup().start("spring.beans.smart-initialize")
    						.tag("beanName", beanName);
    				SmartInitializingSingleton smartSingleton = (SmartInitializingSingleton) singletonInstance;
    				if (System.getSecurityManager() != null) {
    					AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
    						smartSingleton.afterSingletonsInstantiated();
    						return null;
    					}, getAccessControlContext());
    				}
    				else {
    					/*xxx: 则对这个单例调用，实例化后置回调，只针对单例进行处理*/
    					smartSingleton.afterSingletonsInstantiated();
    				}
    				smartInitialize.end();
    			}
    		}
    	}

    @Nullable
	public Object doResolveDependency(DependencyDescriptor descriptor, @Nullable String beanName,
			@Nullable Set<String> autowiredBeanNames, @Nullable TypeConverter typeConverter) throws BeansException {

		InjectionPoint previousInjectionPoint = ConstructorResolver.setCurrentInjectionPoint(descriptor);
		try {
			Object shortcut = descriptor.resolveShortcut(this);
			if (shortcut != null) {
				return shortcut;
			}

			Class<?> type = descriptor.getDependencyType();
			/*xxx: 注入bean时，该方法返回空，注入属性时，原样返回 */
			Object value = getAutowireCandidateResolver().getSuggestedValue(descriptor);
			if (value != null) {
				/*xxx: 如果需要注入的类型为String,则进行属性注入*/
				if (value instanceof String) {
					String strVal = resolveEmbeddedValue((String) value);
					BeanDefinition bd = (beanName != null && containsBean(beanName) ?
							getMergedBeanDefinition(beanName) : null);
					value = evaluateBeanDefinitionString(strVal, bd);
				}
				TypeConverter converter = (typeConverter != null ? typeConverter : getTypeConverter());
				try {
					/*xxx: 否则使用类型转换器进行转换*/
					return converter.convertIfNecessary(value, type, descriptor.getTypeDescriptor());
				}
				catch (UnsupportedOperationException ex) {
					// A custom TypeConverter which does not support TypeDescriptor resolution...
					return (descriptor.getField() != null ?
							converter.convertIfNecessary(value, type, descriptor.getField()) :
							converter.convertIfNecessary(value, type, descriptor.getMethodParameter()));
				}
			}
			/*xxx: 解析是否是注入多个bean， 即 待注入的类型为  数组，Map,或者Collection子类 */
			Object multipleBeans = resolveMultipleBeans(descriptor, beanName, autowiredBeanNames, typeConverter);
			if (multipleBeans != null) {
				return multipleBeans;
			}
			/*xxx: 查询待注入的候选bean */
			Map<String, Object> matchingBeans = findAutowireCandidates(beanName, type, descriptor);
			if (matchingBeans.isEmpty()) {
				if (isRequired(descriptor)) {
					raiseNoMatchingBeanFound(type, descriptor.getResolvableType(), descriptor);
				}
				return null;
			}

			String autowiredBeanName;
			Object instanceCandidate;
			/*xxx: 如果从容器中，查找到了多个符合条件的bean*/
			if (matchingBeans.size() > 1) {
				/*xxx: 调用该方法，决定采用哪个bean */
				autowiredBeanName = determineAutowireCandidate(matchingBeans, descriptor);
				if (autowiredBeanName == null) {
					if (isRequired(descriptor) || !indicatesMultipleBeans(type)) {
						return descriptor.resolveNotUnique(descriptor.getResolvableType(), matchingBeans);
					}
					else {
						// In case of an optional Collection/Map, silently ignore a non-unique case:
						// possibly it was meant to be an empty collection of multiple regular beans
						// (before 4.3 in particular when we didn't even look for collection beans).
						return null;
					}
				}
				instanceCandidate = matchingBeans.get(autowiredBeanName);
			}
			else {
				// We have exactly one match.
				Map.Entry<String, Object> entry = matchingBeans.entrySet().iterator().next();
				autowiredBeanName = entry.getKey();
				instanceCandidate = entry.getValue();
			}

			if (autowiredBeanNames != null) {
				autowiredBeanNames.add(autowiredBeanName);
			}
			if (instanceCandidate instanceof Class) {
				instanceCandidate = descriptor.resolveCandidate(autowiredBeanName, type, this);
			}
			Object result = instanceCandidate;
			if (result instanceof NullBean) {
				if (isRequired(descriptor)) {
					raiseNoMatchingBeanFound(type, descriptor.getResolvableType(), descriptor);
				}
				result = null;
			}
			if (!ClassUtils.isAssignableValue(type, result)) {
				throw new BeanNotOfRequiredTypeException(autowiredBeanName, type, instanceCandidate.getClass());
			}
			return result;
		}
		finally {
			ConstructorResolver.setCurrentInjectionPoint(previousInjectionPoint);
		}
	}

    @Nullable
	protected String determineAutowireCandidate(Map<String, Object> candidates, DependencyDescriptor descriptor) {
		Class<?> requiredType = descriptor.getDependencyType();
		/*xxx: 优先根据类型进行Primary的查找*/
		String primaryCandidate = determinePrimaryCandidate(candidates, requiredType);
		if (primaryCandidate != null) {
			return primaryCandidate;
		}
		/*xxx: 其次，再查找高优先级的 候选项 */
		String priorityCandidate = determineHighestPriorityCandidate(candidates, requiredType);
		if (priorityCandidate != null) {
			return priorityCandidate;
		}
		// Fallback
		/*xxx: 都没找到，则用名称进行匹配*/
		for (Map.Entry<String, Object> entry : candidates.entrySet()) {
			String candidateName = entry.getKey();
			Object beanInstance = entry.getValue();
			if ((beanInstance != null && this.resolvableDependencies.containsValue(beanInstance)) ||
					matchesBeanName(candidateName, descriptor.getDependencyName())) {
				return candidateName;
			}
		}
		return null;
	}
    //省略其它抽象...
}

public interface BeanDefinitionRegistry extends AliasRegistry {

   /*xxx: 根据指定的名称，注册beanDefinition*/
   void registerBeanDefinition(String beanName, BeanDefinition beanDefinition)
    			throws BeanDefinitionStoreException;

    /*xxx: 根据指定名称，获取 beanDefinition */
    BeanDefinition getBeanDefinition(String beanName) throws NoSuchBeanDefinitionException;

    //省略其它抽象...
}

核心容器抽象层次说明

• 简单工厂

核心容器核心作用

• 提供Bean的托管功能

  • 通过单例注册表，完成单例对象的管理
  • 通过BeanDefinition注册表，完成对类的托管;

• 提供依赖注入的功能

• 提供bean对象的动态创建及销毁功能

• 是其它高级容器的基础

Spring应用上下文容器

应用上下文容器抽象结构

public interface ApplicationContext extends EnvironmentCapable, ListableBeanFactory, HierarchicalBeanFactory,
		MessageSource, ApplicationEventPublisher, ResourcePatternResolver {

    @Nullable
    /*xxx: 获取父上下文*/
    ApplicationContext getParent();
    //省略其它抽象...
}

public interface ApplicationEventPublisher {

    /*xxx: 发布事件 （事件类型）*/
    default void publishEvent(ApplicationEvent event) {
    		publishEvent((Object) event);
    }

    /*xxx: 发布事件（对象类型）*/
    void publishEvent(Object event);

}

public interface EnvironmentCapable {

    /*xxx: 获取应用的环境配置信息*/
    Environment getEnvironment();
}

public interface ResourcePatternResolver extends ResourceLoader {

    /*xxx: 获取路径下的资源数组*/
    Resource[] getResources(String locationPattern) throws IOException;
}

public interface ConfigurableApplicationContext extends ApplicationContext, Lifecycle, Closeable {

    /*xxx: 设置environment对象*/
    void setEnvironment(ConfigurableEnvironment environment);

    /*xxx: 添加容器后置处理器*/
    /*xxx: 容器后置处理器，在任何bean定义得到应用。要在上下文配置期间调用的*/
    void addBeanFactoryPostProcessor(BeanFactoryPostProcessor postProcessor);

    /*xxx: 添加应用监听器 */
    void addApplicationListener(ApplicationListener<?> listener);

    /*xxx: 由于这是一个启动方法，如果失败它应该销毁已经创建的单例，则避免悬而未决的资源。换句话说，在调用之后在这个方法中，要么全部实例化，要么根本不实例化*/
    /*xxx: 加载或刷新配置的持久表示形式，这将可能来自基于Java的配置、XML文件、属性文件和关系数据库模式或其他格式。*/
    void refresh() throws BeansException, IllegalStateException;

    @Override
    /*xxx: 关闭此应用程序上下文，释放所持有的资源和锁这包括销毁所有缓存的单例bean。*/
    void close();

    /*xxx: 判断当前的上下文是否为活跃状态*/
    boolean isActive();

    /*xxx: 获取当前上下文的内部bean容器*/
    ConfigurableListableBeanFactory getBeanFactory() throws IllegalStateException;

    //省略其它抽象...
}

public interface WebApplicationContext extends ApplicationContext {

    @Nullable
    /*xxx: 获取标准Servlet API规范的 servlet上下文*/
    ServletContext getServletContext();

    //省略其它抽象...
}

public abstract class AbstractApplicationContext extends DefaultResourceLoader
		implements ConfigurableApplicationContext {

    @Override
    	public void refresh() throws BeansException, IllegalStateException {
    		/*xxx: 同步锁*/
    		synchronized (this.startupShutdownMonitor) {
    			StartupStep contextRefresh = this.applicationStartup.start("spring.context.refresh");

    			// Prepare this context for refreshing.
    			/*xxx:准备用于刷新的上下文,该方法执行后，当前上下文的 actived 状态为真，environment被初始化。  同时，初始化应用启动前的应用监听器. */
    			prepareRefresh();

    			// Tell the subclass to refresh the internal bean factory.
    			/*xxx: 通知子类，刷新内部实际的bean工厂。 变更上下文的启动状态 refreshed 为true。  同时，在这个阶段，会进行beanDefinition的加载，包括 xml 以及 annotation */
    			ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

    			// Prepare the bean factory for use in this context.
    			/*xxx: 准备这个上下文即将使用的bean工厂。 主要就是设置 bean容器运行所必需的依赖，同时新增几个bean后置处理器，设置忽略注入的接口，以及设置特定的全局依赖（包括environment,startupDate等）*/
    			prepareBeanFactory(beanFactory);

    			try {
    				// Allows post-processing of the bean factory in context subclasses.
    				/*xxx: 标准bean工厂准备完后，为相应的子类提供bean工厂后置的处理
    				*  比如与web环境相关的上下文，会添加 ServletContextAwareProcessor*/
    				postProcessBeanFactory(beanFactory);

    				StartupStep beanPostProcess = this.applicationStartup.start("spring.context.beans.post-process");
    				// Invoke factory processors registered as beans in the context.
    				/*xxx: 处理容器后置处理器，代理给PostProcessorRegistrationDelegate 进行处理*/
    				invokeBeanFactoryPostProcessors(beanFactory);

    				// Register bean processors that intercept bean creation.
    				/*xxx: 注册bean后置处理器，将容器中的BeanFactory中定义的Bean后置处理器应用于bean容器*/
    				registerBeanPostProcessors(beanFactory);
    				beanPostProcess.end();

    				// Initialize message source for this context.
    				/*xxx: 初始化这个上下文的数据源，也就是将messageSource进行实例化*/
    				initMessageSource();

    				// Initialize event multicaster for this context.
    				/*xxx:  初始化这个上下文的 应用事件广播器，既配置到上下文中，也将此容器注册到 bean容器中*/
    				initApplicationEventMulticaster();

    				// Initialize other special beans in specific context subclasses.
    				/*xxx: 初始化其它在子上下文中的特定bean*/
    				onRefresh();

    				// Check for listener beans and register them.
    				/*xxx: 注册监听器*/
    				registerListeners();

    				// Instantiate all remaining (non-lazy-init) singletons.
    				/*xxx: 实例化所有 不需要lazy-init的bean，以及所有的SmartInitializingSingleton*/
    				finishBeanFactoryInitialization(beanFactory);

    				// Last step: publish corresponding event.
    				/*xxx:执行生命周期处理器处理*/
    				finishRefresh();
    			}

    			catch (BeansException ex) {
    				if (logger.isWarnEnabled()) {
    					logger.warn("Exception encountered during context initialization - " +
    							"cancelling refresh attempt: " + ex);
    				}

    				// Destroy already created singletons to avoid dangling resources.
    				/*xxx: 如果在上下文启动过程中抛错了，则销毁上下文持有的锁，以及清除缓存*/
    				destroyBeans();

    				// Reset 'active' flag.
    				/*xxx: 重置active状态标志*/
    				cancelRefresh(ex);

    				// Propagate exception to caller.
    				/*xxx: 对外层抛出异常 */
    				throw ex;
    			}

    			finally {
    				// Reset common introspection caches in Spring's core, since we
    				// might not ever need metadata for singleton beans anymore...
    				/*xxx: 重置缓存,在重置缓存的时候，原生spring环境下，会触发工厂自动装载机制，但是无法装载bean  */
    				resetCommonCaches();
    				/*xxx: 相当于释放锁的功能*/
    				contextRefresh.end();
    			}
    		}
    }

    protected void prepareRefresh() {
    		// Switch to active.
    		this.startupDate = System.currentTimeMillis();
    		this.closed.set(false);
    		this.active.set(true);

    		if (logger.isDebugEnabled()) {
    			if (logger.isTraceEnabled()) {
    				logger.trace("Refreshing " + this);
    			}
    			else {
    				logger.debug("Refreshing " + getDisplayName());
    			}
    		}

    		// Initialize any placeholder property sources in the context environment.
    		/*xxx: 初始化当前环境下的所有属性源*/
    		initPropertySources();

    		// Validate that all properties marked as required are resolvable:
    		// see ConfigurablePropertyResolver#setRequiredProperties
    		/*xxx: 验证所有被标注为必需的属性 是可被正确解析的*/
    		getEnvironment().validateRequiredProperties();

    		// Store pre-refresh ApplicationListeners...
    		/*xxx: 存储所有预刷新的 应用监听器 */
    		if (this.earlyApplicationListeners == null) {
    			this.earlyApplicationListeners = new LinkedHashSet<>(this.applicationListeners);
    		}
    		else {
    			// Reset local application listeners to pre-refresh state.
    			this.applicationListeners.clear();
    			this.applicationListeners.addAll(this.earlyApplicationListeners);
    		}

    		// Allow for the collection of early ApplicationEvents,
    		// to be published once the multicaster is available...
    		this.earlyApplicationEvents = new LinkedHashSet<>();
    }

    /*xxx: 获取装载后的上下文工厂*/
    protected ConfigurableListableBeanFactory obtainFreshBeanFactory() {
    		/*xxx: 抽象方法，交给子类实现*/
    		refreshBeanFactory();
    		/*xxx: 抽象方法，获得实际的 bean工厂，由子类实现*/
    		return getBeanFactory();
    	}

    protected void prepareBeanFactory(ConfigurableListableBeanFactory beanFactory) {
    		// Tell the internal bean factory to use the context's class loader etc.
    		/*xxx:设置bean工厂的类加载器*/
    		beanFactory.setBeanClassLoader(getClassLoader());
    		if (!shouldIgnoreSpel) {
    			beanFactory.setBeanExpressionResolver(new StandardBeanExpressionResolver(beanFactory.getBeanClassLoader()));
    		}
    		beanFactory.addPropertyEditorRegistrar(new ResourceEditorRegistrar(this, getEnvironment()));

    		// Configure the bean factory with context callbacks.
    		/*xxx:添加上下文感知的 bean后置处理器*/
    		beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this));
    		beanFactory.ignoreDependencyInterface(EnvironmentAware.class);
    		beanFactory.ignoreDependencyInterface(EmbeddedValueResolverAware.class);
    		beanFactory.ignoreDependencyInterface(ResourceLoaderAware.class);
    		beanFactory.ignoreDependencyInterface(ApplicationEventPublisherAware.class);
    		beanFactory.ignoreDependencyInterface(MessageSourceAware.class);
    		beanFactory.ignoreDependencyInterface(ApplicationContextAware.class);
    		beanFactory.ignoreDependencyInterface(ApplicationStartup.class);

    		// BeanFactory interface not registered as resolvable type in a plain factory.
    		// MessageSource registered (and found for autowiring) as a bean.
    		beanFactory.registerResolvableDependency(BeanFactory.class, beanFactory);
    		beanFactory.registerResolvableDependency(ResourceLoader.class, this);
    		beanFactory.registerResolvableDependency(ApplicationEventPublisher.class, this);
    		beanFactory.registerResolvableDependency(ApplicationContext.class, this);

    		// Register early post-processor for detecting inner beans as ApplicationListeners.
    		/*xxx:添加监听器感知的bean后置处理器*/
    		beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(this));

    		// Detect a LoadTimeWeaver and prepare for weaving, if found.
    		if (!IN_NATIVE_IMAGE && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
    			beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
    			// Set a temporary ClassLoader for type matching.
    			beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
    		}

    		// Register default environment beans.
    		/*xxx: 注册一些 应用级别的bean*/
    		if (!beanFactory.containsLocalBean(ENVIRONMENT_BEAN_NAME)) {
    			beanFactory.registerSingleton(ENVIRONMENT_BEAN_NAME, getEnvironment());
    		}
    		if (!beanFactory.containsLocalBean(SYSTEM_PROPERTIES_BEAN_NAME)) {
    			beanFactory.registerSingleton(SYSTEM_PROPERTIES_BEAN_NAME, getEnvironment().getSystemProperties());
    		}
    		if (!beanFactory.containsLocalBean(SYSTEM_ENVIRONMENT_BEAN_NAME)) {
    			beanFactory.registerSingleton(SYSTEM_ENVIRONMENT_BEAN_NAME, getEnvironment().getSystemEnvironment());
    		}
    		if (!beanFactory.containsLocalBean(APPLICATION_STARTUP_BEAN_NAME)) {
    			beanFactory.registerSingleton(APPLICATION_STARTUP_BEAN_NAME, getApplicationStartup());
    		}
    }

    protected void finishRefresh() {
    		// Clear context-level resource caches (such as ASM metadata from scanning).
    		clearResourceCaches();

    		// Initialize lifecycle processor for this context.
    		/*xxx: 初始化生命周期处理器*/
    		initLifecycleProcessor();

    		// Propagate refresh to lifecycle processor first.
    		/*xxx: 触发生命周期处理器进行刷新*/
    		getLifecycleProcessor().onRefresh();

    		// Publish the final event.
    		publishEvent(new ContextRefreshedEvent(this));

    		// Participate in LiveBeansView MBean, if active.
    		if (!IN_NATIVE_IMAGE) {
    			LiveBeansView.registerApplicationContext(this);
    		}
    }

    protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {
    		// Initialize conversion service for this context.
    		if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&
    				beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {
    			beanFactory.setConversionService(
    					beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));
    		}

    		// Register a default embedded value resolver if no bean post-processor
    		// (such as a PropertyPlaceholderConfigurer bean) registered any before:
    		// at this point, primarily for resolution in annotation attribute values.
    		if (!beanFactory.hasEmbeddedValueResolver()) {
    			beanFactory.addEmbeddedValueResolver(strVal -> getEnvironment().resolvePlaceholders(strVal));
    		}

    		// Initialize LoadTimeWeaverAware beans early to allow for registering their transformers early.
    		String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);
    		for (String weaverAwareName : weaverAwareNames) {
    			getBean(weaverAwareName);
    		}

    		// Stop using the temporary ClassLoader for type matching.
    		beanFactory.setTempClassLoader(null);

    		// Allow for caching all bean definition metadata, not expecting further changes.
    		/*xxx: 不再修改bean工厂中的bean定义信息*/
    		beanFactory.freezeConfiguration();

    		// Instantiate all remaining (non-lazy-init) singletons.
    		/*xxx: 实例化所有 没有 懒实例化的单例*/
    		beanFactory.preInstantiateSingletons();
    }

    @Override
    /*xxx: 上下文启动方法*/
    public void start() {
    		/*xxx: 生命周期处理器，会调用所有的生命周期的bean，执行启动方法*/
    		getLifecycleProcessor().start();
    		/*xxx: 将容器上下文的启动事件发布出去*/
    		publishEvent(new ContextStartedEvent(this));
    }

    @Override
    /*xxx: 上下文停止方法*/
    public void stop() {
    		/*xxx: 生命周期处理器，并遍历调用生命周期的bean,执行停止方法 */
    		getLifecycleProcessor().stop();
    		/*xxx: 发布上下文停止事件*/
    		publishEvent(new ContextStoppedEvent(this));
    }

    /*xxx: 刷新bean容器，通常在这个过程装载 beanDefinition，通过xml,或者注解*/
    protected abstract void refreshBeanFactory() throws BeansException, IllegalStateException;

    @Override
    /*xxx: 获取bean容器 */
    public abstract ConfigurableListableBeanFactory getBeanFactory() throws IllegalStateException;

    //省略其它抽象...
}

public interface ConfigurableWebApplicationContext extends WebApplicationContext, ConfigurableApplicationContext {

    @Nullable
    /*xxx: 获取web应用上下文的命名空间，如果有的话*/
    String getNamespace();

    @Nullable
    /*xxx: 获取配置位置的数组*/
    String[] getConfigLocations();

    //省略其它抽象...
}


public class GenericApplicationContext extends AbstractApplicationContext implements BeanDefinitionRegistry {

    /*xxx: bean容器 */
    private final DefaultListableBeanFactory beanFactory;

    /*xxx: 上下文是否已执行refresh方法 */
    private final AtomicBoolean refreshed = new AtomicBoolean();

    //省略其它抽象...
}

public abstract class AbstractRefreshableApplicationContext extends AbstractApplicationContext {

    @Override
    protected final void refreshBeanFactory() throws BeansException {
    		/*xxx: 如果之前有bean工厂，就销毁bean工厂的所有bean，并且关闭bean工厂*/
    		if (hasBeanFactory()) {
    			/*xxx: 父类实现*/
    			destroyBeans();
    			/*xxx: 本类实现*/
    			closeBeanFactory();
    		}
    		try {
    			/*xxx:创建bean工厂，本类实现*/
    			DefaultListableBeanFactory beanFactory = createBeanFactory();
    			beanFactory.setSerializationId(getId());
    			/*xxx: 本地化bean工厂，主要设置 是否允许 bean覆盖  以及 bean的循环引用*/
    			customizeBeanFactory(beanFactory);
    			/*xxx: 加载bean，抽象方法，交给子类实现*/
    			loadBeanDefinitions(beanFactory);
    			this.beanFactory = beanFactory;
    		}
    		catch (IOException ex) {
    			throw new ApplicationContextException("I/O error parsing bean definition source for " + getDisplayName(), ex);
    		}
    	}

    //省略其它抽象...
}

public abstract class AbstractRefreshableConfigApplicationContext extends AbstractRefreshableApplicationContext
		implements BeanNameAware, InitializingBean {

    @Nullable
    protected String[] getConfigLocations() {
    		return (this.configLocations != null ? this.configLocations : getDefaultConfigLocations());
    }

    //省略其它抽象
}

public abstract class AbstractXmlApplicationContext extends AbstractRefreshableConfigApplicationContext {

    @Override
    protected void loadBeanDefinitions(DefaultListableBeanFactory beanFactory) throws BeansException, IOException {
    		// Create a new XmlBeanDefinitionReader for the given BeanFactory.
    		XmlBeanDefinitionReader beanDefinitionReader = new XmlBeanDefinitionReader(beanFactory);

    		// Configure the bean definition reader with this context's
    		// resource loading environment.
    		beanDefinitionReader.setEnvironment(this.getEnvironment());
    		beanDefinitionReader.setResourceLoader(this);
    		beanDefinitionReader.setEntityResolver(new ResourceEntityResolver(this));

    		// Allow a subclass to provide custom initialization of the reader,
    		// then proceed with actually loading the bean definitions.
    		initBeanDefinitionReader(beanDefinitionReader);
    		loadBeanDefinitions(beanDefinitionReader);
    }

    protected void loadBeanDefinitions(XmlBeanDefinitionReader reader) throws BeansException, IOException {
    		Resource[] configResources = getConfigResources();
    		if (configResources != null) {
    			reader.loadBeanDefinitions(configResources);
    		}
    		String[] configLocations = getConfigLocations();
    		if (configLocations != null) {
    			reader.loadBeanDefinitions(configLocations);
    		}
    }

    //省略其它抽象...
}

public class AnnotationConfigApplicationContext extends GenericApplicationContext implements AnnotationConfigRegistry {

    public AnnotationConfigApplicationContext(Class<?>... componentClasses) {
    		this();
    		register(componentClasses);
    		refresh();
    }

    public AnnotationConfigApplicationContext() {
    		StartupStep createAnnotatedBeanDefReader = this.getApplicationStartup().start("spring.context.annotated-bean-reader.create");
    		/*xxx: 在初始化该类时，会在工厂中注册一个 名称为 internalConfigurationAnnotationProcessor的 配置类工厂后置处理器*/
    		this.reader = new AnnotatedBeanDefinitionReader(this);
    		createAnnotatedBeanDefReader.end();
    		this.scanner = new ClassPathBeanDefinitionScanner(this);
    }

    //省略其它抽象...
}

public class ClassPathXmlApplicationContext extends AbstractXmlApplicationContext {

    public ClassPathXmlApplicationContext(String configLocation) throws BeansException {
    		this(new String[] {configLocation}, true, null);
    	}

    public ClassPathXmlApplicationContext(
    			String[] configLocations, boolean refresh, @Nullable ApplicationContext parent)
    			throws BeansException {

    		super(parent);
    		setConfigLocations(configLocations);
    		if (refresh) {
    			refresh();
    		}
    }
    //省略其它抽象
}

应用上下文核心功能说明

1. 规定了容器使用的流程规范

   • 在refresh方法之前，可以对容器环境进行配置，对容器中的 bean或者 beanDefinition进行装载
   • 在refresh方法之后，不能再变动容器中的内容
   • refresh方法中，本身定义了一套模板，该模板构成了应用上下文的核心，遵循特定的流程

2. 在核心容器的基础上，增加了应用上下文容器后置处理器特性，它可以在refresh过程中，动态的装载BeanDefinition;

3. 在核心容器的基础上，引入了 广播机制，自动启动生命周期的bean特性；

4. 就加载BeanDefinition的方式而言，应用上下文提供了两种健全的方式，包括 xml配置方式 以及 Annotation注解方式

5. 就核心功能而言，依然是由 核心容器完成的，但是应用上下文对其进行了优雅的封装，使得功能更易使用，更加强大。

bean的生成及缓存

bean的生成方式

todo:后续补充

bean的缓存方式

todo: 后续补充

后置处理器

容器后置处理器

todo:后续补充

bean后置处理器

todo:后续补充

生命周期处理器

生命周期体系结构

todo: 后续补充

生命周期bean执行逻辑

todo: 后续补充

事件发布机制

事件发布机制设计体系

todo: 后续补充

事件发布机制的执行逻辑

todo: 后续补充

BeanDefinition体系

什么是BeanDefinition

来自于博客: Bean与BeanDefinition的理解——理解spring的基础和关键 (opens new window)

• BeanDefinition是bean在spring中的描述，有了BeanDefinition我们就可以创建Bean,BeanDefinition是Bean在spring中的定义形态。
• 通过这个 BeanDefinition 定义的数据结构，容器能够方便地对 Bean 进行管理。

抽象结构

public interface BeanDefinition extends AttributeAccessor, BeanMetadataElement {

    /*xxx: 设置beanDefinition指代的类的名称*/
    void setBeanClassName(@Nullable String beanClassName);

    /*xxx: 获取beanDefinition指代的作用域 */
    String getScope();

    /*xxx: 获取当前的beanDefinition是否懒加载 */
    boolean isLazyInit();

    /*xxx: 判断当前的bean是否为主要的自动装配候选。*/
    boolean isPrimary();

    //省略其它抽象...
}

public interface AttributeAccessor {

    /*xxx: 设置属性*/
    void setAttribute(String name, @Nullable Object value);

    /*xxx: 获取属性*/
    Object getAttribute(String name);
    //省略其它抽象...
}

public interface BeanMetadataElement {

    /*xxx: 返回这个元素据对象 */
    default Object getSource() {
    		return null;
    	}
}

BeanDefinition的结构

• 核心抽象实现: AbstractBeanDefinition
• 常用实现类: RootBeanDefinition,GenericBeanDefinition(推荐)

xml方式加载bean

XmlBeanDefinitionReader 的抽象结构

/*xxx: 顶级接口： beanDefinition读取器*/
public interface BeanDefinitionReader {

    /*xxx: 获取beanDefinition注册表*/
    BeanDefinitionRegistry getRegistry();

    /*xxx: 从资源句柄中，加载beanDefinition */
    int loadBeanDefinitions(Resource resource) throws BeanDefinitionStoreException;

    @Nullable
    /*xxx: 获取资源句柄加载器*/
    ResourceLoader getResourceLoader();

    //省略其它抽象...
}

/*xxx: 抽象beanDefinition 读取解析器 */
public abstract class AbstractBeanDefinitionReader implements BeanDefinitionReader, EnvironmentCapable {

    public int loadBeanDefinitions(String location, @Nullable Set<Resource> actualResources) throws BeanDefinitionStoreException {
    		ResourceLoader resourceLoader = getResourceLoader();
    		if (resourceLoader == null) {
    			throw new BeanDefinitionStoreException(
    					"Cannot load bean definitions from location [" + location + "]: no ResourceLoader available");
    		}

    		if (resourceLoader instanceof ResourcePatternResolver) {
    			// Resource pattern matching available.
    			try {
                    //xxx： 根据资源加载器，加载到资源句柄
    				Resource[] resources = ((ResourcePatternResolver) resourceLoader).getResources(location);
                    //xxx: 实际加载资源的动作，由子类完成
    				int count = loadBeanDefinitions(resources);
    				if (actualResources != null) {
    					Collections.addAll(actualResources, resources);
    				}
    				if (logger.isTraceEnabled()) {
    					logger.trace("Loaded " + count + " bean definitions from location pattern [" + location + "]");
    				}
    				return count;
    			}
    			catch (IOException ex) {
    				throw new BeanDefinitionStoreException(
    						"Could not resolve bean definition resource pattern [" + location + "]", ex);
    			}
    		}
    		else {
    			// Can only load single resources by absolute URL.
    			Resource resource = resourceLoader.getResource(location);
    			int count = loadBeanDefinitions(resource);
    			if (actualResources != null) {
    				actualResources.add(resource);
    			}
    			if (logger.isTraceEnabled()) {
    				logger.trace("Loaded " + count + " bean definitions from location [" + location + "]");
    			}
    			return count;
    		}
    }
}

public class XmlBeanDefinitionReader extends AbstractBeanDefinitionReader {

    @Override
    public int loadBeanDefinitions(Resource resource) throws BeanDefinitionStoreException {
    	return loadBeanDefinitions(new EncodedResource(resource));
    }

    public int loadBeanDefinitions(EncodedResource encodedResource) throws BeanDefinitionStoreException {
    		Assert.notNull(encodedResource, "EncodedResource must not be null");
    		if (logger.isTraceEnabled()) {
    			logger.trace("Loading XML bean definitions from " + encodedResource);
    		}

    		Set<EncodedResource> currentResources = this.resourcesCurrentlyBeingLoaded.get();
    		/*xxx: 如果之前已经加载过，则抛错 */
    		if (!currentResources.add(encodedResource)) {
    			throw new BeanDefinitionStoreException(
    					"Detected cyclic loading of " + encodedResource + " - check your import definitions!");
    		}

    		try (InputStream inputStream = encodedResource.getResource().getInputStream()) {
    			InputSource inputSource = new InputSource(inputStream);
    			if (encodedResource.getEncoding() != null) {
    				inputSource.setEncoding(encodedResource.getEncoding());
    			}
    			return doLoadBeanDefinitions(inputSource, encodedResource.getResource());
    		}
    		catch (IOException ex) {
    			throw new BeanDefinitionStoreException(
    					"IOException parsing XML document from " + encodedResource.getResource(), ex);
    		}
    		finally {
    			currentResources.remove(encodedResource);
    			if (currentResources.isEmpty()) {
    				this.resourcesCurrentlyBeingLoaded.remove();
    			}
    		}
    }

    /*xxx: 从指定的 xml文件中，加载beanDefinition的配置 */
    protected int doLoadBeanDefinitions(InputSource inputSource, Resource resource)
    			throws BeanDefinitionStoreException {

    		try {
    			/*xxx: 将xml文件中的内容，通过 xml领域相关类，创建Document文档 */
    			Document doc = doLoadDocument(inputSource, resource);
    			int count = registerBeanDefinitions(doc, resource);
    			if (logger.isDebugEnabled()) {
    				logger.debug("Loaded " + count + " bean definitions from " + resource);
    			}
    			return count;
    		}
    		catch (BeanDefinitionStoreException ex) {
    			throw ex;
    		}
    		catch (SAXParseException ex) {
    			throw new XmlBeanDefinitionStoreException(resource.getDescription(),
    					"Line " + ex.getLineNumber() + " in XML document from " + resource + " is invalid", ex);
    		}
    		catch (SAXException ex) {
    			throw new XmlBeanDefinitionStoreException(resource.getDescription(),
    					"XML document from " + resource + " is invalid", ex);
    		}
    		catch (ParserConfigurationException ex) {
    			throw new BeanDefinitionStoreException(resource.getDescription(),
    					"Parser configuration exception parsing XML from " + resource, ex);
    		}
    		catch (IOException ex) {
    			throw new BeanDefinitionStoreException(resource.getDescription(),
    					"IOException parsing XML document from " + resource, ex);
    		}
    		catch (Throwable ex) {
    			throw new BeanDefinitionStoreException(resource.getDescription(),
    					"Unexpected exception parsing XML document from " + resource, ex);
    		}
    }

    protected Document doLoadDocument(InputSource inputSource, Resource resource) throws Exception {
    		return this.documentLoader.loadDocument(inputSource, getEntityResolver(), this.errorHandler,
    				getValidationModeForResource(resource), isNamespaceAware());
    }

    public int registerBeanDefinitions(Document doc, Resource resource) throws BeanDefinitionStoreException {
    		BeanDefinitionDocumentReader documentReader = createBeanDefinitionDocumentReader();
    		int countBefore = getRegistry().getBeanDefinitionCount();
    		documentReader.registerBeanDefinitions(doc, createReaderContext(resource));
    		return getRegistry().getBeanDefinitionCount() - countBefore;
    }
}

xml加载Bean的说明

1. 根据路径，封装为资源句柄
2. 根据 资源句柄，读取为 Document对象。
3. 通过 BeanDefinitionDocumentReader从 Document读取出 BeanDefinition,并进行注册。 读取过程，依赖于 EntityResolver.

/*xxx: 顶级接口: document领域文档读取 beanDefinition*/
public interface BeanDefinitionDocumentReader {
    /*xxx: 从文档中读取beanDefinition，并进行缓存 */
    void registerBeanDefinitions(Document doc, XmlReaderContext readerContext)
    			throws BeanDefinitionStoreException;

}

public class DefaultBeanDefinitionDocumentReader implements BeanDefinitionDocumentReader {

    protected void doRegisterBeanDefinitions(Element root) {
    		BeanDefinitionParserDelegate parent = this.delegate;
    		this.delegate = createDelegate(getReaderContext(), root, parent);

    		if (this.delegate.isDefaultNamespace(root)) {
    			String profileSpec = root.getAttribute(PROFILE_ATTRIBUTE);
    			if (StringUtils.hasText(profileSpec)) {
    				String[] specifiedProfiles = StringUtils.tokenizeToStringArray(
    						profileSpec, BeanDefinitionParserDelegate.MULTI_VALUE_ATTRIBUTE_DELIMITERS);
    				// We cannot use Profiles.of(...) since profile expressions are not supported
    				// in XML config. See SPR-12458 for details.
    				if (!getReaderContext().getEnvironment().acceptsProfiles(specifiedProfiles)) {
    					if (logger.isDebugEnabled()) {
    						logger.debug("Skipped XML bean definition file due to specified profiles [" + profileSpec +
    								"] not matching: " + getReaderContext().getResource());
    					}
    					return;
    				}
    			}
    		}

    		preProcessXml(root);
    		parseBeanDefinitions(root, this.delegate);
    		postProcessXml(root);

    		this.delegate = parent;
    }

    protected void parseBeanDefinitions(Element root, BeanDefinitionParserDelegate delegate) {
    		if (delegate.isDefaultNamespace(root)) {
    			NodeList nl = root.getChildNodes();
    			for (int i = 0; i < nl.getLength(); i++) {
    				Node node = nl.item(i);
    				if (node instanceof Element) {
    					Element ele = (Element) node;
    					/*xxx: 默认命名空间的节点，<beans>*/
    					if (delegate.isDefaultNamespace(ele)) {
    						parseDefaultElement(ele, delegate);
    					}
    					else {
    						/*xxx: 除了beans命名空间下的节点，其它都是客户端节点 */
    						delegate.parseCustomElement(ele);
    					}
    				}
    			}
    		}
    		else {
    			delegate.parseCustomElement(root);
    		}
    }

    private void parseDefaultElement(Element ele, BeanDefinitionParserDelegate delegate) {
    		if (delegate.nodeNameEquals(ele, "import")) {
    			importBeanDefinitionResource(ele);
    		}
    		else if (delegate.nodeNameEquals(ele, "alias")) {
    			processAliasRegistration(ele);
    		}
    		else if (delegate.nodeNameEquals(ele, "bean")) {
    			processBeanDefinition(ele, delegate);
    		}
    		else if (delegate.nodeNameEquals(ele, "beans")) {
    			// recurse
    			doRegisterBeanDefinitions(ele);
    		}
    }

}

NamespaceHandler 的作用

• 处理 自定义命名空间元素节点

/*xxx: beanDefinition的解析代理 */
public class BeanDefinitionParserDelegate {

    @Nullable
    	/*xxx: 解析客户端节点  */
    public BeanDefinition parseCustomElement(Element ele) {
    		return parseCustomElement(ele, null);
    }

    @Nullable
    /*xxx: 解析客户端节点  */
    public BeanDefinition parseCustomElement(Element ele, @Nullable BeanDefinition containingBd) {
    		/*xxx: 获取当前元素的命名空间*/
    		String namespaceUri = getNamespaceURI(ele);
    		if (namespaceUri == null) {
    			return null;
    		}
    		/*xxx: 在资源句柄，读取为Document的过程中， 依赖 spring.schemas 以及  spring-xxx.xsd文件*/
    		/*xxx: 进行namespace映射时，需要依赖映射文件: spring.handlers */
    		NamespaceHandler handler = this.readerContext.getNamespaceHandlerResolver().resolve(namespaceUri);
    		if (handler == null) {
    			error("Unable to locate Spring NamespaceHandler for XML schema namespace [" + namespaceUri + "]", ele);
    			return null;
    		}
    		return handler.parse(ele, new ParserContext(this.readerContext, this, containingBd));
    }
}

NamespaceHandler 的抽象结构及运行逻辑

public interface NamespaceHandler {

    void init();

    @Nullable
    BeanDefinition parse(Element element, ParserContext parserContext);
    //省略其它抽象...
}

public abstract class NamespaceHandlerSupport implements NamespaceHandler {
    @Override
    @Nullable
    /*xxx: 用于将 配置的标签 转换成  spring 需要的 BeanDefinition*/
    public BeanDefinition parse(Element element, ParserContext parserContext) {
    		BeanDefinitionParser parser = findParserForElement(element, parserContext);
    		return (parser != null ? parser.parse(element, parserContext) : null);
    }

}
/*xxx: 自定义实现的命名解析器*/
public static class AtmNameSpaceHandler extends NamespaceHandlerSupport {

        public void init() {
            /*xxx: 这里只需要处理，最顶级的节点即可，嵌套的元素节点，需要再内层处理*/
            registerBeanDefinitionParser("atmBean",new AtmBeanHandler());
            registerBeanDefinitionParser("refer",new ReferBeanHandler());
        }
}
/*xxx: 自定义实现的一个解析器*/
public static class AtmBeanHandler implements BeanDefinitionParser {

        public BeanDefinition parse(Element element, ParserContext parserContext) {
            System.out.println("处理atmBean节点，可以获取到相应的属性，进行处理，主要是转化为 beanDefinition");
            System.out.println(element.getAttributes());
            System.out.println("转换后的 beanDefinition,自然会放到容器中. 完成无缝对接");
            System.out.println("内层元素需要继续进行解析");
            GenericBeanDefinition genericBeanDefinition = new GenericBeanDefinition();
            genericBeanDefinition.setBeanClass(BusinessBean.class);
            return genericBeanDefinition;
        }
}

特殊的命名空间处理器: spring-context

<context:component-scan base-packet="xxx.xxx.xxx">

public class ContextNamespaceHandler extends NamespaceHandlerSupport {

	@Override
	public void init() {
		registerBeanDefinitionParser("property-placeholder", new PropertyPlaceholderBeanDefinitionParser());
		registerBeanDefinitionParser("property-override", new PropertyOverrideBeanDefinitionParser());
		registerBeanDefinitionParser("annotation-config", new AnnotationConfigBeanDefinitionParser());
		registerBeanDefinitionParser("component-scan", new ComponentScanBeanDefinitionParser());
		registerBeanDefinitionParser("load-time-weaver", new LoadTimeWeaverBeanDefinitionParser());
		registerBeanDefinitionParser("spring-configured", new SpringConfiguredBeanDefinitionParser());
		registerBeanDefinitionParser("mbean-export", new MBeanExportBeanDefinitionParser());
		registerBeanDefinitionParser("mbean-server", new MBeanServerBeanDefinitionParser());
	}
}

public class ComponentScanBeanDefinitionParser implements BeanDefinitionParser {

    @Override
    @Nullable
    public BeanDefinition parse(Element element, ParserContext parserContext) {
    		String basePackage = element.getAttribute(BASE_PACKAGE_ATTRIBUTE);
    		basePackage = parserContext.getReaderContext().getEnvironment().resolvePlaceholders(basePackage);
    		/*xxx: 可以指定多个路径 */
    		String[] basePackages = StringUtils.tokenizeToStringArray(basePackage,
    				ConfigurableApplicationContext.CONFIG_LOCATION_DELIMITERS);

    		// Actually scan for bean definitions and register them.
    		/*xxx: 创建一个扫描器，用于扫描指定路径的beanDefinition */
    		ClassPathBeanDefinitionScanner scanner = configureScanner(parserContext, element);
    		Set<BeanDefinitionHolder> beanDefinitions = scanner.doScan(basePackages);
    		registerComponents(parserContext.getReaderContext(), beanDefinitions, element);

    		return null;
    }

    protected ClassPathBeanDefinitionScanner configureScanner(ParserContext parserContext, Element element) {
    		boolean useDefaultFilters = true;
    		if (element.hasAttribute(USE_DEFAULT_FILTERS_ATTRIBUTE)) {
    			useDefaultFilters = Boolean.parseBoolean(element.getAttribute(USE_DEFAULT_FILTERS_ATTRIBUTE));
    		}

    		// Delegate bean definition registration to scanner class.
    		ClassPathBeanDefinitionScanner scanner = createScanner(parserContext.getReaderContext(), useDefaultFilters);
    		scanner.setBeanDefinitionDefaults(parserContext.getDelegate().getBeanDefinitionDefaults());
    		scanner.setAutowireCandidatePatterns(parserContext.getDelegate().getAutowireCandidatePatterns());

    		if (element.hasAttribute(RESOURCE_PATTERN_ATTRIBUTE)) {
    			scanner.setResourcePattern(element.getAttribute(RESOURCE_PATTERN_ATTRIBUTE));
    		}

    		try {
    			parseBeanNameGenerator(element, scanner);
    		}
    		catch (Exception ex) {
    			parserContext.getReaderContext().error(ex.getMessage(), parserContext.extractSource(element), ex.getCause());
    		}

    		try {
    			parseScope(element, scanner);
    		}
    		catch (Exception ex) {
    			parserContext.getReaderContext().error(ex.getMessage(), parserContext.extractSource(element), ex.getCause());
    		}

    		parseTypeFilters(element, scanner, parserContext);

    		return scanner;
    }

    /*xxx: 根据扫描到的内容，注册组件 */
    protected void registerComponents(
    			XmlReaderContext readerContext, Set<BeanDefinitionHolder> beanDefinitions, Element element) {

    		Object source = readerContext.extractSource(element);
    		CompositeComponentDefinition compositeDef = new CompositeComponentDefinition(element.getTagName(), source);

    		for (BeanDefinitionHolder beanDefHolder : beanDefinitions) {
    			compositeDef.addNestedComponent(new BeanComponentDefinition(beanDefHolder));
    		}

    		// Register annotation config processors, if necessary.
    		boolean annotationConfig = true;
    		if (element.hasAttribute(ANNOTATION_CONFIG_ATTRIBUTE)) {
    			annotationConfig = Boolean.parseBoolean(element.getAttribute(ANNOTATION_CONFIG_ATTRIBUTE));
    		}
    		if (annotationConfig) {
    			Set<BeanDefinitionHolder> processorDefinitions =
                        /*xxx: 注意，此处会主次容器后置处理器 */
    					AnnotationConfigUtils.registerAnnotationConfigProcessors(readerContext.getRegistry(), source);
    			for (BeanDefinitionHolder processorDefinition : processorDefinitions) {
    				compositeDef.addNestedComponent(new BeanComponentDefinition(processorDefinition));
    			}
    		}

    		readerContext.fireComponentRegistered(compositeDef);
    }

    //省略其它抽象...

}

/*xxx: 注解配置工具类*/
public abstract class AnnotationConfigUtils {

    /*xxx: 注册注解配置处理器*/
    public static Set<BeanDefinitionHolder> registerAnnotationConfigProcessors(
    			BeanDefinitionRegistry registry, @Nullable Object source) {

    		DefaultListableBeanFactory beanFactory = unwrapDefaultListableBeanFactory(registry);
    		if (beanFactory != null) {
    			if (!(beanFactory.getDependencyComparator() instanceof AnnotationAwareOrderComparator)) {
    				beanFactory.setDependencyComparator(AnnotationAwareOrderComparator.INSTANCE);
    			}
    			if (!(beanFactory.getAutowireCandidateResolver() instanceof ContextAnnotationAutowireCandidateResolver)) {
    				beanFactory.setAutowireCandidateResolver(new ContextAnnotationAutowireCandidateResolver());
    			}
    		}

    		Set<BeanDefinitionHolder> beanDefs = new LinkedHashSet<>(8);
            /*xxx: 注册 internalConfigurationAnnotationProcessor*/
    		if (!registry.containsBeanDefinition(CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME)) {
    			RootBeanDefinition def = new RootBeanDefinition(ConfigurationClassPostProcessor.class);
    			def.setSource(source);
    			/*xxx: 将internalConfigurationAnnotationProcessor注册进容器*/
    			beanDefs.add(registerPostProcessor(registry, def, CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME));
    		}
    		/*xxx: 注册 internalAutowaredAnnotationProcessor*/
    		if (!registry.containsBeanDefinition(AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME)) {
    			RootBeanDefinition def = new RootBeanDefinition(AutowiredAnnotationBeanPostProcessor.class);
    			def.setSource(source);
    			beanDefs.add(registerPostProcessor(registry, def, AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME));
    		}
    		// Check for JSR-250 support, and if present add the CommonAnnotationBeanPostProcessor.
    		/*xxx: 注册 internalCommonAnnotationProcessor*/
    		if (jsr250Present && !registry.containsBeanDefinition(COMMON_ANNOTATION_PROCESSOR_BEAN_NAME)) {
    			RootBeanDefinition def = new RootBeanDefinition(CommonAnnotationBeanPostProcessor.class);
    			def.setSource(source);
    			beanDefs.add(registerPostProcessor(registry, def, COMMON_ANNOTATION_PROCESSOR_BEAN_NAME));
    		}
    		// Check for JPA support, and if present add the PersistenceAnnotationBeanPostProcessor.
    		/*xxx: 注册 internalPersistenceAnnotationProcessor*/
    		if (jpaPresent && !registry.containsBeanDefinition(PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME)) {
    			RootBeanDefinition def = new RootBeanDefinition();
    			try {
    				def.setBeanClass(ClassUtils.forName(PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME,
    						AnnotationConfigUtils.class.getClassLoader()));
    			}
    			catch (ClassNotFoundException ex) {
    				throw new IllegalStateException(
    						"Cannot load optional framework class: " + PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME, ex);
    			}
    			def.setSource(source);
    			beanDefs.add(registerPostProcessor(registry, def, PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME));
    		}
    		/*xxx: 注册 internalEventListenerProcessor*/
    		if (!registry.containsBeanDefinition(EVENT_LISTENER_PROCESSOR_BEAN_NAME)) {
    			RootBeanDefinition def = new RootBeanDefinition(EventListenerMethodProcessor.class);
    			def.setSource(source);
    			beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_PROCESSOR_BEAN_NAME));
    		}
    		/*xxx: 注册 internalEventListenerFactory，只是单纯的注册一个工厂*/
    		if (!registry.containsBeanDefinition(EVENT_LISTENER_FACTORY_BEAN_NAME)) {
    			RootBeanDefinition def = new RootBeanDefinition(DefaultEventListenerFactory.class);
    			def.setSource(source);
    			beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_FACTORY_BEAN_NAME));
    		}

    		return beanDefs;
    	}
}

annotation方式加载bean

scanner的抽象结构

/*xxx: 类路径扫描候选容器提供者*/
public class ClassPathScanningCandidateComponentProvider implements EnvironmentCapable, ResourceLoaderAware {

    /*xxx: 默认的资源模式*/
    static final String DEFAULT_RESOURCE_PATTERN = "**/*.class";

    /*xxx: 查找候选组件，扫描的核心方法*/
    public Set<BeanDefinition> findCandidateComponents(String basePackage) {
    		if (this.componentsIndex != null && indexSupportsIncludeFilters()) {
    			return addCandidateComponentsFromIndex(this.componentsIndex, basePackage);
    		}
    		else {
    			/*xxx: 从包路径中，扫描候选组件 */
    			return scanCandidateComponents(basePackage);
    		}
    }

    /*xxx: 从包路径中，扫描候选组件*/
    private Set<BeanDefinition> scanCandidateComponents(String basePackage) {
    		Set<BeanDefinition> candidates = new LinkedHashSet<>();
    		try {
    			/*xxx: classpath*下，所有的资源， 如: classpath*:com/automannn/practice/**\/*.class*/
    			String packageSearchPath = ResourcePatternResolver.CLASSPATH_ALL_URL_PREFIX +
    					resolveBasePackage(basePackage) + '/' + this.resourcePattern;
    			/*xxx: 获取到所有的文件系统资源句柄*/
    			Resource[] resources = getResourcePatternResolver().getResources(packageSearchPath);
    			boolean traceEnabled = logger.isTraceEnabled();
    			boolean debugEnabled = logger.isDebugEnabled();
    			/*xxx: 遍历加载到的文件句柄 */
    			for (Resource resource : resources) {
    				if (traceEnabled) {
    					logger.trace("Scanning " + resource);
    				}
    				if (resource.isReadable()) {
    					try {
    						/*xxx: 获取每个资源句柄的 元数据读取器 */
    						MetadataReader metadataReader = getMetadataReaderFactory().getMetadataReader(resource);
    						/*xxx: 对所有获取到的文件，进行判断，是否是组件*/
    						/*xxx: 在此处就会进行 Condition条件判定*/
    						if (isCandidateComponent(metadataReader)) {
    							/*xxx: 直接将读取到的封装为 beanDefinition*/
    							ScannedGenericBeanDefinition sbd = new ScannedGenericBeanDefinition(metadataReader);
    							sbd.setSource(resource);
    							if (isCandidateComponent(sbd)) {
    								if (debugEnabled) {
    									logger.debug("Identified candidate component class: " + resource);
    								}
    								candidates.add(sbd);
    							}
    							else {
    								if (debugEnabled) {
    									logger.debug("Ignored because not a concrete top-level class: " + resource);
    								}
    							}
    						}
    						else {
    							if (traceEnabled) {
    								logger.trace("Ignored because not matching any filter: " + resource);
    							}
    						}
    					}
    					catch (Throwable ex) {
    						throw new BeanDefinitionStoreException(
    								"Failed to read candidate component class: " + resource, ex);
    					}
    				}
    				else {
    					if (traceEnabled) {
    						logger.trace("Ignored because not readable: " + resource);
    					}
    				}
    			}
    		}
    		catch (IOException ex) {
    			throw new BeanDefinitionStoreException("I/O failure during classpath scanning", ex);
    		}
    		return candidates;
    }

    /*xxx: 判断是否是组件时，具有两个匹配条件*/
    /*xxx: 如果 需要排除的过滤器中，任意一个命中，则排除。
    	   如果在 任意一个需要包括的过滤器中，则再次判断是否满足条件，否则都为false */
    /*xxx: 默认情况下，需要处理:  @Component,@ManagedBean,@Named注解*/
    protected boolean isCandidateComponent(MetadataReader metadataReader) throws IOException {
    		for (TypeFilter tf : this.excludeFilters) {
    			if (tf.match(metadataReader, getMetadataReaderFactory())) {
    				return false;
    			}
    		}
    		for (TypeFilter tf : this.includeFilters) {
    			if (tf.match(metadataReader, getMetadataReaderFactory())) {
    				return isConditionMatch(metadataReader);
    			}
    		}
    		return false;
    }

    //省略其它抽象...
}

/*xxx: 类路径下 beanDefinition扫描器 */
public class ClassPathBeanDefinitionScanner extends ClassPathScanningCandidateComponentProvider {

    public int scan(String... basePackages) {
    		/*xxx: 记录没有扫描之前，容器中beanDefinition的个数*/
    		int beanCountAtScanStart = this.registry.getBeanDefinitionCount();

    		/*xxx:进行扫描，在这个过程中，会自动注册beanDefinition */
    		doScan(basePackages);

    		// Register annotation config processors, if necessary.
    		/*xxx: 如果开启了包含注解配置*/
    		if (this.includeAnnotationConfig) {
    			/*xxx: 则需要在当前的 beanDefinition注册表中，讲 注解配置后置处理器给注册进去*/
    			AnnotationConfigUtils.registerAnnotationConfigProcessors(this.registry);
    		}

    		/*xxx: 返回扫描注册的个数*/
    		return (this.registry.getBeanDefinitionCount() - beanCountAtScanStart);
    }

    /*xxx: 进行实际的扫描动作 */
    protected Set<BeanDefinitionHolder> doScan(String... basePackages) {
    		/*xxx: 需要扫描的包不能为空，可以有多个*/
    		Assert.notEmpty(basePackages, "At least one base package must be specified");
    		Set<BeanDefinitionHolder> beanDefinitions = new LinkedHashSet<>();
    		/*xxx: 遍历多个需要扫描的包*/
    		for (String basePackage : basePackages) {
    			/*xxx: 从扫描的包路径中，查找候选组件 */
    			Set<BeanDefinition> candidates = findCandidateComponents(basePackage);
    			/*xxx: 对每一个候选组件，进行配置 */
    			for (BeanDefinition candidate : candidates) {
    				ScopeMetadata scopeMetadata = this.scopeMetadataResolver.resolveScopeMetadata(candidate);
    				candidate.setScope(scopeMetadata.getScopeName());
    				String beanName = this.beanNameGenerator.generateBeanName(candidate, this.registry);
    				/*xxx: 使用命名生成器，生成bean的名称（如果没有指定）*/
    				if (candidate instanceof AbstractBeanDefinition) {
    					postProcessBeanDefinition((AbstractBeanDefinition) candidate, beanName);
    				}
    				if (candidate instanceof AnnotatedBeanDefinition) {
    					/*xxx: 如果扫描的到的 beanDefinition为注解类型，则需要处理通用的注解*/
    					AnnotationConfigUtils.processCommonDefinitionAnnotations((AnnotatedBeanDefinition) candidate);
    				}
    				/*xxx: 检测是否有同名的bean,没有就进行注册*/
    				if (checkCandidate(beanName, candidate)) {
    					BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(candidate, beanName);
    					definitionHolder =
    							AnnotationConfigUtils.applyScopedProxyMode(scopeMetadata, definitionHolder, this.registry);
    					beanDefinitions.add(definitionHolder);
    					/*xxx: 将扫描到的beanDefinition注册到注册表中 */
    					registerBeanDefinition(definitionHolder, this.registry);
    				}
    			}
    		}
    		return beanDefinitions;
    }

    //省略其它抽象
}

内置注解相关的容器后置处理器

• 配置类后置处理器

/*xxx: 配置类后置处理器，是一个容器后置处理器*/
public class ConfigurationClassPostProcessor implements BeanDefinitionRegistryPostProcessor,
		PriorityOrdered, ResourceLoaderAware, ApplicationStartupAware, BeanClassLoaderAware, EnvironmentAware {

    @Override
    public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) {
    		/*xxx: 后置处理beanDefinition的时候，首先对当前的注册表生成hash值*/
    		int registryId = System.identityHashCode(registry);
    		if (this.registriesPostProcessed.contains(registryId)) {
    			throw new IllegalStateException(
    					"postProcessBeanDefinitionRegistry already called on this post-processor against " + registry);
    		}
    		if (this.factoriesPostProcessed.contains(registryId)) {
    			throw new IllegalStateException(
    					"postProcessBeanFactory already called on this post-processor against " + registry);
    		}
    		/*xxx: 并将该hash值，作为已经处理的凭证 */
    		this.registriesPostProcessed.add(registryId);

    		/*xxx: 处理配置bean的流程*/
    		processConfigBeanDefinitions(registry);
    }

	@Override
	public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) {
		int factoryId = System.identityHashCode(beanFactory);
		if (this.factoriesPostProcessed.contains(factoryId)) {
			throw new IllegalStateException(
					"postProcessBeanFactory already called on this post-processor against " + beanFactory);
		}
		this.factoriesPostProcessed.add(factoryId);
		/*xxx: 如果当前的容器还没有被处理过，则进行处理*/
		if (!this.registriesPostProcessed.contains(factoryId)) {
			// BeanDefinitionRegistryPostProcessor hook apparently not supported...
			// Simply call processConfigurationClasses lazily at this point then.
			/*xxx: 处理配置bean的流程*/
			processConfigBeanDefinitions((BeanDefinitionRegistry) beanFactory);
		}

		/*xxx: 工厂后置处理方法，对配置类进行加强处理*/
		/*xxx: 作用之一，是将 beanDefinition指定的类名，同时设置好类实例*/
		enhanceConfigurationClasses(beanFactory);
		/*xxx: 添加 Import bean后置处理器*/
		beanFactory.addBeanPostProcessor(new ImportAwareBeanPostProcessor(beanFactory));
	}

    /*xxx: 处理配置bean的流程 */
	public void processConfigBeanDefinitions(BeanDefinitionRegistry registry) {
		List<BeanDefinitionHolder> configCandidates = new ArrayList<>();

		/*xxx: 从该工厂获取所有的BeanDefinition的名称*/
		String[] candidateNames = registry.getBeanDefinitionNames();

		for (String beanName : candidateNames) {
			BeanDefinition beanDef = registry.getBeanDefinition(beanName);
			/*xxx: 如果该BeanDefinition含有: org.springframework.context.annotation.ConfigurationClassPostProcessor.class.configurationClass 属性，则代表已经被解析*/
			if (beanDef.getAttribute(ConfigurationClassUtils.CONFIGURATION_CLASS_ATTRIBUTE) != null) {
				if (logger.isDebugEnabled()) {
					logger.debug("Bean definition has already been processed as a configuration class: " + beanDef);
				}
			}
			/*xxx: 如果该类具有 @Configuration注解,则根据它的 proxyBeanMethods属性，
			   决定 org.springframework.context.annotation.ConfigurationClassPostProcessor.class.configurationClass 属性  为full 还是 lite
			   猜想字面理解是 轻量级 和 重量级 的意思
			   spring5.2开始，默认都是重量级
			   */
			else if (ConfigurationClassUtils.checkConfigurationClassCandidate(beanDef, this.metadataReaderFactory)) {
				configCandidates.add(new BeanDefinitionHolder(beanDef, beanName));
			}
		}

		/*xxx:没有找到 带有 @Configuration的类，则直接出栈*/
		// Return immediately if no @Configuration classes were found
		if (configCandidates.isEmpty()) {
			return;
		}

		/*xxx: 将当前工厂中，所有带有@Configration的配置类，进行排序  自然序*/
		// Sort by previously determined @Order value, if applicable
		configCandidates.sort((bd1, bd2) -> {
			int i1 = ConfigurationClassUtils.getOrder(bd1.getBeanDefinition());
			int i2 = ConfigurationClassUtils.getOrder(bd2.getBeanDefinition());
			return Integer.compare(i1, i2);
		});

		// Detect any custom bean name generation strategy supplied through the enclosing application context
		/*xxx: 获取bean名称生成器*/
		SingletonBeanRegistry sbr = null;
		if (registry instanceof SingletonBeanRegistry) {
			sbr = (SingletonBeanRegistry) registry;
			if (!this.localBeanNameGeneratorSet) {
				BeanNameGenerator generator = (BeanNameGenerator) sbr.getSingleton(
						AnnotationConfigUtils.CONFIGURATION_BEAN_NAME_GENERATOR);
				if (generator != null) {
					this.componentScanBeanNameGenerator = generator;
					this.importBeanNameGenerator = generator;
				}
			}
		}

		if (this.environment == null) {
			this.environment = new StandardEnvironment();
		}

		// Parse each @Configuration class
		/*xxx: 将该工厂  组装成 配置类解析器
		*  这个配置类解析器，是解析 @Configuration类的核心实现*/
		ConfigurationClassParser parser = new ConfigurationClassParser(
				this.metadataReaderFactory, this.problemReporter, this.environment,
				this.resourceLoader, this.componentScanBeanNameGenerator, registry);

		/*xxx: 这里设计了两个集合，一个表示 即将进行解析的配置类，一个表示  已经解析的配置类*/
		Set<BeanDefinitionHolder> candidates = new LinkedHashSet<>(configCandidates);
		Set<ConfigurationClass> alreadyParsed = new HashSet<>(configCandidates.size());
		/*xxx: 对配置类结束解析的条件是： 只要 即将进行解析的配置类集合 为空， 那么表示整个解析过程完成*/
		do {
			StartupStep processConfig = this.applicationStartup.start("spring.context.config-classes.parse");
			/*xxx: 配置类解析器 负责单个解析类的解析，核心的核心  是解析的重中之重*/
			parser.parse(candidates);
			parser.validate();

			/*xxx:  对单个 解析类 中，新加入的配置类，需要首先进行排除已经解析过的解析类
			*  一个典型的场景有可能是  多个 ComponentSan的扫描重合区域，包含了@Configration的 情况*/
			Set<ConfigurationClass> configClasses = new LinkedHashSet<>(parser.getConfigurationClasses());
			configClasses.removeAll(alreadyParsed);

			// Read the model and create bean definitions based on its content
			/*xxx: 载入相应的配置bean*/
			if (this.reader == null) {
				this.reader = new ConfigurationClassBeanDefinitionReader(
						registry, this.sourceExtractor, this.resourceLoader, this.environment,
						this.importBeanNameGenerator, parser.getImportRegistry());
			}
			/*xxx: 同时会将前序装载的 registrar钟的内容进行注册*/
			/*xxx: 根据前期解析的结果，进行装载*/
			this.reader.loadBeanDefinitions(configClasses);
			/*xxx: 移除已经解析的配置类*/
			alreadyParsed.addAll(configClasses);
			processConfig.tag("classCount", () -> String.valueOf(configClasses.size())).end();
			/*xxx:清空即将解析的配置类*/
			candidates.clear();
			/*xxx: 如果工厂中bean定义的个数  大于 初始的 注册bean的个数，则对当前的  即将解析配置类 进行调整
			*  这个调整 的作用在于  处理单个配置类  引入的其它外部配置类，确保当前的工厂中所有的配置类，均被解析 */
			if (registry.getBeanDefinitionCount() > candidateNames.length) {
				String[] newCandidateNames = registry.getBeanDefinitionNames();
				Set<String> oldCandidateNames = new HashSet<>(Arrays.asList(candidateNames));
				Set<String> alreadyParsedClasses = new HashSet<>();
				/*xxx: 维护了一个  新的待解析的配置类，老的配置类   以及 已经解析的类*/
				for (ConfigurationClass configurationClass : alreadyParsed) {
					alreadyParsedClasses.add(configurationClass.getMetadata().getClassName());
				}
				for (String candidateName : newCandidateNames) {
					if (!oldCandidateNames.contains(candidateName)) {
						BeanDefinition bd = registry.getBeanDefinition(candidateName);
						if (ConfigurationClassUtils.checkConfigurationClassCandidate(bd, this.metadataReaderFactory) &&
								!alreadyParsedClasses.contains(bd.getBeanClassName())) {
							/*xxx: 对工厂中，新的bean，同时含有 @Configuration ,并且没有被解析的配置类，加入到  原有的待解析的配置集合中
							*  触发新一轮的本流程*/

							/*xxx: 这个新的配置类，主要来自于  @ImportResource, 以及 registrar 生成*/
							candidates.add(new BeanDefinitionHolder(bd, candidateName));
						}
					}
				}
				candidateNames = newCandidateNames;
			}
		}
		while (!candidates.isEmpty());

		// Register the ImportRegistry as a bean in order to support ImportAware @Configuration classes
		if (sbr != null && !sbr.containsSingleton(IMPORT_REGISTRY_BEAN_NAME)) {
			sbr.registerSingleton(IMPORT_REGISTRY_BEAN_NAME, parser.getImportRegistry());
		}

		if (this.metadataReaderFactory instanceof CachingMetadataReaderFactory) {
			// Clear cache in externally provided MetadataReaderFactory; this is a no-op
			// for a shared cache since it'll be cleared by the ApplicationContext.
			((CachingMetadataReaderFactory) this.metadataReaderFactory).clearCache();
		}
	}

}

• 自动注入后置处理

/*xxx: 自动注入 注解后置处理器，是一个 bean后置处理器*/
public class AutowiredAnnotationBeanPostProcessor implements SmartInstantiationAwareBeanPostProcessor,
		MergedBeanDefinitionPostProcessor, PriorityOrdered, BeanFactoryAware {

    public AutowiredAnnotationBeanPostProcessor() {
		/*xxx: 自动注入，会处理 @Autowired @Value */
		this.autowiredAnnotationTypes.add(Autowired.class);
		this.autowiredAnnotationTypes.add(Value.class);
		try {
			this.autowiredAnnotationTypes.add((Class<? extends Annotation>)
					ClassUtils.forName("javax.inject.Inject", AutowiredAnnotationBeanPostProcessor.class.getClassLoader()));
			logger.trace("JSR-330 'javax.inject.Inject' annotation found and supported for autowiring");
		}
		catch (ClassNotFoundException ex) {
			// JSR-330 API not available - simply skip.
		}
	}

    /*xxx: 处理自动注入*/
    public void processInjection(Object bean) throws BeanCreationException {
    		Class<?> clazz = bean.getClass();
    		InjectionMetadata metadata = findAutowiringMetadata(clazz.getName(), clazz, null);
    		try {
    			metadata.inject(bean, null, null);
    		}
    		catch (BeanCreationException ex) {
    			throw ex;
    		}
    		catch (Throwable ex) {
    			throw new BeanCreationException(
    					"Injection of autowired dependencies failed for class [" + clazz + "]", ex);
    		}
    }

    //省略其它抽象...
}

public class InjectionMetadata {

    /*xxx: 无论是属性，还是变量，都是通过该方法进行注入的 */
    public void inject(Object target, @Nullable String beanName, @Nullable PropertyValues pvs) throws Throwable {
    		Collection<InjectedElement> checkedElements = this.checkedElements;
    		Collection<InjectedElement> elementsToIterate =
    				(checkedElements != null ? checkedElements : this.injectedElements);
    		if (!elementsToIterate.isEmpty()) {
    			for (InjectedElement element : elementsToIterate) {
    				if (logger.isTraceEnabled()) {
    					logger.trace("Processing injected element of bean '" + beanName + "': " + element);
    				}
    				element.inject(target, beanName, pvs);
    			}
    		}
    }

    public abstract static class InjectedElement {

        protected abstract void inject(Object target, @Nullable String requestingBeanName, @Nullable PropertyValues pvs)
        				throws Throwable;
    }

    //省略其它抽象...
}

private class AutowiredFieldElement extends InjectionMetadata.InjectedElement {
        @Override
        /*xxx: 进行属性bean，或者参数的注入 */
        protected void inject(Object bean, @Nullable String beanName, @Nullable PropertyValues pvs) throws Throwable {
        			Field field = (Field) this.member;
        			Object value;
        			if (this.cached) {
        				value = resolvedCachedArgument(beanName, this.cachedFieldValue);
        			}
        			else {
        				DependencyDescriptor desc = new DependencyDescriptor(field, this.required);
        				desc.setContainingClass(bean.getClass());
        				Set<String> autowiredBeanNames = new LinkedHashSet<>(1);
        				Assert.state(beanFactory != null, "No BeanFactory available");
        				TypeConverter typeConverter = beanFactory.getTypeConverter();
        				try {
        					/*xxx: 该方法会从容器中解析依赖的bean或者属性参数*/
        					value = beanFactory.resolveDependency(desc, beanName, autowiredBeanNames, typeConverter);
        				}
        				catch (BeansException ex) {
        					throw new UnsatisfiedDependencyException(null, beanName, new InjectionPoint(field), ex);
        				}
        				synchronized (this) {
        					if (!this.cached) {
        						if (value != null || this.required) {
        							this.cachedFieldValue = desc;
        							registerDependentBeans(beanName, autowiredBeanNames);
        							if (autowiredBeanNames.size() == 1) {
        								String autowiredBeanName = autowiredBeanNames.iterator().next();
        								if (beanFactory.containsBean(autowiredBeanName) &&
        										beanFactory.isTypeMatch(autowiredBeanName, field.getType())) {
        									this.cachedFieldValue = new ShortcutDependencyDescriptor(
        											desc, autowiredBeanName, field.getType());
        								}
        							}
        						}
        						else {
        							this.cachedFieldValue = null;
        						}
        						this.cached = true;
        					}
        				}
        			}
        			if (value != null) {
        				/*xxx: 属性注入，是通过反射完成的*/
        				ReflectionUtils.makeAccessible(field);
        				field.set(bean, value);
        			}
        	}
        }

        //省略其它抽象...
}


private class AutowiredMethodElement extends InjectionMetadata.InjectedElement {

        @Override
        protected void inject(Object bean, @Nullable String beanName, @Nullable PropertyValues pvs) throws Throwable {
        			if (checkPropertySkipping(pvs)) {
        				return;
        			}
        			Method method = (Method) this.member;
        			Object[] arguments;
        			if (this.cached) {
        				// Shortcut for avoiding synchronization...
        				arguments = resolveCachedArguments(beanName);
        			}
        			else {
        				int argumentCount = method.getParameterCount();
        				arguments = new Object[argumentCount];
        				DependencyDescriptor[] descriptors = new DependencyDescriptor[argumentCount];
        				Set<String> autowiredBeans = new LinkedHashSet<>(argumentCount);
        				Assert.state(beanFactory != null, "No BeanFactory available");
        				TypeConverter typeConverter = beanFactory.getTypeConverter();
        				for (int i = 0; i < arguments.length; i++) {
        					MethodParameter methodParam = new MethodParameter(method, i);
        					DependencyDescriptor currDesc = new DependencyDescriptor(methodParam, this.required);
        					currDesc.setContainingClass(bean.getClass());
        					descriptors[i] = currDesc;
        					try {
        						Object arg = beanFactory.resolveDependency(currDesc, beanName, autowiredBeans, typeConverter);
        						if (arg == null && !this.required) {
        							arguments = null;
        							break;
        						}
        						arguments[i] = arg;
        					}
        					catch (BeansException ex) {
        						throw new UnsatisfiedDependencyException(null, beanName, new InjectionPoint(methodParam), ex);
        					}
        				}
        				synchronized (this) {
        					if (!this.cached) {
        						if (arguments != null) {
        							DependencyDescriptor[] cachedMethodArguments = Arrays.copyOf(descriptors, arguments.length);
        							registerDependentBeans(beanName, autowiredBeans);
        							if (autowiredBeans.size() == argumentCount) {
        								Iterator<String> it = autowiredBeans.iterator();
        								Class<?>[] paramTypes = method.getParameterTypes();
        								for (int i = 0; i < paramTypes.length; i++) {
        									String autowiredBeanName = it.next();
        									if (beanFactory.containsBean(autowiredBeanName) &&
        											beanFactory.isTypeMatch(autowiredBeanName, paramTypes[i])) {
        										cachedMethodArguments[i] = new ShortcutDependencyDescriptor(
        												descriptors[i], autowiredBeanName, paramTypes[i]);
        									}
        								}
        							}
        							this.cachedMethodArguments = cachedMethodArguments;
        						}
        						else {
        							this.cachedMethodArguments = null;
        						}
        						this.cached = true;
        					}
        				}
        			}
        			if (arguments != null) {
        				try {
        					ReflectionUtils.makeAccessible(method);
        					method.invoke(bean, arguments);
        				}
        				catch (InvocationTargetException ex) {
        					throw ex.getTargetException();
        				}
        			}
        }

}

配置类的解析

/*xxx: 配置类解析器 */
class ConfigurationClassParser {

    /*xxx: 进行解析 */
    public void parse(Set<BeanDefinitionHolder> configCandidates) {
    		/*xxx:遍历处理 本次 即将解析的 所有 配置类
    		*  注意，此刻的入参，均为带有  @Configuration的配置类*/
    		for (BeanDefinitionHolder holder : configCandidates) {
    			BeanDefinition bd = holder.getBeanDefinition();
    			try {
    				/*xxx: 根据配置类的具体情况，调用相应的解析方法*/
    				if (bd instanceof AnnotatedBeanDefinition) {
    					parse(((AnnotatedBeanDefinition) bd).getMetadata(), holder.getBeanName());
    				}
    				else if (bd instanceof AbstractBeanDefinition && ((AbstractBeanDefinition) bd).hasBeanClass()) {
    					parse(((AbstractBeanDefinition) bd).getBeanClass(), holder.getBeanName());
    				}
    				else {
    					parse(bd.getBeanClassName(), holder.getBeanName());
    				}
    			}
    			catch (BeanDefinitionStoreException ex) {
    				throw ex;
    			}
    			catch (Throwable ex) {
    				throw new BeanDefinitionStoreException(
    						"Failed to parse configuration class [" + bd.getBeanClassName() + "]", ex);
    			}
    		}

    		this.deferredImportSelectorHandler.process();
    }

    protected final void parse(Class<?> clazz, String beanName) throws IOException {
    		processConfigurationClass(new ConfigurationClass(clazz, beanName), DEFAULT_EXCLUSION_FILTER);
    }

    /*xxx: 实际解析配置类的方法*/
    protected void processConfigurationClass(ConfigurationClass configClass, Predicate<String> filter) throws IOException {
    		/*xxx: 首先，如果当前的 配置类，不符合配置要求，则跳过*/
    		if (this.conditionEvaluator.shouldSkip(configClass.getMetadata(), ConfigurationPhase.PARSE_CONFIGURATION)) {
    			return;
    		}

    		ConfigurationClass existingClass = this.configurationClasses.get(configClass);
    		/*xxx: 如果当前的配置类，已经在前面的过程中被解析过，则要么忽略 出栈，要么进行替换*/
    		if (existingClass != null) {
    			if (configClass.isImported()) {
    				if (existingClass.isImported()) {
    					existingClass.mergeImportedBy(configClass);
    				}
    				// Otherwise ignore new imported config class; existing non-imported class overrides it.
    				return;
    			}
    			else {
    				// Explicit bean definition found, probably replacing an import.
    				// Let's remove the old one and go with the new one.
    				this.configurationClasses.remove(configClass);
    				this.knownSuperclasses.values().removeIf(configClass::equals);
    			}
    		}

    		// Recursively process the configuration class and its superclass hierarchy.
    		SourceClass sourceClass = asSourceClass(configClass, filter);
    		/*xxx: 从这个类的层级关系进行解析*/
    		do {
    			sourceClass = doProcessConfigurationClass(configClass, sourceClass, filter);
    		}
    		while (sourceClass != null);

    		/*xxx:解析完成后，进行缓存，缓存的是每个配置类*/
    		this.configurationClasses.put(configClass, configClass);
    }

    @Nullable
    protected final SourceClass doProcessConfigurationClass(
    			ConfigurationClass configClass, SourceClass sourceClass, Predicate<String> filter)
    			throws IOException {
    		/*xxx: 1.首先解析 @Component的注解，即将配置类本身注册为beanDefinition*/
    		if (configClass.getMetadata().isAnnotated(Component.class.getName())) {
    			// Recursively process any member (nested) classes first
    			processMemberClasses(configClass, sourceClass, filter);
    		}

    		/*xxx:2.然后解析@PropertySources注解*/
    		// Process any @PropertySource annotations
    		for (AnnotationAttributes propertySource : AnnotationConfigUtils.attributesForRepeatable(
    				sourceClass.getMetadata(), PropertySources.class,
    				PropertySource.class)) {
    			if (this.environment instanceof ConfigurableEnvironment) {
    				processPropertySource(propertySource);
    			}
    			else {
    				logger.info("Ignoring @PropertySource annotation on [" + sourceClass.getMetadata().getClassName() +
    						"]. Reason: Environment must implement ConfigurableEnvironment");
    			}
    		}

    		/*xxx:3.解析 ComponentScan注解*/
    		// Process any @ComponentScan annotations
    		Set<AnnotationAttributes> componentScans = AnnotationConfigUtils.attributesForRepeatable(
    				sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class);
    		if (!componentScans.isEmpty() &&
    				!this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) {
    			for (AnnotationAttributes componentScan : componentScans) {
    				// The config class is annotated with @ComponentScan -> perform the scan immediately
    				/*xxx:具有 @ComponentScan的配置类，立即进行扫描*/
    				Set<BeanDefinitionHolder> scannedBeanDefinitions =
    						this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName());
    				// Check the set of scanned definitions for any further config classes and parse recursively if needed
    				for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
    					BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
    					if (bdCand == null) {
    						bdCand = holder.getBeanDefinition();
    					}
    					if (ConfigurationClassUtils.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
    						/*xxx: 对所有被componentScan扫描到的  所有配置类，进行解析
    						*  包括：轻量级的 @Component,@ComponentScan,@Import,@ImportResource   以及 重量级的 @Configuration
    						*  实际上，整个流程就构成了一棵 树形结构的 深度遍历*/
    						parse(bdCand.getBeanClassName(), holder.getBeanName());
    					}
    				}
    			}
    		}

    		/*xxx: 处理 @Import注解*/
    		// Process any @Import annotations
    		processImports(configClass, sourceClass, getImports(sourceClass), filter, true);

    		/*xxx: 处理 @ImportResource注解，这种情况下，可以把 xml配置文件 给引入进来*/
    		// Process any @ImportResource annotations
    		AnnotationAttributes importResource =
    				AnnotationConfigUtils.attributesFor(sourceClass.getMetadata(), ImportResource.class);
    		if (importResource != null) {
    			String[] resources = importResource.getStringArray("locations");
    			Class<? extends BeanDefinitionReader> readerClass = importResource.getClass("reader");
    			for (String resource : resources) {
    				String resolvedResource = this.environment.resolveRequiredPlaceholders(resource);
    				/*xxx: 处理 @ImportResource，也是将其进行暂存，然后在后续的处理流程中进行处理*/
    				configClass.addImportedResource(resolvedResource, readerClass);
    			}
    		}

    		/*xxx: 处理 本身的 @Bean方法*/
    		// Process individual @Bean methods
    		Set<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);
    		for (MethodMetadata methodMetadata : beanMethods) {
    			/*xxx: 对@Bean的处理，也是放置在缓存中，后续进行处理 */
    			configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
    		}

    		// Process default methods on interfaces
    		/*xxx: 处理默认的接口方法*/
    		processInterfaces(configClass, sourceClass);

    		// Process superclass, if any
    		/*xxx: 遍历取出超类*/
    		if (sourceClass.getMetadata().hasSuperClass()) {
    			String superclass = sourceClass.getMetadata().getSuperClassName();
    			if (superclass != null && !superclass.startsWith("java") &&
    					!this.knownSuperclasses.containsKey(superclass)) {
    				this.knownSuperclasses.put(superclass, configClass);
    				// Superclass found, return its annotation metadata and recurse
    				return sourceClass.getSuperClass();
    			}
    		}

    		// No superclass -> processing is complete
    		return null;
    }

    /*xxx: 处理引入配置，selector 或者 registrar 本身也会作为一个 配置类进行循环调用 */
    private void processImports(ConfigurationClass configClass, SourceClass currentSourceClass,
    			Collection<SourceClass> importCandidates, Predicate<String> exclusionFilter,
    			boolean checkForCircularImports) {

    		if (importCandidates.isEmpty()) {
    			return;
    		}

    		/*xxx: 判断是否循环引入，并入引用栈*/
    		if (checkForCircularImports && isChainedImportOnStack(configClass)) {
    			this.problemReporter.error(new CircularImportProblem(configClass, this.importStack));
    		}
    		else {
    			this.importStack.push(configClass);
    			try {
    				for (SourceClass candidate : importCandidates) {
    					/*xxx: 如果引入的是  ImportSelector，则根据条件进行引入配置*/
    					if (candidate.isAssignable(ImportSelector.class)) {
    						// Candidate class is an ImportSelector -> delegate to it to determine imports
    						Class<?> candidateClass = candidate.loadClass();
    						ImportSelector selector = ParserStrategyUtils.instantiateClass(candidateClass, ImportSelector.class,
    								this.environment, this.resourceLoader, this.registry);
    						Predicate<String> selectorFilter = selector.getExclusionFilter();
    						if (selectorFilter != null) {
    							exclusionFilter = exclusionFilter.or(selectorFilter);
    						}
    						/*xxx: 分为直接处理 import,以及异步处理import*/
    						if (selector instanceof DeferredImportSelector) {
    							this.deferredImportSelectorHandler.handle(configClass, (DeferredImportSelector) selector);
    						}
    						else {
    							/*xxx: 根据条件，检出需要装载的类， 被装载的类会走一遍自身的递归流程*/
    							String[] importClassNames = selector.selectImports(currentSourceClass.getMetadata());
    							Collection<SourceClass> importSourceClasses = asSourceClasses(importClassNames, exclusionFilter);
    							processImports(configClass, currentSourceClass, importSourceClasses, exclusionFilter, false);
    						}
    					}
    					/*xxx: 如果引入的是 ImportBeanDefinitionRegistrar*/
    					else if (candidate.isAssignable(ImportBeanDefinitionRegistrar.class)) {
    						// Candidate class is an ImportBeanDefinitionRegistrar ->
    						// delegate to it to register additional bean definitions
    						Class<?> candidateClass = candidate.loadClass();
    						/*xxx:如果引入配置的类是 ImportaBeanDefinitionRegistrar的子类，则在这里 处理动态引入bean的操作*/
    						ImportBeanDefinitionRegistrar registrar =
    								ParserStrategyUtils.instantiateClass(candidateClass, ImportBeanDefinitionRegistrar.class,
    										this.environment, this.resourceLoader, this.registry);
    						/*xxx: 将该registrar进行缓存，在后续流程中，进行处理*/
    						configClass.addImportBeanDefinitionRegistrar(registrar, currentSourceClass.getMetadata());
    					}
    					else {
    						// Candidate class not an ImportSelector or ImportBeanDefinitionRegistrar ->
    						// process it as an @Configuration class
    						/*xxx: 如果引入的类，既不是 ImportSelector，也不是 ImportBeanDefinitionRegistrar,则把它当作 配置类来进行处理*/
    						this.importStack.registerImport(
    								currentSourceClass.getMetadata(), candidate.getMetadata().getClassName());
    						processConfigurationClass(candidate.asConfigClass(configClass), exclusionFilter);
    					}
    				}
    			}
    			catch (BeanDefinitionStoreException ex) {
    				throw ex;
    			}
    			catch (Throwable ex) {
    				throw new BeanDefinitionStoreException(
    						"Failed to process import candidates for configuration class [" +
    						configClass.getMetadata().getClassName() + "]", ex);
    			}
    			finally {
    				this.importStack.pop();
    			}
    		}
    }

    //省略其它抽象...
}

在注解环境使用xml配置

/*xxx: 配置类解析器 */
class ConfigurationClassParser {

    @Nullable
    protected final SourceClass doProcessConfigurationClass(
    			ConfigurationClass configClass, SourceClass sourceClass, Predicate<String> filter)
    			throws IOException {
    		//...
            /*xxx: 处理 @ImportResource注解，这种情况下，可以把 xml配置文件 给引入进来*/
            // Process any @ImportResource annotations
            AnnotationAttributes importResource =
            				AnnotationConfigUtils.attributesFor(sourceClass.getMetadata(), ImportResource.class);
            if (importResource != null) {
            			String[] resources = importResource.getStringArray("locations");
            			Class<? extends BeanDefinitionReader> readerClass = importResource.getClass("reader");
            			for (String resource : resources) {
            				String resolvedResource = this.environment.resolveRequiredPlaceholders(resource);
            				/*xxx: 处理 @ImportResource，也是将其进行暂存，然后在后续的处理流程中进行处理*/
            				configClass.addImportedResource(resolvedResource, readerClass);
            	        }
            }
            //...
            return null;
    }

    //省略其它抽象...
}

两类常见上下文

ClassPathXmlApplicationContext

public class ClassPathXmlApplicationContext extends AbstractXmlApplicationContext {
    public ClassPathXmlApplicationContext(String[] paths, Class<?> clazz, @Nullable ApplicationContext parent)
    			throws BeansException {

    		super(parent);
    		Assert.notNull(paths, "Path array must not be null");
    		Assert.notNull(clazz, "Class argument must not be null");
    		this.configResources = new Resource[paths.length];
    		for (int i = 0; i < paths.length; i++) {
    			this.configResources[i] = new ClassPathResource(paths[i], clazz);
    		}
    		refresh();
    }

   //省略其它抽象...
}

public abstract class AbstractXmlApplicationContext extends AbstractRefreshableConfigApplicationContext {

   @Override
   protected void loadBeanDefinitions(DefaultListableBeanFactory beanFactory) throws BeansException, IOException {
   		// Create a new XmlBeanDefinitionReader for the given BeanFactory.
   		XmlBeanDefinitionReader beanDefinitionReader = new XmlBeanDefinitionReader(beanFactory);

   		// Configure the bean definition reader with this context's
   		// resource loading environment.
   		beanDefinitionReader.setEnvironment(this.getEnvironment());
   		beanDefinitionReader.setResourceLoader(this);
   		beanDefinitionReader.setEntityResolver(new ResourceEntityResolver(this));

   		// Allow a subclass to provide custom initialization of the reader,
   		// then proceed with actually loading the bean definitions.
   		initBeanDefinitionReader(beanDefinitionReader);
   		loadBeanDefinitions(beanDefinitionReader);
   }

   protected void loadBeanDefinitions(XmlBeanDefinitionReader reader) throws BeansException, IOException {
   		Resource[] configResources = getConfigResources();
   		if (configResources != null) {
   			reader.loadBeanDefinitions(configResources);
   		}
   		String[] configLocations = getConfigLocations();
   		if (configLocations != null) {
   			reader.loadBeanDefinitions(configLocations);
   		}
   }

   //省略其它抽象...
}

AnnotationConfigApplication

/*xxx: 基于 注解配置的 应用上下文。 */
public class AnnotationConfigApplicationContext extends GenericApplicationContext implements AnnotationConfigRegistry {

    public AnnotationConfigApplicationContext() {
    		StartupStep createAnnotatedBeanDefReader = this.getApplicationStartup().start("spring.context.annotated-bean-reader.create");
    		/*xxx: 在初始化该类时，会在工厂中注册一个 名称为 internalConfigurationAnnotationProcessor的 配置类工厂后置处理器*/
    		this.reader = new AnnotatedBeanDefinitionReader(this);
    		createAnnotatedBeanDefReader.end();
    		this.scanner = new ClassPathBeanDefinitionScanner(this);
    }

    public AnnotationConfigApplicationContext(String... basePackages) {
    		this();
    		scan(basePackages);
    		refresh();
    }

    @Override
    public void scan(String... basePackages) {
    		Assert.notEmpty(basePackages, "At least one base package must be specified");
    		StartupStep scanPackages = this.getApplicationStartup().start("spring.context.base-packages.scan")
    				.tag("packages", () -> Arrays.toString(basePackages));
    		this.scanner.scan(basePackages);
    		scanPackages.end();
    }
    //省略其它抽象
}

• 二者区别：
  • xml形式，依赖的是 AbstractRefreshableApplicationContext完成容器中 BeanDefinition的填充；
  • annotation形式，依赖的是 GenericApplicationContext,其加载逻辑，由本身实现，靠 sanner完成;
  • 二者区别在于，加载beanDefinition的方式不同，但是 内部的处理逻辑是浑然一体的。

切面编程

切面编程的关键类及抽象

• 代理工厂

/*xxx: 顶级接口: 获取类的类型*/
public interface TargetClassAware {
    @Nullable
    Class<?> getTargetClass();
}

/*xxx: 被通知的对象，即需要动态代理的对象 */
public interface Advised extends TargetClassAware {
    /*xxx: 是否是在代理类，而非接口 */
    boolean isProxyTargetClass();

    /*xxx: 追加一个通知到通知链尾部 （在内部处理成一个 通知器）*/
    void addAdvice(Advice advice) throws AopConfigException;

    /*xxx: 为当前的通知器链 添加一个通知器 */
    void addAdvisor(Advisor advisor) throws AopConfigException;

    //省略其它抽象
}

/*xxx: 被代理对象包装器*/
public class AdvisedSupport extends ProxyConfig implements Advised {
    //省略其它抽象
}

/*xxx: 动态代理生成器*/
public class ProxyCreatorSupport extends AdvisedSupport {
    /*xxx： 创建aop动态代理*/
    protected final synchronized AopProxy createAopProxy() {
    		if (!this.active) {
    			activate();
    		}
    		/*xxx:通过 aop动态代理工厂 创建 aop动态代理*/
    		return getAopProxyFactory().createAopProxy(this);
    }

    //省略其它抽象...
}

/*xxx: 代理工厂*/
public class ProxyFactory extends ProxyCreatorSupport {
    public ProxyFactory(Object target) {
    		/*xxx: 允许实例化时，指定被代理的类，也就是AOP应用的 基础*/
    		setTarget(target);
    		/*xxx: 提取被代理对象的所有接口*/
    		setInterfaces(ClassUtils.getAllInterfaces(target));
    }

    /*xxx: 获取代理对象,具有多个重载方法，最终都是通过这个流程完成*/
    public Object getProxy() {
    		return createAopProxy().getProxy();
    }

    //省略其它抽象...
}

• 动态代理

/*xxx: 顶级接口，aop动态代理接口 */
public interface AopProxy {

    /*xxx:  获取动态代理对象（被编织后的对象）*/
    Object getProxy();

}

/*xxx: jdk动态代理对象，它的实现，主要依靠  InvocationHandler 提供，具体的实现，由jdk实现 */
final class JdkDynamicAopProxy implements AopProxy, InvocationHandler, Serializable {
    @Override
    public Object getProxy(@Nullable ClassLoader classLoader) {
    		if (logger.isTraceEnabled()) {
    			logger.trace("Creating JDK dynamic proxy: " + this.advised.getTargetSource());
    		}
    		/*xxx: 通过JDK的Proxy完成动态代理类的编织*/
    		return Proxy.newProxyInstance(classLoader, this.proxiedInterfaces, this);
    }

    @Override
    @Nullable
    /*xxx: 第二个参数方法为实际要执行的方法，这个流程就是  对需要执行的方法，获取匹配了它的所有通知器*/
    /*xxx: 该方法也是 jdk动态代理实现的核心 */
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
    		Object oldProxy = null;
    		boolean setProxyContext = false;

    		/*xxx: 获取被代理对象的类信息 */
    		TargetSource targetSource = this.advised.targetSource;
    		Object target = null;

    		try {
    			if (!this.equalsDefined && AopUtils.isEqualsMethod(method)) {
    				// The target does not implement the equals(Object) method itself.
    				/*xxx: 如果被代理对象没有重写 equals方法，则调用本地的方法。 比较的是被代理对象*/
    				return equals(args[0]);
    			}
    			else if (!this.hashCodeDefined && AopUtils.isHashCodeMethod(method)) {
    				// The target does not implement the hashCode() method itself.
    				/*xxx: 如果被代理对象没有重写 hashCode 方法，则调用本地的 hashCode 方法。*/
    				return hashCode();
    			}
    			else if (method.getDeclaringClass() == DecoratingProxy.class) {
    				// There is only getDecoratedClass() declared -> dispatch to proxy config.
    				/*xxx: 如果实现了 DecoratingProxy的方法，则 分发给代理配置 */
    				return AopProxyUtils.ultimateTargetClass(this.advised);
    			}
    			else if (!this.advised.opaque && method.getDeclaringClass().isInterface() &&
    					method.getDeclaringClass().isAssignableFrom(Advised.class)) {
    				// Service invocations on ProxyConfig with the proxy config...
    				/*xxx: 使用代理配置在ProxyConfig上调用服务*/
    				return AopUtils.invokeJoinpointUsingReflection(this.advised, method, args);
    			}

    			/*xxx: 返回值*/
    			Object retVal;

    			/*xxx: 如果需要暴露至 threadLocal，则进行暴露 */
    			if (this.advised.exposeProxy) {
    				// Make invocation available if necessary.
    				oldProxy = AopContext.setCurrentProxy(proxy);
    				setProxyContext = true;
    			}

    			// Get as late as possible to minimize the time we "own" the target,
    			// in case it comes from a pool.
    			/*xxx: 获取被代理对象*/
    			target = targetSource.getTarget();
    			/*xxx: 对被代理类进行非空安全检查*/
    			Class<?> targetClass = (target != null ? target.getClass() : null);

    			// Get the interception chain for this method.
    			/*xxx: 获取被代理类的当前方法的拦截器链 */
    			List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);

    			// Check whether we have any advice. If we don't, we can fallback on direct
    			// reflective invocation of the target, and avoid creating a MethodInvocation.
    			/*xxx: 如果没有匹配的通知器，则直接通过反射进行调用*/
    			if (chain.isEmpty()) {
    				// We can skip creating a MethodInvocation: just invoke the target directly
    				// Note that the final invoker must be an InvokerInterceptor so we know it does
    				// nothing but a reflective operation on the target, and no hot swapping or fancy proxying.
    				Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
    				retVal = AopUtils.invokeJoinpointUsingReflection(target, method, argsToUse);
    			}
    			else {
    				// We need to create a method invocation...
    				/*xxx: 根据切面的配置，构造方法执行链*/
    				MethodInvocation invocation =
    						new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);
    				// Proceed to the joinpoint through the interceptor chain.
    				/*xxx:通过过滤器链逐步执行连接点，每一个拦截器即是一个连接点 */
    				retVal = invocation.proceed();
    			}

    			// Massage return value if necessary.
    			Class<?> returnType = method.getReturnType();
    			if (retVal != null && retVal == target &&
    					returnType != Object.class && returnType.isInstance(proxy) &&
    					!RawTargetAccess.class.isAssignableFrom(method.getDeclaringClass())) {
    				// Special case: it returned "this" and the return type of the method
    				// is type-compatible. Note that we can't help if the target sets
    				// a reference to itself in another returned object.
    				retVal = proxy;
    			}
    			else if (retVal == null && returnType != Void.TYPE && returnType.isPrimitive()) {
    				throw new AopInvocationException(
    						"Null return value from advice does not match primitive return type for: " + method);
    			}
    			return retVal;
    		}
    		finally {
    			if (target != null && !targetSource.isStatic()) {
    				// Must have come from TargetSource.
    				targetSource.releaseTarget(target);
    			}
    			if (setProxyContext) {
    				// Restore old proxy.
    				AopContext.setCurrentProxy(oldProxy);
    			}
    		}
    }

    //省略其它抽象...
}

/*xxx: cglib的动态代理实现 */
class CglibAopProxy implements AopProxy, Serializable {

    @Override
    /*xxx: 获取动态代理对象 */
    public Object getProxy(@Nullable ClassLoader classLoader) {
    		if (logger.isTraceEnabled()) {
    			logger.trace("Creating CGLIB proxy: " + this.advised.getTargetSource());
    		}

    		try {
    			/*xxx: 获取需要被代理的对象 */
    			Class<?> rootClass = this.advised.getTargetClass();
    			Assert.state(rootClass != null, "Target class must be available for creating a CGLIB proxy");

    			Class<?> proxySuperClass = rootClass;
    			/*xxx: 如果已经被代理过，则获取原始对象 */
    			if (rootClass.getName().contains(ClassUtils.CGLIB_CLASS_SEPARATOR)) {
    				proxySuperClass = rootClass.getSuperclass();
    				Class<?>[] additionalInterfaces = rootClass.getInterfaces();
    				/*xxx: 将原始类需要被实现的接口进行重写 */
    				for (Class<?> additionalInterface : additionalInterfaces) {
    					this.advised.addInterface(additionalInterface);
    				}
    			}

    			// Validate the class, writing log messages as necessary.
    			/*xxx: 对类进行合法性验证 */
    			validateClassIfNecessary(proxySuperClass, classLoader);

    			// Configure CGLIB Enhancer...
    			/*xxx: 创建 Enhancer 实例对象 */
    			Enhancer enhancer = createEnhancer();
    			if (classLoader != null) {
    				enhancer.setClassLoader(classLoader);
    				if (classLoader instanceof SmartClassLoader &&
    						((SmartClassLoader) classLoader).isClassReloadable(proxySuperClass)) {
    					enhancer.setUseCache(false);
    				}
    			}
    			/*xxx: 设置需要被代理的类 */
    			enhancer.setSuperclass(proxySuperClass);
    			/*xxx: 设置需要被代理的接口 */
    			enhancer.setInterfaces(AopProxyUtils.completeProxiedInterfaces(this.advised));
    			enhancer.setNamingPolicy(SpringNamingPolicy.INSTANCE);
    			enhancer.setStrategy(new ClassLoaderAwareGeneratorStrategy(classLoader));

    			Callback[] callbacks = getCallbacks(rootClass);
    			Class<?>[] types = new Class<?>[callbacks.length];
    			for (int x = 0; x < types.length; x++) {
    				types[x] = callbacks[x].getClass();
    			}
    			// fixedInterceptorMap only populated at this point, after getCallbacks call above
    			enhancer.setCallbackFilter(new ProxyCallbackFilter(
    					this.advised.getConfigurationOnlyCopy(), this.fixedInterceptorMap, this.fixedInterceptorOffset));
    			/*xxx: 设置回调拦截器*/
    			enhancer.setCallbackTypes(types);

    			// Generate the proxy class and create a proxy instance.
    			/*xxx: 创建cglib动态代理实例*/
    			return createProxyClassAndInstance(enhancer, callbacks);
    		}
    		catch (CodeGenerationException | IllegalArgumentException ex) {
    			throw new AopConfigException("Could not generate CGLIB subclass of " + this.advised.getTargetClass() +
    					": Common causes of this problem include using a final class or a non-visible class",
    					ex);
    		}
    		catch (Throwable ex) {
    			// TargetSource.getTarget() failed
    			throw new AopConfigException("Unexpected AOP exception", ex);
    		}
    }

    /*xxx: 获取切面操作，也就是Callback */
    private Callback[] getCallbacks(Class<?> rootClass) throws Exception {
    		// Parameters used for optimization choices...
    		boolean exposeProxy = this.advised.isExposeProxy();
    		boolean isFrozen = this.advised.isFrozen();
    		boolean isStatic = this.advised.getTargetSource().isStatic();

    		// Choose an "aop" interceptor (used for AOP calls).
    		/*xxx： 创建 cgLib层面的 动态切面拦截器，动态代理编织主要通过它完成*/
    		Callback aopInterceptor = new DynamicAdvisedInterceptor(this.advised);

    		// Choose a "straight to target" interceptor. (used for calls that are
    		// unadvised but can return this). May be required to expose the proxy.
    		Callback targetInterceptor;
    		if (exposeProxy) {
    			targetInterceptor = (isStatic ?
    					new StaticUnadvisedExposedInterceptor(this.advised.getTargetSource().getTarget()) :
    					new DynamicUnadvisedExposedInterceptor(this.advised.getTargetSource()));
    		}
    		else {
    			targetInterceptor = (isStatic ?
    					new StaticUnadvisedInterceptor(this.advised.getTargetSource().getTarget()) :
    					new DynamicUnadvisedInterceptor(this.advised.getTargetSource()));
    		}

    		// Choose a "direct to target" dispatcher (used for
    		// unadvised calls to static targets that cannot return this).
    		Callback targetDispatcher = (isStatic ?
    				new StaticDispatcher(this.advised.getTargetSource().getTarget()) : new SerializableNoOp());

    		/*xxx: 将切面包装成拦截器链*/
    		Callback[] mainCallbacks = new Callback[] {
    				aopInterceptor,  // for normal advice
    				targetInterceptor,  // invoke target without considering advice, if optimized
    				new SerializableNoOp(),  // no override for methods mapped to this
    				targetDispatcher, this.advisedDispatcher,
    				new EqualsInterceptor(this.advised),
    				new HashCodeInterceptor(this.advised)
    		};

    		Callback[] callbacks;

    		// If the target is a static one and the advice chain is frozen,
    		// then we can make some optimizations by sending the AOP calls
    		// direct to the target using the fixed chain for that method.
    		if (isStatic && isFrozen) {
    			Method[] methods = rootClass.getMethods();
    			Callback[] fixedCallbacks = new Callback[methods.length];
    			this.fixedInterceptorMap = CollectionUtils.newHashMap(methods.length);

    			// TODO: small memory optimization here (can skip creation for methods with no advice)
    			for (int x = 0; x < methods.length; x++) {
    				Method method = methods[x];
    				List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, rootClass);
    				fixedCallbacks[x] = new FixedChainStaticTargetInterceptor(
    						chain, this.advised.getTargetSource().getTarget(), this.advised.getTargetClass());
    				this.fixedInterceptorMap.put(method, x);
    			}

    			// Now copy both the callbacks from mainCallbacks
    			// and fixedCallbacks into the callbacks array.
    			callbacks = new Callback[mainCallbacks.length + fixedCallbacks.length];
    			System.arraycopy(mainCallbacks, 0, callbacks, 0, mainCallbacks.length);
    			System.arraycopy(fixedCallbacks, 0, callbacks, mainCallbacks.length, fixedCallbacks.length);
    			this.fixedInterceptorOffset = mainCallbacks.length;
    		}
    		else {
    			callbacks = mainCallbacks;
    		}
    		return callbacks;
    }

    //省略其它抽象...

    /*xxx: aop与cglib 的结合原理*/
    private static class DynamicAdvisedInterceptor implements MethodInterceptor, Serializable {

        @Override
        @Nullable
        public Object intercept(Object proxy, Method method, Object[] args, MethodProxy methodProxy) throws Throwable {
        			Object oldProxy = null;
        			boolean setProxyContext = false;
        			Object target = null;
        			TargetSource targetSource = this.advised.getTargetSource();
        			try {
        				/*xxx: 是否需要暴露到 threadLocal */
        				if (this.advised.exposeProxy) {
        					// Make invocation available if necessary.
        					oldProxy = AopContext.setCurrentProxy(proxy);
        					setProxyContext = true;
        				}
        				// Get as late as possible to minimize the time we "own" the target, in case it comes from a pool...
        				target = targetSource.getTarget();
        				Class<?> targetClass = (target != null ? target.getClass() : null);
        				/*xxx: 获取 通知器链*/
        				List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);
        				Object retVal;
        				// Check whether we only have one InvokerInterceptor: that is,
        				// no real advice, but just reflective invocation of the target.
        				if (chain.isEmpty() && Modifier.isPublic(method.getModifiers())) {
        					// We can skip creating a MethodInvocation: just invoke the target directly.
        					// Note that the final invoker must be an InvokerInterceptor, so we know
        					// it does nothing but a reflective operation on the target, and no hot
        					// swapping or fancy proxying.
        					Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
        					retVal = methodProxy.invoke(target, argsToUse);
        				}
        				else {
        					// We need to create a method invocation...
        					retVal = new CglibMethodInvocation(proxy, target, method, args, targetClass, chain, methodProxy).proceed();
        				}
        				retVal = processReturnType(proxy, target, method, retVal);
        				return retVal;
        			}
        			finally {
        				if (target != null && !targetSource.isStatic()) {
        					targetSource.releaseTarget(target);
        				}
        				if (setProxyContext) {
        					// Restore old proxy.
        					AopContext.setCurrentProxy(oldProxy);
        				}
        			}
        }

        //省略其它抽象
    }

}

• 连接点

/*xxx: 连接点 */
public interface Joinpoint {
    @Nullable
    /*xxx: 处理链上的下一个拦截器*/
    Object proceed() throws Throwable;
}

/*xxx： 当前接口代表程序中的一次执行 */
public interface Invocation extends Joinpoint {
    @Nonnull
    /*xxx: 获取参数数组*/
    Object[] getArguments();
}

/*xxx: 描述一个方法的执行*/
public interface MethodInvocation extends Invocation {
    @Nonnull
    /*xxx: 获取需要被调用的方法 */
    Method getMethod();
}

/*xxx: 用于在方法执行准备过程中，进行动态代理*/
public interface ProxyMethodInvocation extends MethodInvocation {
    //省略其它抽象...
}

/*xxx: 反射方法调用的连接点 */
public class ReflectiveMethodInvocation implements ProxyMethodInvocation, Cloneable {

    @Override
    @Nullable
    public Object proceed() throws Throwable {
    		/*xxx: 该方法为 jdk的AOP实现的核心 */
    		// We start with an index of -1 and increment early.
    		/*xxx: 从拦截器链条的尾部向头部进行递归执行*/
    		if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
    			return invokeJoinpoint();
    		}

    		Object interceptorOrInterceptionAdvice =
    				this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);

    		/*xxx: 如果通知器为 动态方法匹配拦截器，则还需要方法是否匹配的验证 */
    		if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
    			// Evaluate dynamic method matcher here: static part will already have
    			// been evaluated and found to match.
    			InterceptorAndDynamicMethodMatcher dm =
    					(InterceptorAndDynamicMethodMatcher) interceptorOrInterceptionAdvice;
    			Class<?> targetClass = (this.targetClass != null ? this.targetClass : this.method.getDeclaringClass());
    			if (dm.methodMatcher.matches(this.method, targetClass, this.arguments)) {
    				return dm.interceptor.invoke(this);
    			}
    			else {
    				// Dynamic matching failed.
    				// Skip this interceptor and invoke the next in the chain.
    				return proceed();
    			}
    		}
    		else {
    			// It's an interceptor, so we just invoke it: The pointcut will have
    			// been evaluated statically before this object was constructed.
    			/*xxx: 获取通知，并进行执行 */
    			return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);
    		}
    }

    //省略其它抽象

}

/*xxx: cglib的方法反射调用 */
private static class CglibMethodInvocation extends ReflectiveMethodInvocation {

        @Override
        @Nullable
        /*xxx: 连接点的流转*/
        public Object proceed() throws Throwable {
        			try {
        				return super.proceed();
        			}
        			catch (RuntimeException ex) {
        				throw ex;
        			}
        			catch (Exception ex) {
        				if (ReflectionUtils.declaresException(getMethod(), ex.getClass())) {
        					throw ex;
        				}
        				else {
        					throw new UndeclaredThrowableException(ex);
        				}
        			}
        }

        //省略其它抽象...
}

• 拦截器

/*xxx:顶级接口，通知*/
public interface Advice {

}

/*xxx: 拦截器*/
public interface Interceptor extends Advice {

}

@FunctionalInterface
/*xxx: 方法拦截器*/
public interface MethodInterceptor extends Interceptor {

    @Nullable
    /*xxx: 执行方法 */
    Object invoke(@Nonnull MethodInvocation invocation) throws Throwable;

}

@FunctionalInterface
/*xxx: 方法拦截器*/
public interface MethodInterceptor extends Interceptor {

    @Nullable
    /*xxx: 执行方法 */
    Object invoke(@Nonnull MethodInvocation invocation) throws Throwable;
}

自动代理的实现方式

• 自动代理配置类

@Import(AspectJAutoProxyRegistrar.class)
public @interface EnableAspectJAutoProxy {

}

/*xxx: 动态代理的bean生成处理器*/
class AspectJAutoProxyRegistrar implements ImportBeanDefinitionRegistrar {

    @Override
    public void registerBeanDefinitions(
    			AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {

    		/*xxx: 这个方法在工厂中，注册了一个 AspectJ注解的自动代理生成器*/
    		AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry);

    		AnnotationAttributes enableAspectJAutoProxy =
    				AnnotationConfigUtils.attributesFor(importingClassMetadata, EnableAspectJAutoProxy.class);
    		/*xxx: 这里类似于工厂后置方法，根据注解，修改bean定义*/
    		if (enableAspectJAutoProxy != null) {
    			if (enableAspectJAutoProxy.getBoolean("proxyTargetClass")) {
    				AopConfigUtils.forceAutoProxyCreatorToUseClassProxying(registry);
    			}
    			if (enableAspectJAutoProxy.getBoolean("exposeProxy")) {
    				AopConfigUtils.forceAutoProxyCreatorToExposeProxy(registry);
    			}
    		}
    }
}

public abstract class AopConfigUtils {
    @Nullable
    public static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(BeanDefinitionRegistry registry) {
    		/*xxx： 在当前上下文中注入 AspectJAnnotation自动代理生成器*/
    		return registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry, null);
    }

    @Nullable
    public static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(
    			BeanDefinitionRegistry registry, @Nullable Object source) {

    		return registerOrEscalateApcAsRequired(AnnotationAwareAspectJAutoProxyCreator.class, registry, source);
    }

    //省略其它抽象...
}

• 自动代理生成器

public class AnnotationAwareAspectJAutoProxyCreator extends AspectJAwareAdvisorAutoProxyCreator {
    @Override
    protected void initBeanFactory(ConfigurableListableBeanFactory beanFactory) {
    		super.initBeanFactory(beanFactory);
    		if (this.aspectJAdvisorFactory == null) {
    			/*xxx: 实例化 反射切面Aspectj通知器工厂*/
    			this.aspectJAdvisorFactory = new ReflectiveAspectJAdvisorFactory(beanFactory);
    		}
    		/*xxx: 实例化 aspecjt通知器构造器*/
    		this.aspectJAdvisorsBuilder =
    				new BeanFactoryAspectJAdvisorsBuilderAdapter(beanFactory, this.aspectJAdvisorFactory);
    }

    //省略其它抽象...
}

public class AspectJAwareAdvisorAutoProxyCreator extends AbstractAdvisorAutoProxyCreator {

    //省略抽象...
}

public abstract class AbstractAdvisorAutoProxyCreator extends AbstractAutoProxyCreator {

    @Override
    @Nullable
    /*xxx: 为指定的bean,获取拦截切面 */
    protected Object[] getAdvicesAndAdvisorsForBean(
    			Class<?> beanClass, String beanName, @Nullable TargetSource targetSource) {

    		List<Advisor> advisors = findEligibleAdvisors(beanClass, beanName);
    		if (advisors.isEmpty()) {
    			return DO_NOT_PROXY;
    		}
    		return advisors.toArray();
    }

    protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
    		/*xxx: 获取所有的切面*/
    		List<Advisor> candidateAdvisors = findCandidateAdvisors();
    		/*xxx: 从所有的切面中进行筛选 */
    		List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
    		extendAdvisors(eligibleAdvisors);
    		if (!eligibleAdvisors.isEmpty()) {
    			eligibleAdvisors = sortAdvisors(eligibleAdvisors);
    		}
    		return eligibleAdvisors;
    }

    /*xxx: 获取匹配的拦截器 */
    protected List<Advisor> findAdvisorsThatCanApply(
    			List<Advisor> candidateAdvisors, Class<?> beanClass, String beanName) {

    		ProxyCreationContext.setCurrentProxiedBeanName(beanName);
    		try {
    			return AopUtils.findAdvisorsThatCanApply(candidateAdvisors, beanClass);
    		}
    		finally {
    			ProxyCreationContext.setCurrentProxiedBeanName(null);
    		}
    }

    //省略抽象...
}

/*xxx: 该类为aop内部使用提供支持*/
public abstract class AopUtils {

    /*xxx: 从给定的预备通知器中，筛选出满足切点的通知器*/
    public static List<Advisor> findAdvisorsThatCanApply(List<Advisor> candidateAdvisors, Class<?> clazz) {
    		if (candidateAdvisors.isEmpty()) {
    			return candidateAdvisors;
    		}
    		List<Advisor> eligibleAdvisors = new ArrayList<>();
    		for (Advisor candidate : candidateAdvisors) {
    			if (candidate instanceof IntroductionAdvisor && canApply(candidate, clazz)) {
    				eligibleAdvisors.add(candidate);
    			}
    		}
    		boolean hasIntroductions = !eligibleAdvisors.isEmpty();
    		for (Advisor candidate : candidateAdvisors) {
    			if (candidate instanceof IntroductionAdvisor) {
    				// already processed
    				continue;
    			}
    			if (canApply(candidate, clazz, hasIntroductions)) {
    				eligibleAdvisors.add(candidate);
    			}
    		}
    		return eligibleAdvisors;
    }

    /*xxx: 判断给定的切面是否匹配*/
    public static boolean canApply(Advisor advisor, Class<?> targetClass, boolean hasIntroductions) {
    		if (advisor instanceof IntroductionAdvisor) {
    			/*xxx: IntroductionAdvisor，根据类过滤器，进行匹配 */
    			return ((IntroductionAdvisor) advisor).getClassFilter().matches(targetClass);
    		}
    		else if (advisor instanceof PointcutAdvisor) {
    			PointcutAdvisor pca = (PointcutAdvisor) advisor;
    			/*xxx: PointcutAdvisor，检测目标类是否满足切点条件*/
    			return canApply(pca.getPointcut(), targetClass, hasIntroductions);
    		}
    		else {
    			// It doesn't have a pointcut so we assume it applies.
    			return true;
    		}
    }

    /*xxx: 检测目标类是否满足切点条件*/
    public static boolean canApply(Pointcut pc, Class<?> targetClass, boolean hasIntroductions) {
    		Assert.notNull(pc, "Pointcut must not be null");
    		/*xxx:首先会经过类过滤器进行过滤*/
    		if (!pc.getClassFilter().matches(targetClass)) {
    			return false;
    		}

    		MethodMatcher methodMatcher = pc.getMethodMatcher();
    		/*xxx:然后会通过切点的方法匹配策略 进行匹配*/
    		if (methodMatcher == MethodMatcher.TRUE) {
    			// No need to iterate the methods if we're matching any method anyway...
    			return true;
    		}

    		IntroductionAwareMethodMatcher introductionAwareMethodMatcher = null;
    		if (methodMatcher instanceof IntroductionAwareMethodMatcher) {
    			introductionAwareMethodMatcher = (IntroductionAwareMethodMatcher) methodMatcher;
    		}

    		Set<Class<?>> classes = new LinkedHashSet<>();
    		if (!Proxy.isProxyClass(targetClass)) {
    			/*xxx:目标对象没有采用jdk动态代理，则要么是cglib代理，要么没有代理，获取到没有代理的原始类*/
    			classes.add(ClassUtils.getUserClass(targetClass));
    		}
    		/*xxx: 获取到目标类的所有的超类接口*/
    		classes.addAll(ClassUtils.getAllInterfacesForClassAsSet(targetClass));

    		for (Class<?> clazz : classes) {
    			/*xxx:获取目标类即接口的方法，只要有一个方法满足切点条件，即视为切点可以匹配*/
    			Method[] methods = ReflectionUtils.getAllDeclaredMethods(clazz);
    			for (Method method : methods) {
    				/*xxx:对目标类和方法进行切点验证*/
    				if (introductionAwareMethodMatcher != null ?
    						introductionAwareMethodMatcher.matches(method, targetClass, hasIntroductions) :
    						methodMatcher.matches(method, targetClass)) {
    					return true;
    				}
    			}
    		}

    		return false;
    }

    //省略其它抽象...
}

public abstract class AbstractAutoProxyCreator extends ProxyProcessorSupport
		implements SmartInstantiationAwareBeanPostProcessor, BeanFactoryAware {

    @Override
    /*xxx: 前置处理前，就会进行动态代理类的分流*/
    public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) {
    		/*xxx:拿到 特定名称 和 特定类，组成key，标识一个唯一bean*/
    		Object cacheKey = getCacheKey(beanClass, beanName);

    		if (!StringUtils.hasLength(beanName) || !this.targetSourcedBeans.contains(beanName)) {
    			/*xxx: 如果已经生成了代理对象，则跳过 */
    			if (this.advisedBeans.containsKey(cacheKey)) {
    				return null;
    			}
    			/*xxx: 如果该bean是 Advice,Pointcut,Advisor,AopInfrastructureBean的子类，或者 这个bean是源实例，则记录该bean的情况*/
    			/*xxx: 即，动态代理类的配置类本身，是不需要被代理的*/
    			if (isInfrastructureClass(beanClass) || shouldSkip(beanClass, beanName)) {
    				this.advisedBeans.put(cacheKey, Boolean.FALSE);
    				return null;
    			}
    		}

    		// Create proxy here if we have a custom TargetSource.
    		// Suppresses unnecessary default instantiation of the target bean:
    		// The TargetSource will handle target instances in a custom fashion.
    		/*xxx: 根据是否有 TargetSource，来决定是否代理*/
    		TargetSource targetSource = getCustomTargetSource(beanClass, beanName);
    		if (targetSource != null) {
    			if (StringUtils.hasLength(beanName)) {
    				this.targetSourcedBeans.add(beanName);
    			}
    			/*xxx:获取当前bean的 切面通知和通知器，通过子类完成 */
    			Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(beanClass, beanName, targetSource);
    			Object proxy = createProxy(beanClass, beanName, specificInterceptors, targetSource);
    			/*xxx:记录已经创建了的代理对象 */
    			this.proxyTypes.put(cacheKey, proxy.getClass());
    			/*xxx: 然后将 生成的代理对象，返回给工厂，这就起到了移花接木的作用*/
    			return proxy;
    		}

    		return null;
    }

    @Override
    /*xxx: 正常情况下，都是通过初始化后置方法来完成动态代理的。  当前，实例化前置方法也可完成动态代理,是根据名称来进行判定是否需要代理的*/
    public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) {
    		/*xxx: 某个bean 已经实例化后*/
    		if (bean != null) {
    			Object cacheKey = getCacheKey(bean.getClass(), beanName);
    			/*xxx: 由于 智能实例化 处理了 循环引用的情况，这里需要在bean实例化后，继续解决是否需要自动生成代理的情况*/
    			if (this.earlyProxyReferences.remove(cacheKey) != bean) {
    				return wrapIfNecessary(bean, beanName, cacheKey);
    			}
    		}
    		return bean;
    }

    /*xxx: 通常情况下的动态代理 */
    protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
    		if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
    			return bean;
    		}
    		if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
    			return bean;
    		}
    		if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
    			this.advisedBeans.put(cacheKey, Boolean.FALSE);
    			return bean;
    		}

    		// Create proxy if we have advice.
    		/*xxx: 为指定类，获取匹配的 拦截切面，获取到则进行代理，否则不进行代理，在aop的环境，所有的类都会经历这个过程*/
    		Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
    		if (specificInterceptors != DO_NOT_PROXY) {
    			this.advisedBeans.put(cacheKey, Boolean.TRUE);
    			Object proxy = createProxy(
    					bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
    			this.proxyTypes.put(cacheKey, proxy.getClass());
    			return proxy;
    		}

    		this.advisedBeans.put(cacheKey, Boolean.FALSE);
    		return bean;
    }

    /*xxx: 创建实际的动态代理类 */
    protected Object createProxy(Class<?> beanClass, @Nullable String beanName,
    			@Nullable Object[] specificInterceptors, TargetSource targetSource) {

    		if (this.beanFactory instanceof ConfigurableListableBeanFactory) {
    			AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory) this.beanFactory, beanName, beanClass);
    		}
            /*xxx: 创建代理工厂*/
    		ProxyFactory proxyFactory = new ProxyFactory();
    		proxyFactory.copyFrom(this);

    		if (!proxyFactory.isProxyTargetClass()) {
    			if (shouldProxyTargetClass(beanClass, beanName)) {
    				proxyFactory.setProxyTargetClass(true);
    			}
    			else {
    				evaluateProxyInterfaces(beanClass, proxyFactory);
    			}
    		}

    		Advisor[] advisors = buildAdvisors(beanName, specificInterceptors);
    		proxyFactory.addAdvisors(advisors);
    		proxyFactory.setTargetSource(targetSource);
    		customizeProxyFactory(proxyFactory);

    		proxyFactory.setFrozen(this.freezeProxy);
    		if (advisorsPreFiltered()) {
    			proxyFactory.setPreFiltered(true);
    		}

    		return proxyFactory.getProxy(getProxyClassLoader());
    }
}

• 自动代理注解的处理解析

public class AnnotationAwareAspectJAutoProxyCreator extends AspectJAwareAdvisorAutoProxyCreator {
    @Override
    protected void initBeanFactory(ConfigurableListableBeanFactory beanFactory) {
    		super.initBeanFactory(beanFactory);
    		if (this.aspectJAdvisorFactory == null) {
    			/*xxx: 实例化 反射切面Aspectj通知器工厂*/
    			this.aspectJAdvisorFactory = new ReflectiveAspectJAdvisorFactory(beanFactory);
    		}
    		/*xxx: 实例化 aspecjt通知器构造器，用于解析动态代理注解*/
    		this.aspectJAdvisorsBuilder =
    				new BeanFactoryAspectJAdvisorsBuilderAdapter(beanFactory, this.aspectJAdvisorFactory);
    }

    @Override
    protected List<Advisor> findCandidateAdvisors() {
    		// Add all the Spring advisors found according to superclass rules.
    		List<Advisor> advisors = super.findCandidateAdvisors();
    		// Build Advisors for all AspectJ aspects in the bean factory.
    		if (this.aspectJAdvisorsBuilder != null) {
    			advisors.addAll(this.aspectJAdvisorsBuilder.buildAspectJAdvisors());
    		}
    		return advisors;
    }

    //省略其它抽象
}

private class BeanFactoryAspectJAdvisorsBuilderAdapter extends BeanFactoryAspectJAdvisorsBuilder {

		public BeanFactoryAspectJAdvisorsBuilderAdapter(
				ListableBeanFactory beanFactory, AspectJAdvisorFactory advisorFactory) {

			super(beanFactory, advisorFactory);
		}

		@Override
		protected boolean isEligibleBean(String beanName) {
			return AnnotationAwareAspectJAutoProxyCreator.this.isEligibleAspectBean(beanName);
		}
}

public class BeanFactoryAspectJAdvisorsBuilder {
    /*xxx: 构建通知器列表 */
    	public List<Advisor> buildAspectJAdvisors() {
    		List<String> aspectNames = this.aspectBeanNames;

    		if (aspectNames == null) {
    			synchronized (this) {
    				aspectNames = this.aspectBeanNames;
    				if (aspectNames == null) {
    					List<Advisor> advisors = new ArrayList<>();
    					aspectNames = new ArrayList<>();
    					String[] beanNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
    							this.beanFactory, Object.class, true, false);
    					for (String beanName : beanNames) {
    						if (!isEligibleBean(beanName)) {
    							continue;
    						}
    						// We must be careful not to instantiate beans eagerly as in this case they
    						// would be cached by the Spring container but would not have been weaved.
    						Class<?> beanType = this.beanFactory.getType(beanName, false);
    						if (beanType == null) {
    							continue;
    						}
    						/*xxx: 如果bean，被 @Aspect注解， 则是切面通知器 */
    						if (this.advisorFactory.isAspect(beanType)) {
    							aspectNames.add(beanName);
    							AspectMetadata amd = new AspectMetadata(beanType, beanName);
    							if (amd.getAjType().getPerClause().getKind() == PerClauseKind.SINGLETON) {
    								MetadataAwareAspectInstanceFactory factory =
    										new BeanFactoryAspectInstanceFactory(this.beanFactory, beanName);
    								List<Advisor> classAdvisors = this.advisorFactory.getAdvisors(factory);
    								if (this.beanFactory.isSingleton(beanName)) {
    									this.advisorsCache.put(beanName, classAdvisors);
    								}
    								else {
    									this.aspectFactoryCache.put(beanName, factory);
    								}
    								advisors.addAll(classAdvisors);
    							}
    							else {
    								// Per target or per this.
    								/*xxx: 原型模式的通知器 */
    								if (this.beanFactory.isSingleton(beanName)) {
    									throw new IllegalArgumentException("Bean with name '" + beanName +
    											"' is a singleton, but aspect instantiation model is not singleton");
    								}
    								MetadataAwareAspectInstanceFactory factory =
    										new PrototypeAspectInstanceFactory(this.beanFactory, beanName);
    								this.aspectFactoryCache.put(beanName, factory);
    								advisors.addAll(this.advisorFactory.getAdvisors(factory));
    							}
    						}
    					}
    					this.aspectBeanNames = aspectNames;
    					return advisors;
    				}
    			}
    		}

    		if (aspectNames.isEmpty()) {
    			return Collections.emptyList();
    		}
    		List<Advisor> advisors = new ArrayList<>();
    		for (String aspectName : aspectNames) {
    			List<Advisor> cachedAdvisors = this.advisorsCache.get(aspectName);
    			if (cachedAdvisors != null) {
    				advisors.addAll(cachedAdvisors);
    			}
    			else {
    				MetadataAwareAspectInstanceFactory factory = this.aspectFactoryCache.get(aspectName);
    				advisors.addAll(this.advisorFactory.getAdvisors(factory));
    			}
    		}
    		return advisors;
    }
    //省略其它抽象...
}

public interface AspectJAdvisorFactory {
    boolean isAspect(Class<?> clazz);

    List<Advisor> getAdvisors(MetadataAwareAspectInstanceFactory aspectInstanceFactory);

    //省略其它抽象...
}

public class ReflectiveAspectJAdvisorFactory extends AbstractAspectJAdvisorFactory implements Serializable {
    @Override
    /*xxx: 判断是否是切点*/
    public boolean isAspect(Class<?> clazz) {
    		return (hasAspectAnnotation(clazz) && !compiledByAjc(clazz));
    }

    private boolean hasAspectAnnotation(Class<?> clazz) {
    		return (AnnotationUtils.findAnnotation(clazz, Aspect.class) != null);
    }

    @Override
    /*xxx: 构建通知器*/
    public List<Advisor> getAdvisors(MetadataAwareAspectInstanceFactory aspectInstanceFactory) {
    		Class<?> aspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass();
    		String aspectName = aspectInstanceFactory.getAspectMetadata().getAspectName();
    		validate(aspectClass);

    		MetadataAwareAspectInstanceFactory lazySingletonAspectInstanceFactory =
    				new LazySingletonAspectInstanceFactoryDecorator(aspectInstanceFactory);

    		List<Advisor> advisors = new ArrayList<>();
    		for (Method method : getAdvisorMethods(aspectClass)) {
    			/*xxx: 遍历方法，并处理成  advisor */
    			Advisor advisor = getAdvisor(method, lazySingletonAspectInstanceFactory, 0, aspectName);
    			if (advisor != null) {
    				advisors.add(advisor);
    			}
    		}

    		// If it's a per target aspect, emit the dummy instantiating aspect.
    		if (!advisors.isEmpty() && lazySingletonAspectInstanceFactory.getAspectMetadata().isLazilyInstantiated()) {
    			Advisor instantiationAdvisor = new SyntheticInstantiationAdvisor(lazySingletonAspectInstanceFactory);
    			advisors.add(0, instantiationAdvisor);
    		}

    		// Find introduction fields.
    		for (Field field : aspectClass.getDeclaredFields()) {
    			Advisor advisor = getDeclareParentsAdvisor(field);
    			if (advisor != null) {
    				advisors.add(advisor);
    			}
    		}

    		return advisors;
    }

    /*xxx: 获取通知器方法 */
    private List<Method> getAdvisorMethods(Class<?> aspectClass) {
    		final List<Method> methods = new ArrayList<>();
    		ReflectionUtils.doWithMethods(aspectClass, method -> {
    			// Exclude pointcuts
    			/*xxx: 具有 @Pointcut的方法需要被排除 */
    			if (AnnotationUtils.getAnnotation(method, Pointcut.class) == null) {
    				methods.add(method);
    			}
    		}, ReflectionUtils.USER_DECLARED_METHODS);
    		if (methods.size() > 1) {
    			methods.sort(METHOD_COMPARATOR);
    		}
    		return methods;
    }

    @Override
    @Nullable
    public Advisor getAdvisor(Method candidateAdviceMethod, MetadataAwareAspectInstanceFactory aspectInstanceFactory,
    			int declarationOrderInAspect, String aspectName) {

    		validate(aspectInstanceFactory.getAspectMetadata().getAspectClass());

    		/*xxx: 获取切点表达式，如果具有切点表达式，才算合法的 通知器，否则不合法 */
    		AspectJExpressionPointcut expressionPointcut = getPointcut(
    				candidateAdviceMethod, aspectInstanceFactory.getAspectMetadata().getAspectClass());
    		if (expressionPointcut == null) {
    			return null;
    		}

    		return new InstantiationModelAwarePointcutAdvisorImpl(expressionPointcut, candidateAdviceMethod,
    				this, aspectInstanceFactory, declarationOrderInAspect, aspectName);
    }
}

aop联盟切面编程的定义

• 说明:
  • Advice,在springAop环境中，可以理解为 拦截器， 它通常与 PointCut联合使用
  • PointCut可以理解为 切点表达式

Spring框架实现的切面代理

cache缓存

• api使用说明

@Target({ElementType.TYPE, ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
@Inherited
@Documented
/*xxx: 放入缓存 */
public @interface CachePut {

    String key() default "";

    String keyGenerator() default "";

    String cacheManager() default "";
    //xxx:省略其它抽象...
}

@Target({ElementType.TYPE, ElementType.METHOD})
/*xxx: 允许缓存注解，使 被注解对象，成为 代理对象*/
public @interface Cacheable {
    @AliasFor("value")
    String[] cacheNames() default {};

    String key() default "";

    String cacheManager() default "";

    /*xxx: 这里可以配置 缓存命中的表达式 默认总是命中缓存*/
    String condition() default "";
}

/*xxx: 类级别的缓存默认配置*/
@Target(ElementType.TYPE)
public @interface CacheConfig {
    //xxx: 省略其它抽象...
}

@Target({ElementType.TYPE, ElementType.METHOD})
/*xxx: 缓存evict操作，移除操作*/
public @interface CacheEvict {
    //xxx: 省略其它抽象...
}

@Import(CachingConfigurationSelector.class)
/*xxx: 开启缓存注解*/
public @interface EnableCaching {
    /*xxx: 切面代理模式*/
    AdviceMode mode() default AdviceMode.PROXY;

    /*xxx: 省略其它抽象...*/
}

• 实现原理

@Import(CachingConfigurationSelector.class)
/*xxx: 缓存注解*/
public @interface EnableCaching {
    /*xxx: 切面代理模式*/
    AdviceMode mode() default AdviceMode.PROXY;

    /*xxx: 省略其它抽象...*/
}

/*xxx: 缓存机制 bean 引入配置 */
public class CachingConfigurationSelector extends AdviceModeImportSelector<EnableCaching> {
    @Override
    /*xxx: 根据注解配置的模式，决定引入的切面类 */
    public String[] selectImports(AdviceMode adviceMode) {
        switch (adviceMode) {
            case PROXY:
                /*xxx: 默认值*/
                return getProxyImports();
            case ASPECTJ:
                return getAspectJImports();
            default:
                return null;
        }
    }

    private String[] getProxyImports() {
        List<String> result = new ArrayList<>(3);
        result.add(AutoProxyRegistrar.class.getName());
        result.add(ProxyCachingConfiguration.class.getName());
        if (jsr107Present && jcacheImplPresent) {
            result.add(PROXY_JCACHE_CONFIGURATION_CLASS);
        }
        /*xxx: 此种模式，引入三个类，分别为： */
        /*xxx: org.springframework.context.annotation.AutoProxyRegistrar*/
        /*xxx: org.springframework.cache.annotation.ProxyCachingConfiguration*/
        /*xxx: org.springframework.cache.jcache.config.ProxyJCacheConfiguration*/
        return StringUtils.toStringArray(result);
    }

    //xxx: 省略其它抽象...
}

/*xxx: 自动代理注册器， 后续创建代理类，需要依赖此类*/
	/*xxx: 进行了上下文判断，如果已有该基础设施，则不再进行创建 */
public class AutoProxyRegistrar implements ImportBeanDefinitionRegistrar {
    @Override
    public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
        //xxx: 省略其它抽象...
        AopConfigUtils.registerAutoProxyCreatorIfNecessary(registry);
    }
}

@Configuration(proxyBeanMethods = false)
@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
/*xxx: 缓存基础设施配置 */
public class ProxyCachingConfiguration extends AbstractCachingConfiguration {

	@Bean(name = CacheManagementConfigUtils.CACHE_ADVISOR_BEAN_NAME)
	@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
	/*xxx: 缓存切面*/
	public BeanFactoryCacheOperationSourceAdvisor cacheAdvisor(
			CacheOperationSource cacheOperationSource, CacheInterceptor cacheInterceptor) {

		BeanFactoryCacheOperationSourceAdvisor advisor = new BeanFactoryCacheOperationSourceAdvisor();
		advisor.setCacheOperationSource(cacheOperationSource);
		advisor.setAdvice(cacheInterceptor);
		if (this.enableCaching != null) {
			advisor.setOrder(this.enableCaching.<Integer>getNumber("order"));
		}
		return advisor;
	}

	@Bean
	@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
	/*xxx: 缓存操作源*/
	public CacheOperationSource cacheOperationSource() {
		return new AnnotationCacheOperationSource();
	}

	@Bean
	@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
	/*xxx: 缓存拦截器 */
	public CacheInterceptor cacheInterceptor(CacheOperationSource cacheOperationSource) {
		CacheInterceptor interceptor = new CacheInterceptor();
		interceptor.configure(this.errorHandler, this.keyGenerator, this.cacheResolver, this.cacheManager);
		interceptor.setCacheOperationSource(cacheOperationSource);
		return interceptor;
	}

}

/*xxx: 缓存拦截器，最终作为一个 方法连接点 参与切面 */
public class CacheInterceptor extends CacheAspectSupport implements MethodInterceptor, Serializable {
    @Override
    @Nullable
    /*xxx: 缓存代理对象执行的方法 */
    public Object invoke(final MethodInvocation invocation) throws Throwable {
        /*xxx: 包装方法，用于向后执行*/
        CacheOperationInvoker aopAllianceInvoker = () -> {
            try {
                return invocation.proceed();
            }
            catch (Throwable ex) {
                throw new CacheOperationInvoker.ThrowableWrapper(ex);
            }
        };
        return execute(aopAllianceInvoker, target, method, invocation.getArguments());
        //xxx: 省略其它抽象...
    }
}

public abstract class CacheAspectSupport extends AbstractCacheInvoker
        implements BeanFactoryAware, InitializingBean, SmartInitializingSingleton {

    @Nullable
    protected Object execute(CacheOperationInvoker invoker, Object target, Method method, Object[] args) {
        /*xxx: 缓存操作源 */
        CacheOperationSource cacheOperationSource = getCacheOperationSource();
        if (cacheOperationSource != null) {
            /*xxx: 通过切面的操作，执行缓存操作*/
            Collection<CacheOperation> operations = cacheOperationSource.getCacheOperations(method, targetClass);
            if (!CollectionUtils.isEmpty(operations)) {
                /*xxx: 执行缓存操作 */
                return execute(invoker, method,
                        new CacheOperationContexts(operations, method, args, target, targetClass));
            }
        }
        //xxx: 省略其它抽象...
    }

    @Nullable
    /*xxx: 执行缓存操作  */
    private Object execute(final CacheOperationInvoker invoker, Method method, CacheOperationContexts contexts) {
        /*xxx: 缓存命中条件 */
        Cache.ValueWrapper cacheHit = findCachedItem(contexts.get(CacheableOperation.class));

        Object cacheValue;
        Object returnValue;

        if (cacheHit != null && !hasCachePut(contexts)) {
            // If there are no put requests, just use the cache hit
            cacheValue = cacheHit.get();
            /*xxx: 命中缓存，则直接返回缓存值*/
            returnValue = wrapCacheValue(method, cacheValue);
        }
        else {
            // Invoke the method if we don't have a cache hit
            /*xxx: 没有命中缓存值，则正常执行方法，并将返回值缓存*/
            returnValue = invokeOperation(invoker);
            cacheValue = unwrapReturnValue(returnValue);
        }
        //xxx: 省略其它抽象...

        //xxx: 此外，还处理了 @CachePut,CacheEvict 缓存造作

        return  returnValue;

    }
}

/*xxx: 缓存切面*/
public class BeanFactoryCacheOperationSourceAdvisor extends AbstractBeanFactoryPointcutAdvisor {
    /*xxx: 缓存代理 切入点*/
    private final CacheOperationSourcePointcut pointcut = new CacheOperationSourcePointcut() {
        @Override
        @Nullable
        protected CacheOperationSource getCacheOperationSource() {
            return cacheOperationSource;
        }
    };

    @Override
    public Pointcut getPointcut() {
        return this.pointcut;
    }
}

/*xxx: 缓存切入点  */
abstract class CacheOperationSourcePointcut extends StaticMethodMatcherPointcut implements Serializable {
    @Override
    /*xxx: 代理的条件为： 缓存操作源存在，且 当前要检查的对象存在 缓存操作，包括： 获取缓存，新增缓存，移除缓存，缓存分组四个注解*/
    /*xxx： 对于 @Caching @CachePut @CacheEvict @Cacheable 进行增强*/
    public boolean matches(Method method, Class<?> targetClass) {
        CacheOperationSource cas = getCacheOperationSource();
        return (cas != null && !CollectionUtils.isEmpty(cas.getCacheOperations(method, targetClass)));
    }
}

transactional事务

• api说明

@Target({ElementType.TYPE, ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
@Inherited
@Documented
/*xxx: 事务注解 */
public @interface Transactional {
    @AliasFor("value")
    /*xxx: 事务管理器 */
    String transactionManager() default "";

    /*xxx: 事务传播特性*/
    Propagation propagation() default Propagation.REQUIRED;

    /*xxx: 事务隔离级别*/
    Isolation isolation() default Isolation.DEFAULT;

    /*xxx: 事务超时时间 */
    int timeout() default TransactionDefinition.TIMEOUT_DEFAULT;

    /*xxx: 只读事务*/
    boolean readOnly() default false;

    /*xxx: 默认情况下，非受检异常 会回滚*/
    Class<? extends Throwable>[] rollbackFor() default {};
}

• 原理

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Import(TransactionManagementConfigurationSelector.class)
/*xxx: 允许事务特性*/
public @interface EnableTransactionManagement {

    /*xxx: 代理模式 */
    AdviceMode mode() default AdviceMode.PROXY;

}

/*xxx: 事务管理引入bean配置 */
public class TransactionManagementConfigurationSelector extends AdviceModeImportSelector<EnableTransactionManagement> {
    @Override
    protected String[] selectImports(AdviceMode adviceMode) {
        switch (adviceMode) {
            case PROXY:
                /*xxx: 默认值 */
                return new String[] {AutoProxyRegistrar.class.getName(),
                        ProxyTransactionManagementConfiguration.class.getName()};
            case ASPECTJ:
                return new String[] {determineTransactionAspectClass()};
            default:
                return null;
        }
    }

    //xxx: 省略其它抽象...
}

@Configuration(proxyBeanMethods = false)
@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
/*xxx: 事务代理配置 */
public class ProxyTransactionManagementConfiguration extends AbstractTransactionManagementConfiguration {
    @Bean(name = TransactionManagementConfigUtils.TRANSACTION_ADVISOR_BEAN_NAME)
    @Role(BeanDefinition.ROLE_INFRASTRUCTURE)
    /*xxx: 事务切面*/
    public BeanFactoryTransactionAttributeSourceAdvisor transactionAdvisor(
            TransactionAttributeSource transactionAttributeSource, TransactionInterceptor transactionInterceptor) {

        BeanFactoryTransactionAttributeSourceAdvisor advisor = new BeanFactoryTransactionAttributeSourceAdvisor();
        advisor.setTransactionAttributeSource(transactionAttributeSource);
        advisor.setAdvice(transactionInterceptor);
        if (this.enableTx != null) {
            advisor.setOrder(this.enableTx.<Integer>getNumber("order"));
        }
        return advisor;
    }

    @Bean
    @Role(BeanDefinition.ROLE_INFRASTRUCTURE)
    /*xxx: 事务属性源*/
    public TransactionAttributeSource transactionAttributeSource() {
        return new AnnotationTransactionAttributeSource();
    }

    @Bean
    @Role(BeanDefinition.ROLE_INFRASTRUCTURE)
    /*xxx: 事务拦截器 */
    public TransactionInterceptor transactionInterceptor(TransactionAttributeSource transactionAttributeSource) {
        TransactionInterceptor interceptor = new TransactionInterceptor();
        interceptor.setTransactionAttributeSource(transactionAttributeSource);
        if (this.txManager != null) {
            interceptor.setTransactionManager(this.txManager);
        }
        return interceptor;
    }
}

/*xxx: 事务拦截器 */
public class TransactionInterceptor extends TransactionAspectSupport implements MethodInterceptor, Serializable {
    @Override
    @Nullable
    /*xxx: 事务拦截器 执行的方法 */
    public Object invoke(MethodInvocation invocation) throws Throwable {

        Class<?> targetClass = (invocation.getThis() != null ? AopUtils.getTargetClass(invocation.getThis()) : null);

        return invokeWithinTransaction(invocation.getMethod(), targetClass, invocation::proceed);
    }
}

public abstract class TransactionAspectSupport implements BeanFactoryAware, InitializingBean {
    @Override
    public void afterPropertiesSet() {
        /*xxx: 事务管理器  是跟 数据源挂钩的，属于jdbc， 事务最开始也源于 数据库领域， 所以事务管理器是必备的*/
        //xxx： 省略其它抽象...
    }

    @Nullable
    /*xxx: 事务内执行 */
    protected Object invokeWithinTransaction(Method method, @Nullable Class<?> targetClass,
                                             final InvocationCallback invocation) throws Throwable {
        /*xxx: 获取事务管理器 */
        final TransactionManager tm = determineTransactionManager(txAttr);

        //xxx: 省略其它抽象...

        /*xxx: 新建事务信息， 会将其保存至线程上下文中 ，通过bindToThread()方法*/
        /*xxx: 新建事务信息，会进行 事务状态的传递 */
        /*xxx: 相当于 开启事务*/
        TransactionInfo txInfo = createTransactionIfNecessary(ptm, txAttr, joinpointIdentification);

        /*xxx: 返回值*/
        Object retVal;
        try {
            /*xxx: 执行业务方法*/
            retVal = invocation.proceedWithInvocation();
        }catch (Throwable ex) {
            /*xxx: 业务方法执行报错，回滚*/
            completeTransactionAfterThrowing(txInfo, ex);
            throw ex;
        }finally {
            /*xxx: 清除当前事务*/
            /*xxx: 类似于 当前事务出栈*/
            cleanupTransactionInfo(txInfo);
        }

        /*xxx: 提交事务*/
        commitTransactionAfterReturning(txInfo);
        /*xxx: 如果方法正常执行，则必提交事务成功*/
        return retVal;
    }

    /*xxx: 获取缓存操作上下文*/
    protected CacheOperationContext getOperationContext(
            CacheOperation operation, Method method, Object[] args, Object target, Class<?> targetClass) {

        /*xxx: 获取缓存操作元数据 信息*/
        CacheOperationMetadata metadata = getCacheOperationMetadata(operation, method, targetClass);
        return new CacheOperationContext(metadata, args, target);
    }

    /*xxx: 获取缓存操作元数据*/
    protected CacheOperationMetadata getCacheOperationMetadata(
            CacheOperation operation, Method method, Class<?> targetClass) {

        /*xxx: 获取缓存键*/
        CacheOperationCacheKey cacheKey = new CacheOperationCacheKey(operation, method, targetClass);
        /*xxx: 从缓存中获取元数据，没有则进行解析*/
        CacheOperationMetadata metadata = this.metadataCache.get(cacheKey);
        if (metadata == null) {
            KeyGenerator operationKeyGenerator;
            /*xxx: 键名生成器， 如果指定了就用指定的*/
            if (StringUtils.hasText(operation.getKeyGenerator())) {
                /*xxx: 从上下文中，获取键名生成器*/
                operationKeyGenerator = getBean(operation.getKeyGenerator(), KeyGenerator.class);
            }
            else {
                /*xxx: 没指定就用默认的 为SimpleKeyGenerator */
                operationKeyGenerator = getKeyGenerator();
            }
            CacheResolver operationCacheResolver;
            /*xxx: 如果配置了缓存解析器，则从上下文中获取缓存解析器*/
            if (StringUtils.hasText(operation.getCacheResolver())) {
                /*xxx: 从上下文中，获取缓存解析器*/
                operationCacheResolver = getBean(operation.getCacheResolver(), CacheResolver.class);
            }
            /*xxx: 如果配置了 缓存管理器，则从上下文中获取缓存管理器*/
            else if (StringUtils.hasText(operation.getCacheManager())) {
                /*xxx: 从上下文中获取缓存管理器，并将其封装为 缓存解析器进行返回*/
                CacheManager cacheManager = getBean(operation.getCacheManager(), CacheManager.class);
                operationCacheResolver = new SimpleCacheResolver(cacheManager);
            }
            //xxx: 使用cache时， CacheResolver 与 CacheManager至少具备一个环境， cacheResolver本质上也是CacheManager
            else {
                operationCacheResolver = getCacheResolver();
                Assert.state(operationCacheResolver != null, "No CacheResolver/CacheManager set");
            }

            metadata = new CacheOperationMetadata(operation, method, targetClass,
                    operationKeyGenerator, operationCacheResolver);
            this.metadataCache.put(cacheKey, metadata);
        }
        return metadata;
    }

    private class CacheOperationContexts {

        //xxx: 存储缓存相关操作
        private final MultiValueMap<Class<? extends CacheOperation>, CacheOperationContext> contexts;

        /*xxx: 缓存上下文*/
        public CacheOperationContexts(Collection<? extends CacheOperation> operations, Method method,
                                      Object[] args, Object target, Class<?> targetClass) {

            this.contexts = new LinkedMultiValueMap<>(operations.size());
            for (CacheOperation op : operations) {
                this.contexts.add(op.getClass(), getOperationContext(op, method, args, target, targetClass));
            }
        }




    }
}

/*xxx: 事务切面*/
public class BeanFactoryTransactionAttributeSourceAdvisor extends AbstractBeanFactoryPointcutAdvisor {
    private final TransactionAttributeSourcePointcut pointcut = new TransactionAttributeSourcePointcut() {
        @Override
        @Nullable
        protected TransactionAttributeSource getTransactionAttributeSource() {
            return transactionAttributeSource;
        }
    };

    @Override
    public Pointcut getPointcut() {
        return this.pointcut;
    }
}

/*xxx: 事务切点*/
abstract class TransactionAttributeSourcePointcut extends StaticMethodMatcherPointcut implements Serializable {

    @Override
    /*xxx: 类名，或者方法名  带有 @Transactional注解，将会被增强*/
    public boolean matches(Method method, Class<?> targetClass) {
        TransactionAttributeSource tas = getTransactionAttributeSource();
        return (tas == null || tas.getTransactionAttribute(method, targetClass) != null);
    }

}

schedule调度

• 原理

@Target({ElementType.METHOD, ElementType.ANNOTATION_TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Repeatable(Schedules.class)
/*xxx: 调度功能，注解在方法上 */
public @interface Scheduled {
    /*xxx: 调度表达式 */
    String cron() default "";
}

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Import(SchedulingConfiguration.class)
@Documented
/*xxx: 开启调度特性*/
public @interface EnableScheduling {

}

@Configuration(proxyBeanMethods = false)
@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
/*xxx: 调度配置 */
public class SchedulingConfiguration {

	@Bean(name = TaskManagementConfigUtils.SCHEDULED_ANNOTATION_PROCESSOR_BEAN_NAME)
	@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
	/*xxx: 注入 调度注解的 bean后置处理器*/
	public ScheduledAnnotationBeanPostProcessor scheduledAnnotationProcessor() {
		return new ScheduledAnnotationBeanPostProcessor();
	}

}

/*xxx: 调度注解 bean后置处理器 */
public class ScheduledAnnotationBeanPostProcessor
		implements ScheduledTaskHolder, MergedBeanDefinitionPostProcessor, DestructionAwareBeanPostProcessor,
		Ordered, EmbeddedValueResolverAware, BeanNameAware, BeanFactoryAware, ApplicationContextAware,
		SmartInitializingSingleton, ApplicationListener<ContextRefreshedEvent>, DisposableBean {

    /*xxx: 调度注解 bean后置处理器 */
    public class ScheduledAnnotationBeanPostProcessor
            implements ScheduledTaskHolder, MergedBeanDefinitionPostProcessor, DestructionAwareBeanPostProcessor,
            Ordered, EmbeddedValueResolverAware, BeanNameAware, BeanFactoryAware, ApplicationContextAware,
            SmartInitializingSingleton, ApplicationListener<ContextRefreshedEvent>, DisposableBean {
        @Override
        /*xxx: bean后置处理器，在bean初始化完毕后执行 */
        public Object postProcessAfterInitialization(Object bean, String beanName) {
            Class<?> targetClass = AopProxyUtils.ultimateTargetClass(bean);
            /*xxx: 对每个bean都进行注解检查，*/
            if (!this.nonAnnotatedClasses.contains(targetClass) &&
                    AnnotationUtils.isCandidateClass(targetClass, Arrays.asList(Scheduled.class, Schedules.class))) {
                /*xxx: 查找 调度注解，如果没找到，则记录下来，下一次不再判断*/
                if (annotatedMethods.isEmpty()) {
                    this.nonAnnotatedClasses.add(targetClass);
                }else {
                    /*xxx: 如果找到了注解，则进行处理，每个注解都会对应一个方法  */
                    /*xxx: 一个方法可能有多个注解 */
                    annotatedMethods.forEach((method, scheduledMethods) ->
                            /*xxx: 对调度方法进行处理 */
                            scheduledMethods.forEach(scheduled -> processScheduled(scheduled, method, bean)));
                }
            }
        }

        /*xxx: 处理调度(新建调度任务，并参与调度 )*/
        protected void processScheduled(Scheduled scheduled, Method method, Object bean) {
            /*xxx: 通过反射，构造执行任务*/
            Runnable runnable = createRunnable(bean, method);

            /*xxx: 构造cron任务，并参与调度。*/
            /*xxx: 调度可通过 ScheduleExecutorService */
            tasks.add(this.registrar.scheduleCronTask(new CronTask(runnable, new CronTrigger(cron, timeZone))));

            /*xxx: 最后将任务放入任务池进行存根 */
            synchronized (this.scheduledTasks) {
                Set<ScheduledTask> regTasks = this.scheduledTasks.computeIfAbsent(bean, key -> new LinkedHashSet<>(4));
                regTasks.addAll(tasks);
            }

            //xxx: 省略其它抽象...
        }
    }
}
